LIBS Imaging Module Installation and Operation Instructions
Installing from CD:
a. Insert the LIBS and Pixelink Software CD containing the OOIBase32. The CD interface
automatically launches.
b. Double-click on A6XX SERIES CameraKit R3.2.exe to install the appropriate drivers
and software.
c. Go to the FlashUpdate menu and double-click on the setup.exe file.
Installing from Web:
a. Go to http://www.oceanoptics.com/technical/softwaredownloads.asp .
b. Right-click on PixeLINK Software and select Save Target As… to download the
executable to your machine.
c. Double-click on the downloaded file. The installation process begins.
Installing the Hardware
The LIBS Imaging Module sits on top of the LIBS-SC. The laser mounts to the top of the LIBS
Imaging Module.
Attaching the LIBS Imaging Module to the LIBS Laser
► Procedure
Follow the steps below to attach the LIBS Imaging Module to the bottom of the laser:

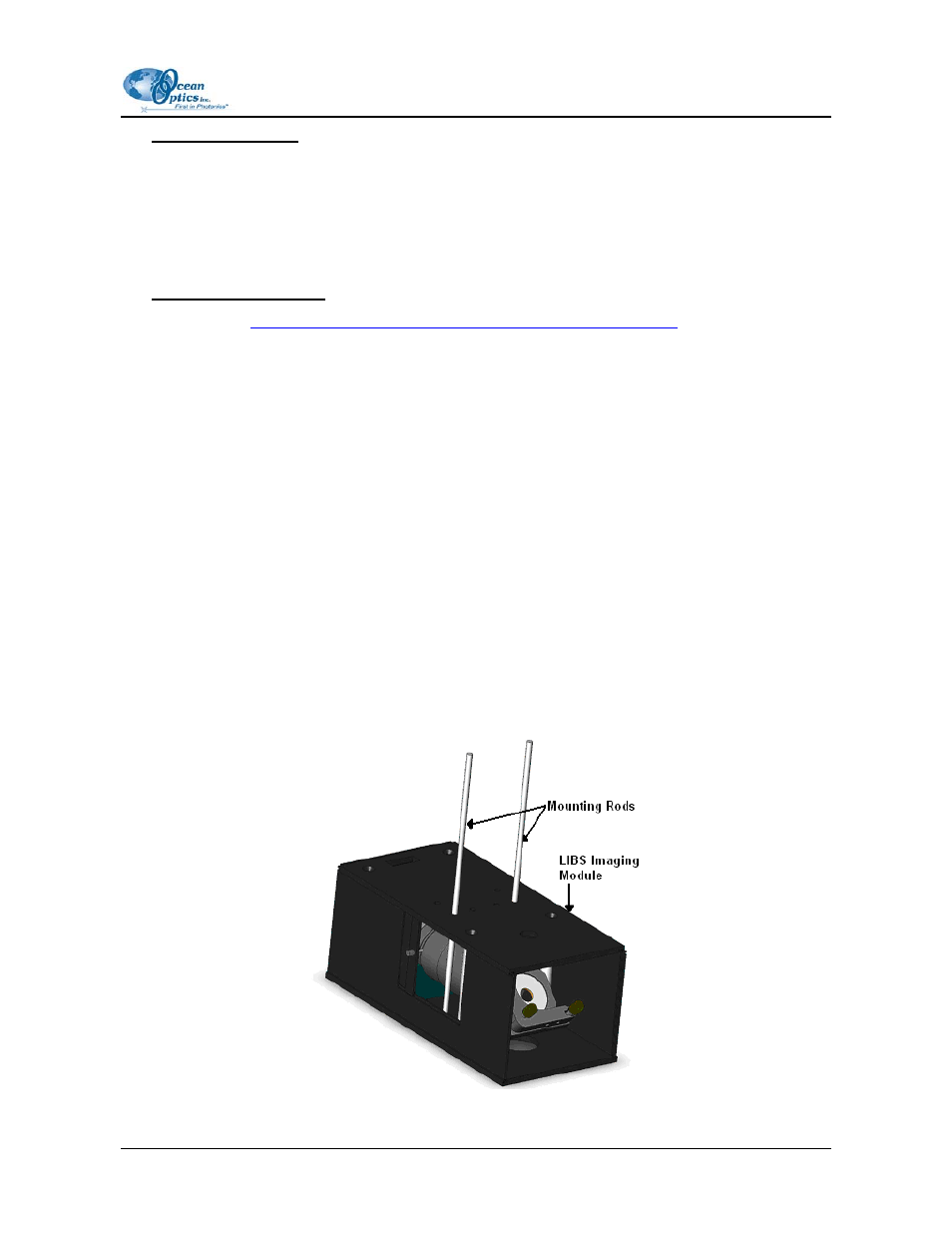

1. Insert the mounting rods into the holes in the top of the LIBS Imaging Module. These rods
should pass completely through the LIBS Imaging Module and enter the corresponding holes
in the LIBS Sample Chamber. This assures the alignment of the camera to the sample.
