Sample Measurements – Solids Without Containers

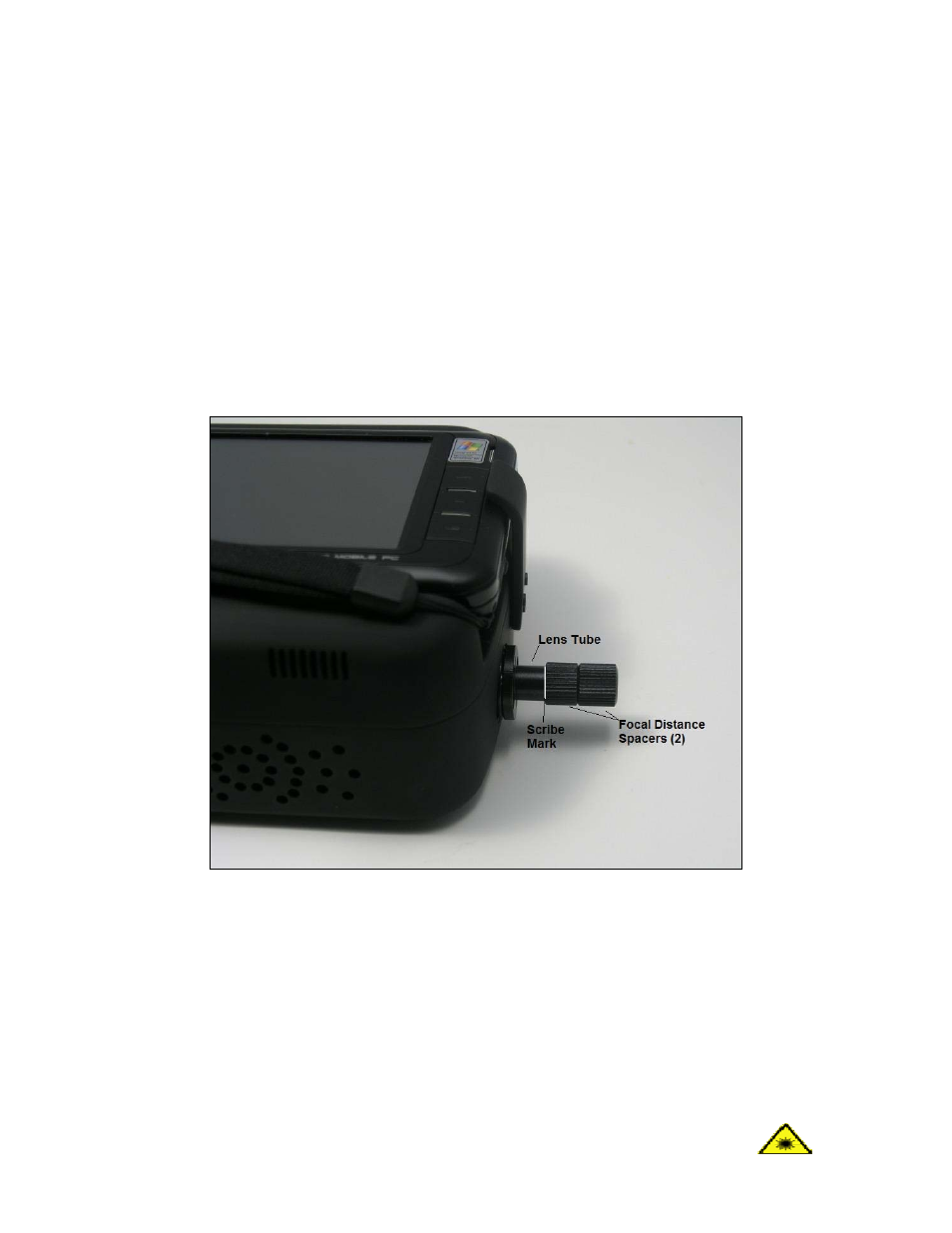

1. Set the focus of the Sample Measurement Probe.
a. Rotate the inner Focal Distance Spacer until aligned along the scribe mark
on the Lens Tube as shown.
b. Rotate the outer Focal Distance Spacer to contact the inner spacer.
2. Place the Sample Measurement Probe against the surface of the solid sample
under test.
3. Perform sample scan using RSIQ software.
