CLASS III b LASER PRODUCT
AVOID DIRECT EXPOSURE TO BEAM
Power Controls

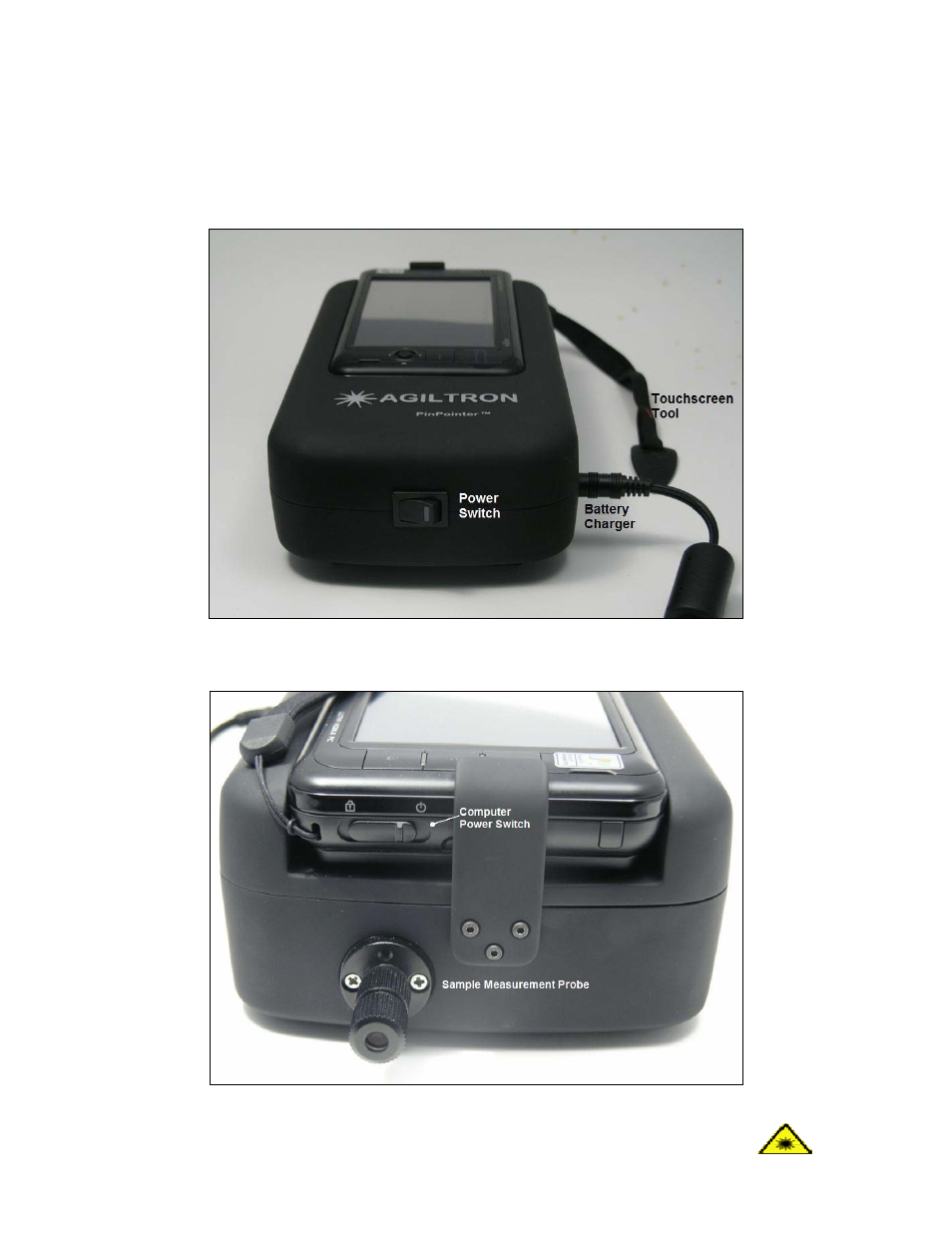

The rocker switch, as shown below, controls power to the main body of the PinPointer.
It illuminates when the battery is charged or the battery charger is attached to an AC
power source. The battery charger and touch screen paddle tool are also shown.
The mini computer has a separate power switch on the side near the sample
measurement probe.
