A: Bulb Replacement
6 000-10000-180-02-201401

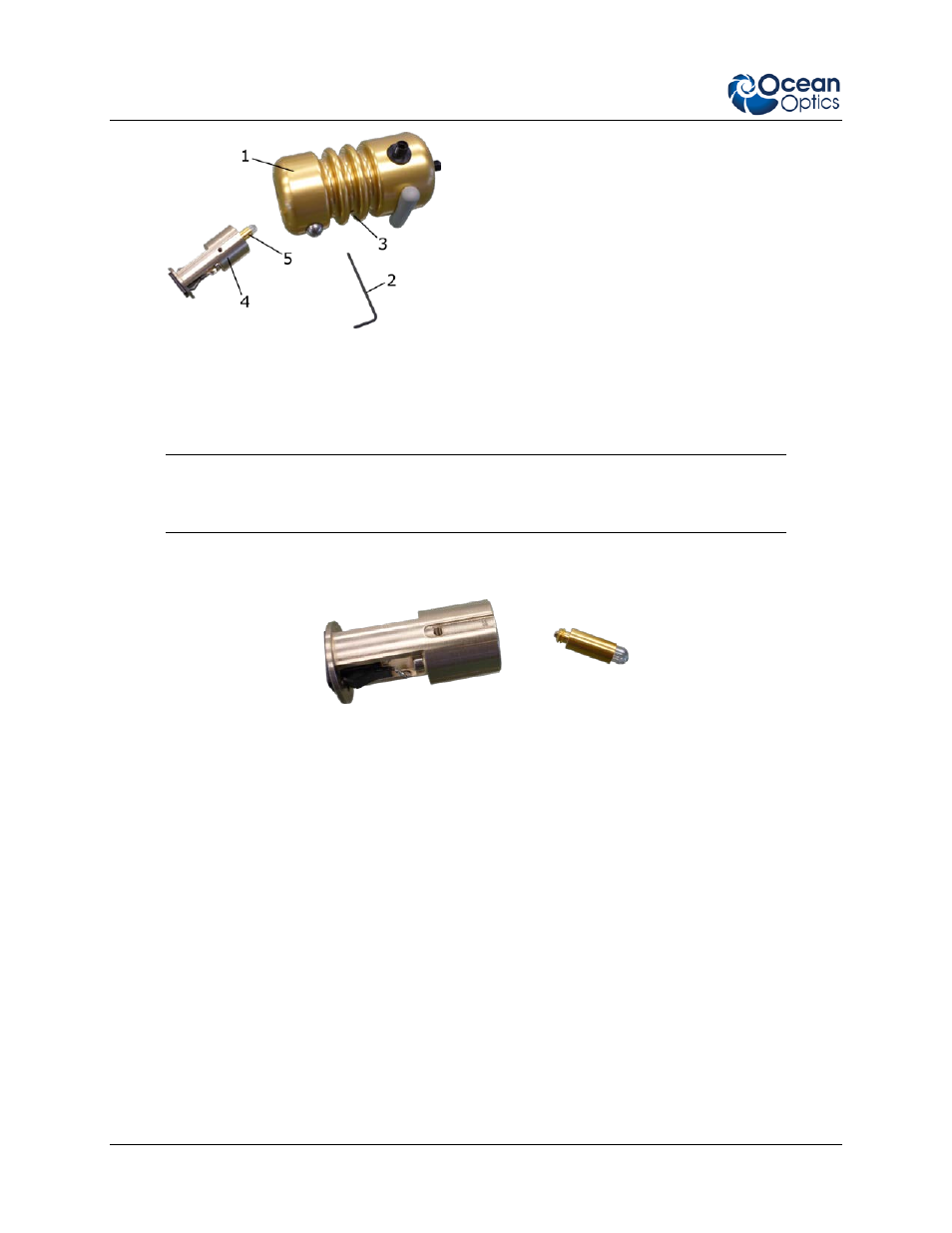

1 – ecoVis housing
2 – Allen wrench SW 1.3
3 – stud screw
4 – Cylinder with DC socket
5 – bulb with thread (ECOVIS-B)
3. On the back of the ecoVis, pull out the cylinder with the DC socket and the bulb.
Note
The cylinder will slide out by itself if you loosened the screw and tilt the ecoVis.
4. To remove the bulb from the cylinder, unscrew out the bulb in a counter-clockwise direction.
5. Insert the new bulb and screw it in in a clockwise direction into the cylinder.
6. Push in the cylinder back in the housing. There is a furrow on the cylinder for the right
orientation while pushing the cylinder in.
7. Affix the cylinder by screwing in the stud screw.
