Page 4

ENGLISH

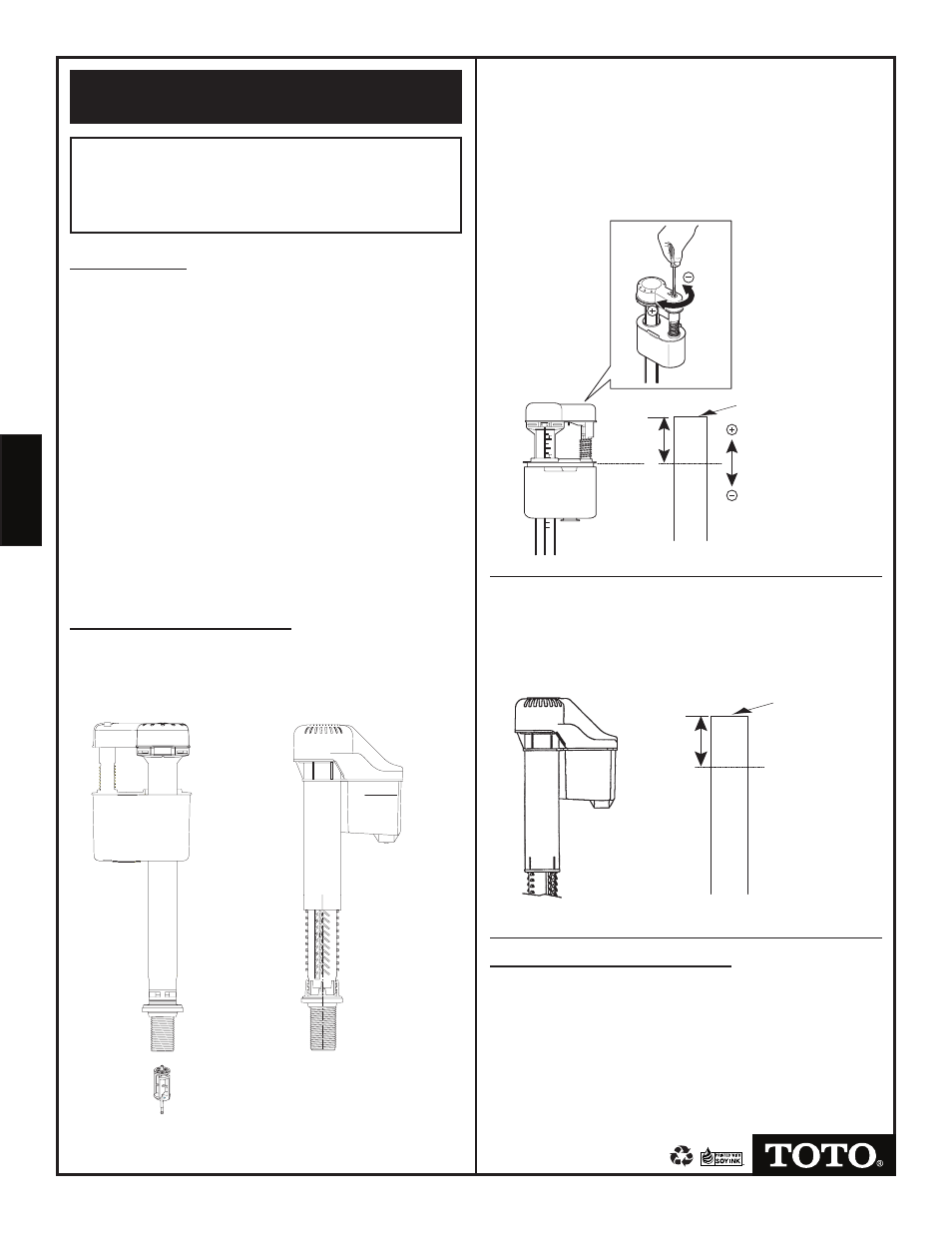

TOILET TANK FILL VALVE INSTRUCTIONS

Cyclone

/ G-Max

/ E-Max

/ Power Gravity

WARNING! DO NOT USE IN-TANK BOWLCLEANERS

The use of high concentration of chlorine or chlorine-related products can

seriously damage fittings in the tank. This damage can cause leakage and

property damage. TOTO shall not be responsible or liable for any tank fit-

ting failure or damage caused by the use of in-tank bowl cleaners.

INSTALLATION

1. Shut OFF water supply to toilet.

2. Flush toilet and remove remaining water from tank with a sponge.

3. Remove the water supply connection at the fill valve.

4. Remove old fill valve and use damp sponge to clean hole in tank.

5. Place new fill valve inside tank hole.

6. Thread mounting nut onto fill valve shank and tighten nut.

Note: DO NOTOVERTIGHTEN. Be sure to install fill valve in a

position that does not interfer with the trip lever operation.

7. Connect water supply to fill valve shank and hand tighten only.

Note: DO NOTOVERTIGHTEN. These are plastic parts.

Never use pipe dope on any water supply connection.

8. Attach refill tube to fill valve nipple and clip other end of refill tube

to the overflow pipe.

9. Turn water supply ON and check for leaks outside the tank.

Note: As water fills the tank, water is also directed into the over-

flow tube via the refill tube. This additional flow of water is

critical to refilling your toilet’s bowl. Once the water stops

filling the tank, some residual drops of water may drip from

the fill valve. This is NORMAL as these drops will subside.

WATER LEVEL ADJUSTMENT

Depending on the manufacturing plant, you may have one of two of

the following fill valves.

WATER
LEVEL

Type A

Type B

For Type A fill valve, refer to water level (WL) setting

marked on the inner wall of the tank. Allow the water to fill

the tank. Turn the adjustment screw clockwise in the (+) direc-

tion to increase the water level height. Turn the adjustment

screw counter-clockwise in the (-) direction to decrease the

water level height. Flush the toilet to verify the correct water

level. Adjust as necessary.

Top of Overflow Tube

For Type B fill valve, there are no water level adjustments.

THE FILL VALVE HAS BEEN PRESET AT THE FACTORY.

Top of Overflow Tube

OPERATION (NOTE TO OWNER)

You have chosen a TOTO product that is superior in quality and

craftsmanship. Our toilet flushing systems are the best in the indus-

try. To insure that your toilet is performing correctly, always flush the

toilet with a full stroke of the trip lever to activate the flushing cycle.

A full stroke will guarantee that you are flushing with the power of a

TOTO.
If you need advice on your installation, feel free to contact one of our

Technical Support members at the number below.

TOTO USA, Inc. 1155 Southern Rd, Morrow, GA 30260

Tel.: (888) 295-8134 • Fax (800) 699-4889
