Installation instructions

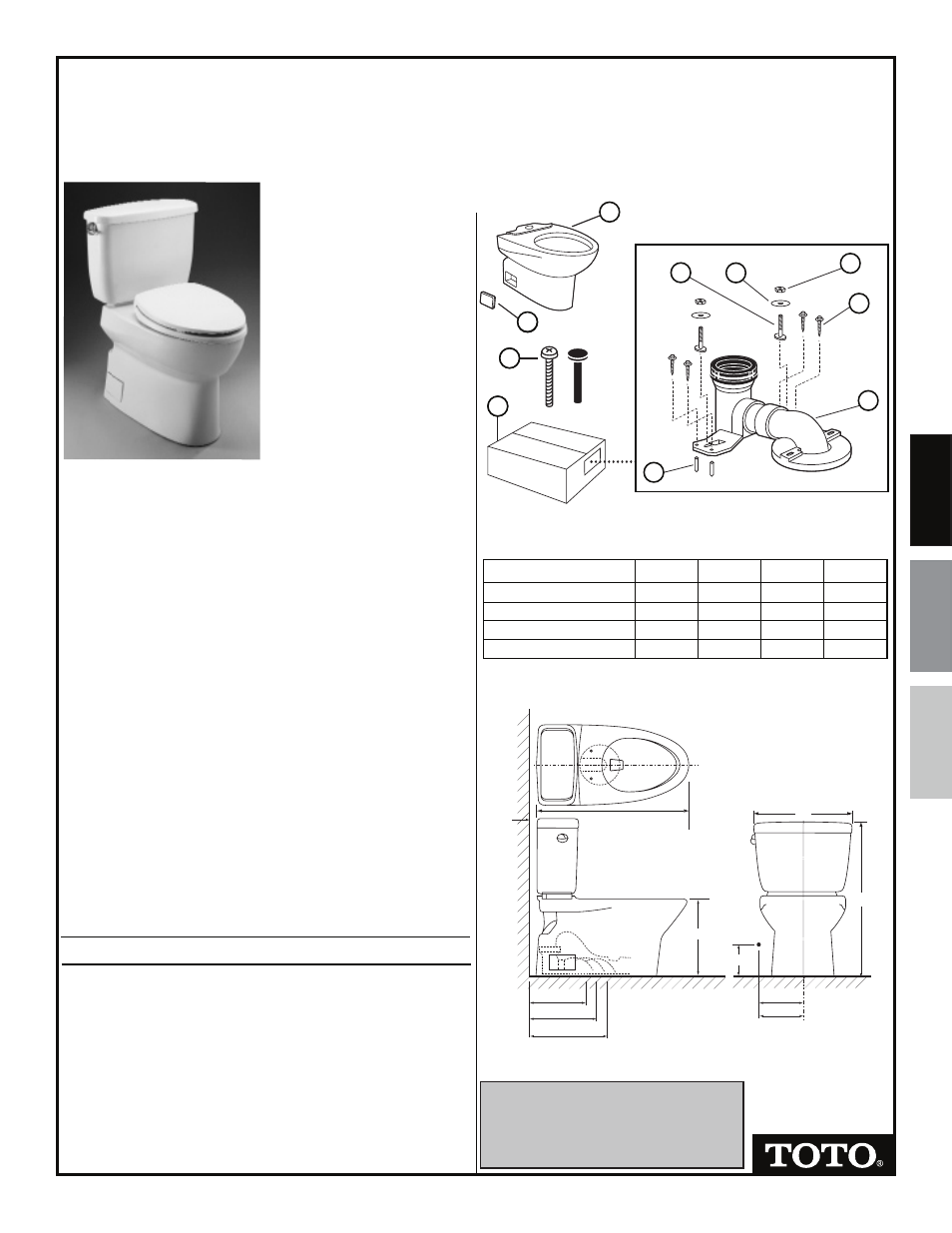

INSTALLATION INSTRUCTIONS
0GU011Z-4
12 / 2009
Read these instructions
thoroughly before begin-
ning work.
You have purchased one
the best working toilets
available today, backed
by TOTO’s worldwide
finest reputation.
Please leave instructions for customers. These in-
struction contain maintenance and warranty infor-
mation.
1
ENGLISH
ESP
AÑOL
FRANÇAIS
1
2
a
b
c
d
f
e
5
4
3
Uni Fit Rough-In
COMMON TOOLS NEEDED:
• 12” pipe wrench
• 10” adjustable wrench
• Carpenter’s Level
• Tape Measure
• Plier
• Screwdriver
• Putty Knife
• Drill
•
11
/
64
" drill bit for wood floor installation
•
5
/
16
" drill bit for concrete/tile installation
MATERIALS REQUIRED:
Flexible Supply Tube / Connector
Supply Stop Valve
Mounting (T) Bolts & Nuts (2pc)
Wax Ring / Seal
Package Contents:
No. Item
Quantity
1.
Vitreous China Bowl w/ Lid
1
2.
Cover Plate (NOT for CST794SF/CST794EF) 2
3.
Top Mount Bolt Set (for seat)
1
4.
Uni Fit Rough-In
1
4a. Toilet Mounting Bolt (T-Bolt)
2
4b. T-Bolt Washer
2
4c. T-Bolt Nut
2
4d. Mounting Screw w/ washer
4
4e. Anchor
4
4f. PVC Outlet Connection
1
Model
CST474CEF(G)
CST764S(G)
CST774S(G)
CST794(S)(E)F
A
28-⅜"
28"
28-¾"
28"
B
16-⅛"
15"
15"
16-⅛"
C
30"
28-⅞"
28-¾"
32"
D
16-½"
19-¾"
21-⅝"
17-⅞"
14"
B
12"
10"
A
3/4"
D
C
4-1/2" *
8" *
10" *
* Check for correct dimension
NOTE: Water supply rough-in
significantly wider than standard 5"
rough-in. Consult your builder or
contractor.
NOTE: Due to the powerful performance of our
Cyclone, G-Max, E-Max, and Power Gravity flushing
systems, they are not specified for BACK-TO BACK in-
stallations. The “only” means of installing these toilets
in a BACK-TO-BACK situation is when the toilet drain
connections incorporate a WYE fitting. Please contact
your builder or contractor prior to this installation.
NOTE: Compensate
accordingly for any
baseboard blocks.
(Only for CST794)
2
1
3
4
For Toilet CST474CEF(G) / CST764S(G) / CST774S /
CST794SF / CST794EF
A
4"
D
