ENGLISH
ENGLISH
FAUCET FUNCTIONS
15
16
17
18
19
20

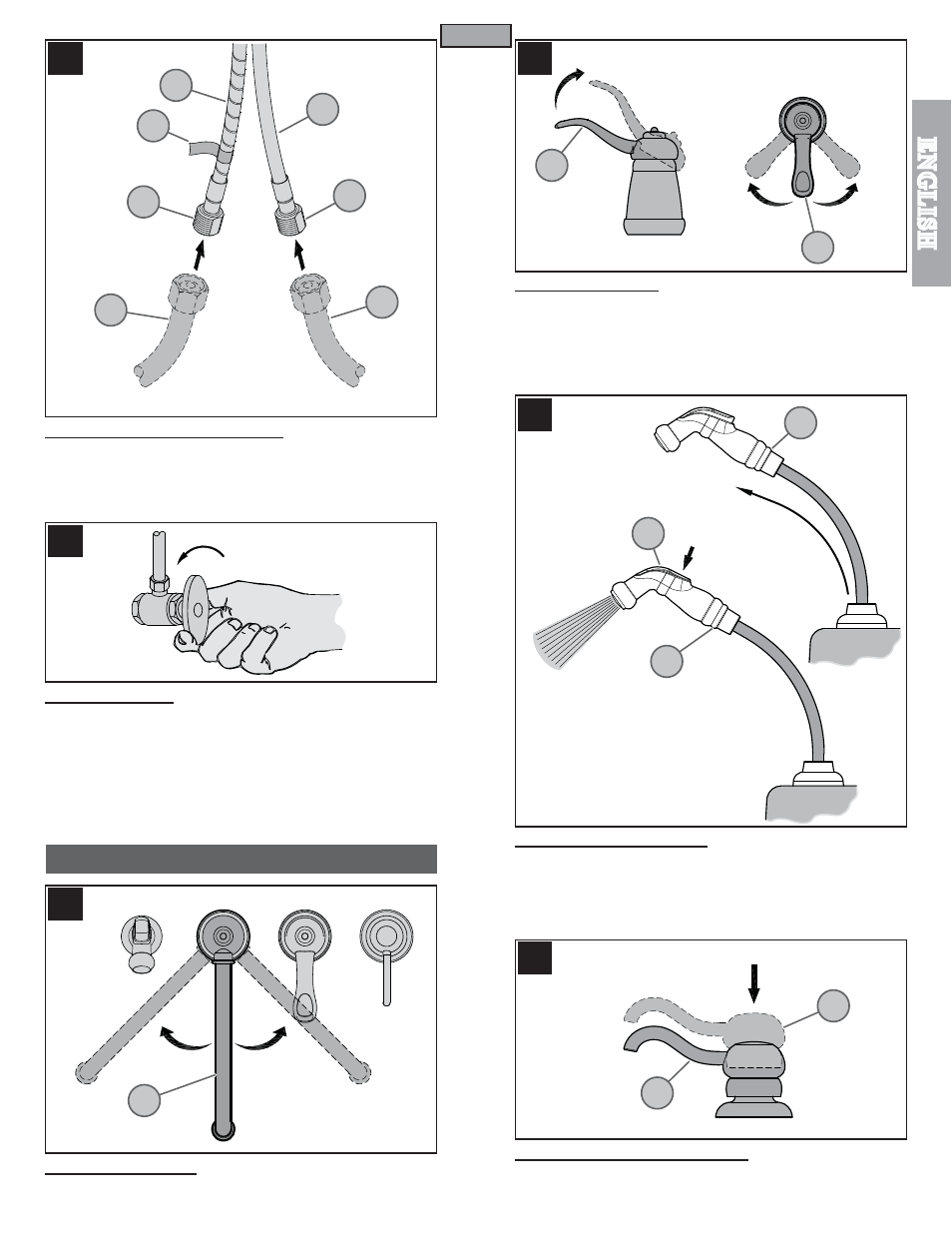

15 WATER SUPPLY CONNECTIONS
Gently separate hot and cold Supply Tubes (15A), approximately three inches apart.
Connect water Supply Lines (15C) to Faucet Inlets (15B). Hot water supply line goes to hot
inlet fitting indicated by red tag (15D). (Supply lines not included). Follow manufacturer’s
instructions when installing supply lines.
16 UNIT START UP
Turn on hot and cold water supplies, and check for leaks above and below the sink.
Note: After installation is complete, flush faucet (see step 21).
17 SPOUT FUNCTION
Spout (17A) can be rotated around the Faucet Body in any direction.
18 VALVE FUNCTION
By lifting Lever Handle (18A) up, the valve will be activated allowing water to flow. The
water flow will increase by continuing to lift up Lever Handle (18A). By rotating Lever
Handle (18A) counterclockwise, the water temperature will decreased to fully cold. By
rotating Lever Handle (18A) clockwise, the water temperature will increased to fully
hot.
19 SIDE SPRAY OPERATION
Side Spray (19A) can be pulled out to spray water in any direction. To activate the Side
Spray (19A), press Toggle Button (19B) located on the back of Side Spray (19A).
20 SOAP DISPENSER OPERATION
To activate Soap Dispenser (20A), press Dispenser Head (20B) to dispense liquid
soap.
5
HOT COLD
ON
HOT COLD
15C
15C
17A
15B
15A
15D
15B
15A
18A
18A
19A
19B
19A
20A
20B
