ENGLISH

ENGLISH

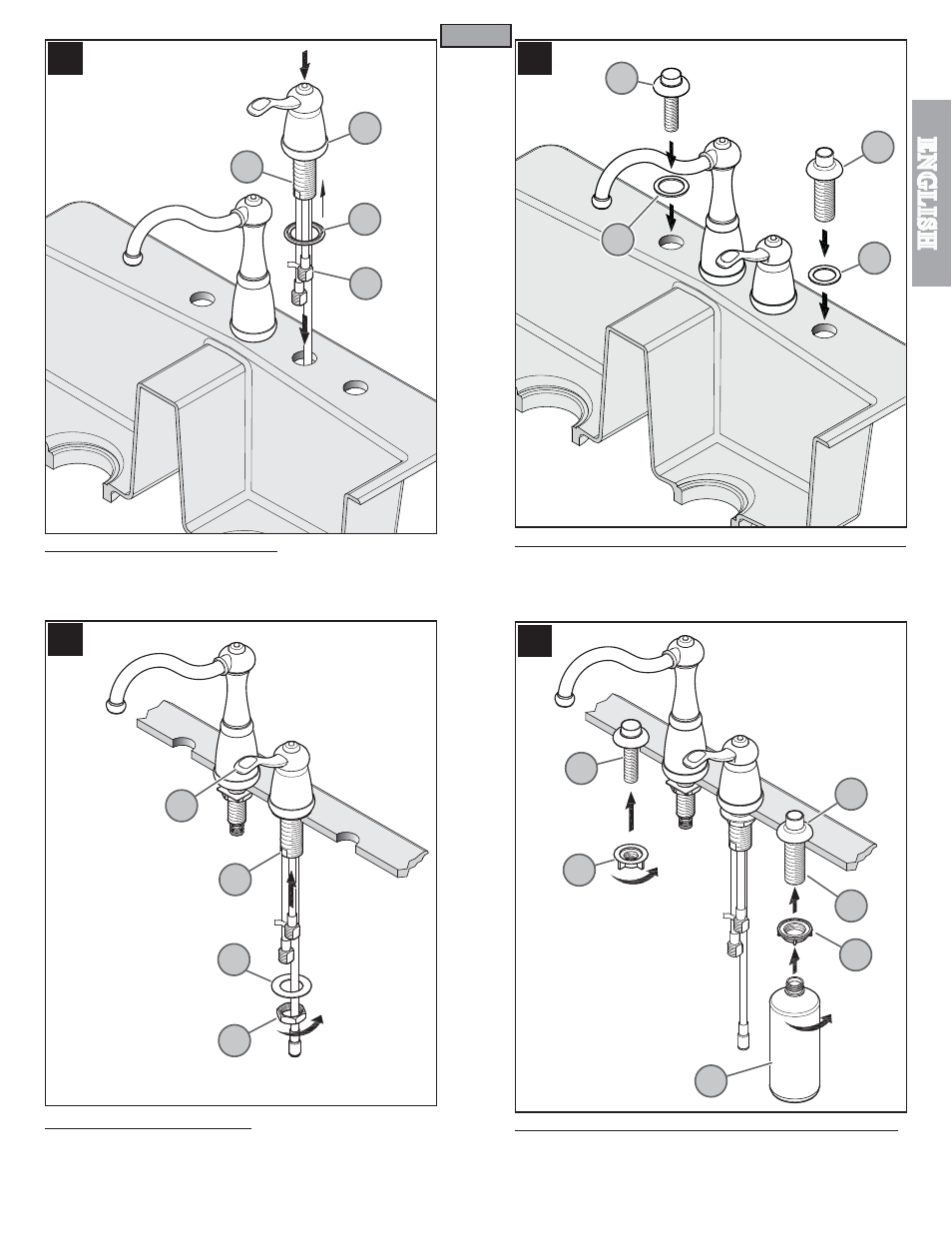

7 CONTROL BODY INSTALLATION

Apply plumber’s putty into groove on bottom of Gasket (7A) per manufacturer’s
recommendations. Place Gasket (7A) under base of Control Body (7B). From above sink,
insert Threaded Shank (7C) and Flexible Tubing (7D) through side hole of sink.

8 SECURING CONTROL BODY

From underneath sink, place Washer (8A), and Locknut (8B) onto Mounting Shank (8C).
Make sure Handle (8D) is facing forward and it swings equally in both directions. Tighten
Locknut (8B) ﬁrmly to Shank (8C).

Caution: Do not over tighten!

9 HOSE GUIDE & SOAP DISPENSER GUIDE INSTALLATION

Insert Hose Guide Shank (9A) through Flange Gasket (9B) and insert Soap Dispenser
Guide Shank (9C) through Foam Gasket (9D) and into the sink holes. If desired, place
a small bead of plumber’s putty to the underside of Flanges (9A & 9C). (Both Hose Guide
and Soap Dispenser Guide can be placed in either hole).

10 SECURING HOSE GUIDE & SOAP DISPENSER GUIDE

From underneath sink, secure Hose Guide (10A) and Soap Dispenser Guide (10B) by
screwing Plastic Locknuts (10C) and (10D). Thread on Bottle (10E) to Soap Dispenser
Shank (10F). Hand tighten.

Caution: do not over tighten!

10C

10A

10B

10D

10E

10F
