CAUTION: Maintenance
DISASSEMBLY
1. Replacement parts may be available at the store where you purchased
your faucet.
2. When replacement parts are not available, please write or call Price
Pfi ster Consumer Service.
3. Always turn off water and relieve pressure before working on your
faucet.
NOTE: Trim Care
Cleaning Instructions:
For all Handles and decorative fi nishes, use only a soft damp
cloth to clean and shine. Use of polish, detergents, abrasive
cleaners, organic solvents or acid may cause damage. Use of
other than a soft damp cloth will nullify our warranty!
Special Trim:
Trim products which contain Porcelain or other similar
substance are not acceptable for public areas or Commercial
use. Installation of Said Trim is at Users Risk!
1–800–PFAUCET (1–800–732–8238)
For Toll-Free Pfaucet information call
1–800–PFAUCET (1–800–732–8238)
or visit www.pricepfi ster.com
• Installation Support
• Care and Warranty Information

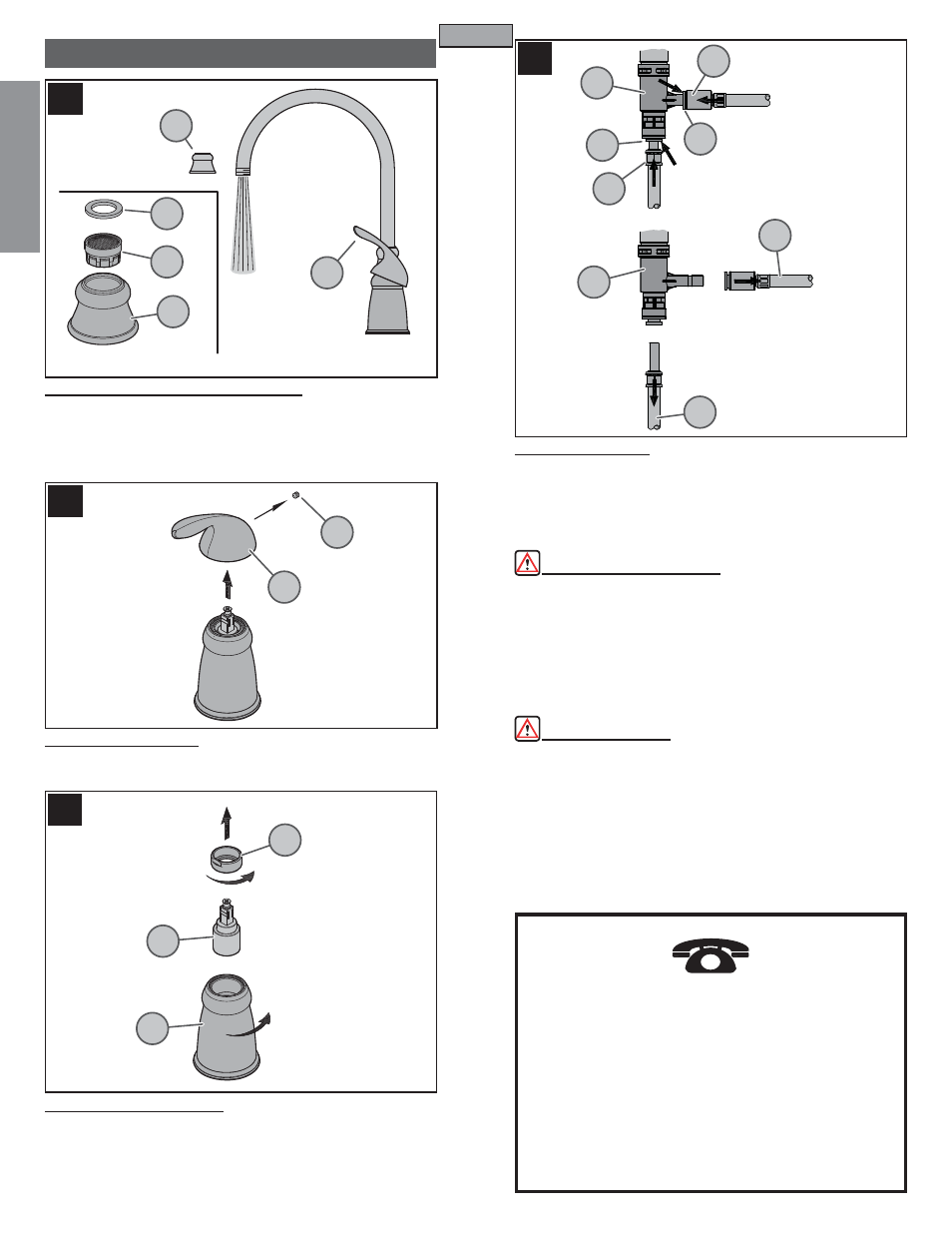

21 FLUSHING & AERATOR CLEANING
After installation is complete, remove Aerator Housing (21A). Turn Valve (21B)
on and allow both hot and cold water to run for at least one minute each. While
water is running, check for leaks. To clean the aerator, disassemble Aerator
Housing (21A) by separating the Aerator Shell (21C), Basket (21D), and Washer
(21E). Once parts have been cleaned, reassemble by reversing steps.
22 HANDLE REMOVAL
Using a 3 /
32
” Allen wrench, loosen Set Screw (22A) and remove Handle
(22B).
23 CARTRIDGE REMOVAL
Turn off water supplies and relieve pressure before working on your
faucet.
Remove handle (see fi gure 22). Remove Body (23C) by hand. Using pliers,
unscrew the retainer ring (23A). Carefully remove the Cartridge (23B) by pulling
it straight up and out. Reassemble valve by reversing steps.
24 HOSE REMOVAL
Turn off water supplies and relieve pressure.
To remove hose attachments from Diverter Tee (24F), push on Connection
Fittings (24A & 24B). Holding Plastic Collet (24C) in place, pull out on Connection
Fittings (24A & 24B) until Hoses (24D & 24E) are free.
