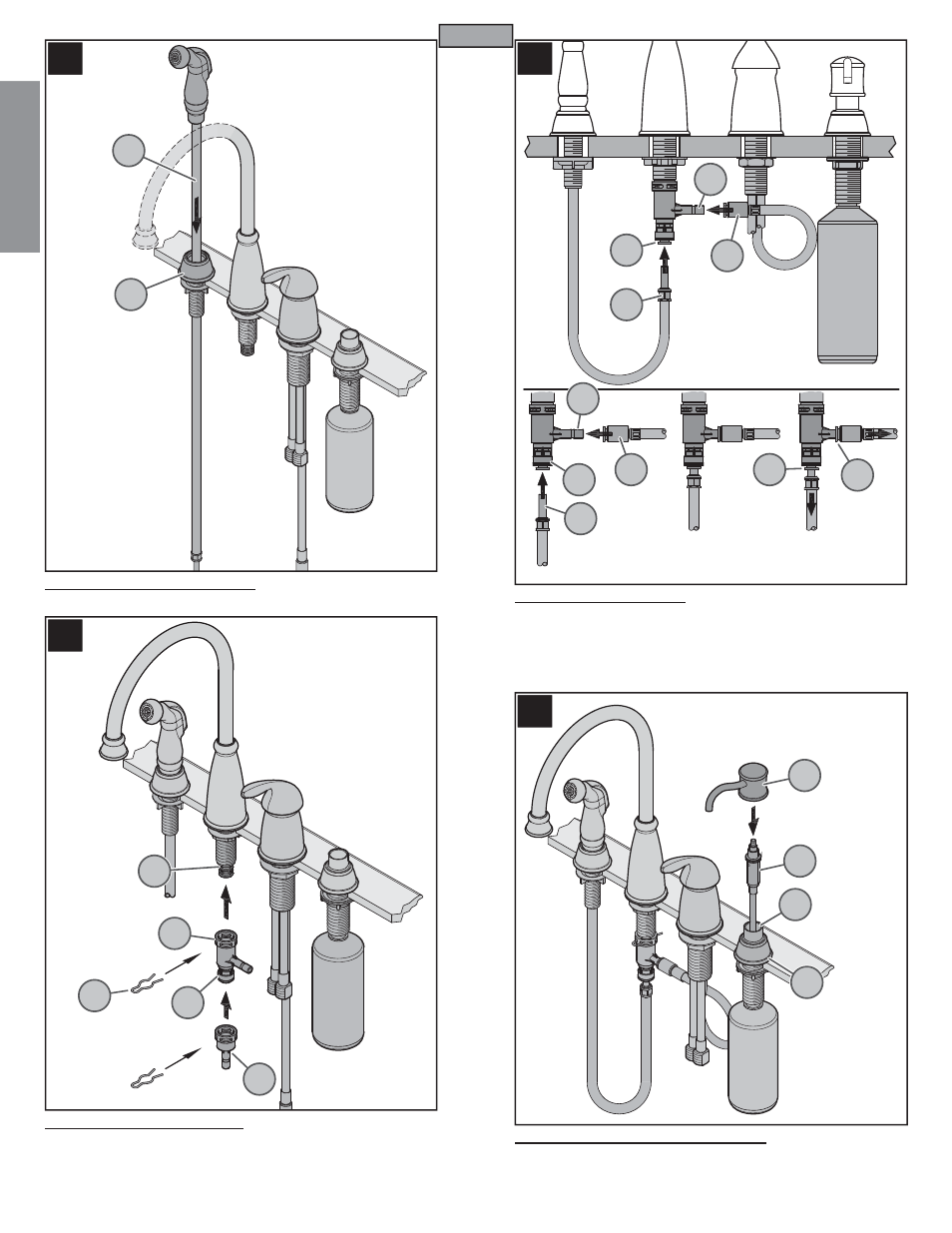

11 SIDE SPRAY INSTALLATION
Insert Side Spray Hose (11A) through Hose Guide (11B).
12 DIVERTER INSTALLATION
Push Diverter Tee (12A) all the way up until completely seated onto Mounting
Shank (12B). Slide Clip (12C) into Diverter Holes (12D), to secure unit.
When installing without side spray, a One Way Connector (12E) 970-037 must
be used and is to be ordered separately.
13 HOSE ATTACHMENTS
From underneath sink, push Outlet Hose Fitting (13A), fi rmly onto the Diverter
Receiving Tube (13B) until unable to push any further. Connect Spray Hose
Fitting (13C) into Diverter Outlet Collet (13D) until unable to push any further.
Pull on connection Fittings (13A & 13C). If the Fittings (13A & 13C) and the Inner
Collets (13E) separate slightly but do not pull off, the connections are secure.
14 SOAP DISPENSER INSTALLATION
Pour in liquid soap (not included) into Guide Orifi ce (14A). Insert Pump
Mechanism (14B) into Soap Dispenser Guide (14C). Install Dispenser Head
(14D) by pushing fi rmly onto Pump Mechanism (14B).
4
14A
13C
11A
11B
12D
12B
12C
12A
12E
13D
13B
13E
13E
13A
13B
13C
13D
13A
14B
14D
14C
