Thank you for purchasing this Price Pfi ster product. All Price Pfi ster products are carefully engineered, and factory tested to
provide long trouble-free use under normal conditions. This valve is easy to install using basic tools and our easy to follow
illustrated instructions. If you have any questions regarding this product, call 1-800-Pfaucet (1-800-732-8238).
1 BEFORE PROCEEDING
WARNING: Read all the instructions completely before proceeding. Price
Pfi ster recommends calling a professional if you are uncertain about installing
this product!
This product should be installed in accordance with all local and state plumbing and
building codes.

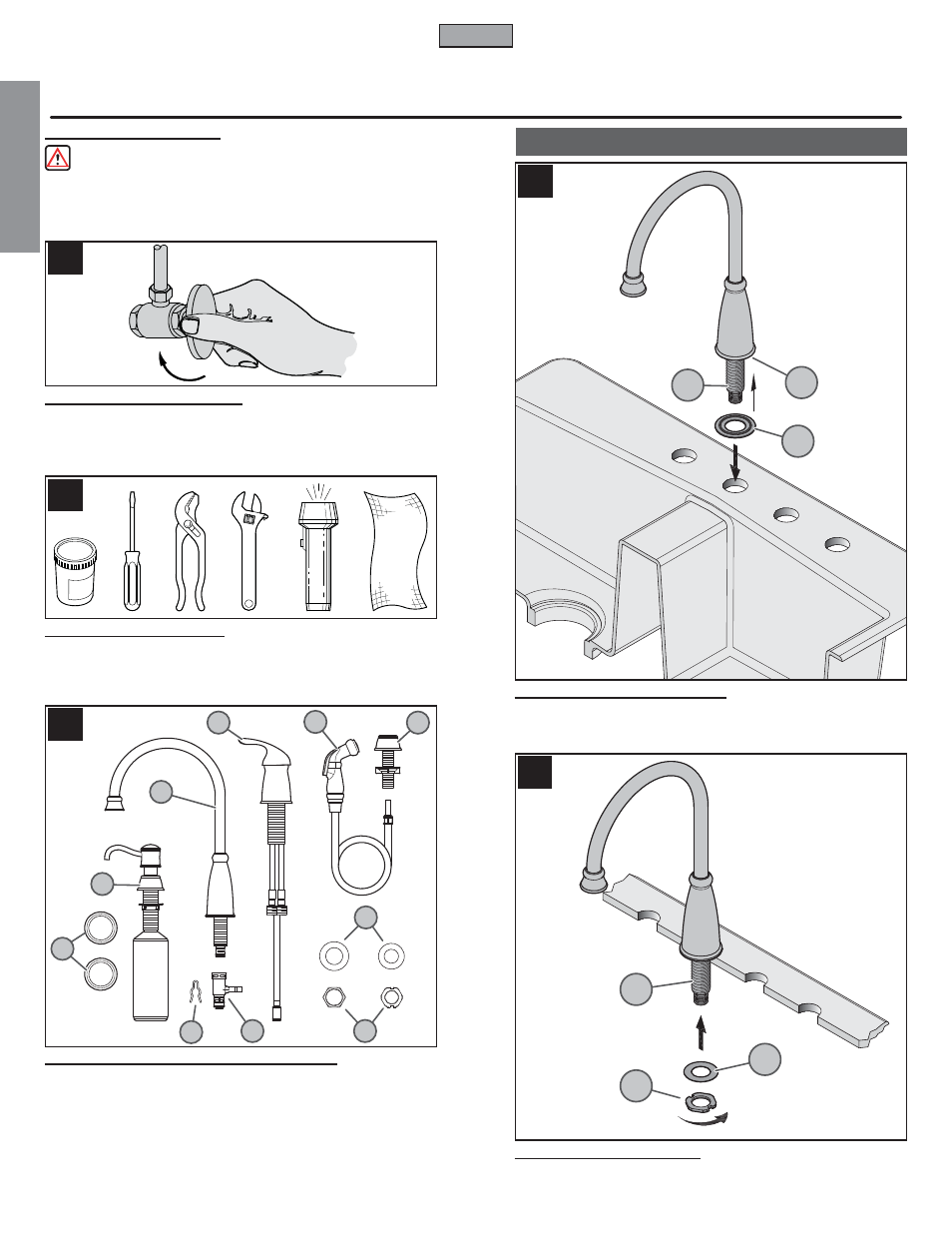

2 SHUT OFF WATER SUPPLY
Locate water supply inlets and shut off the water supply valves. These are
usually found under the sink or near the water meter. If you are replacing an
existing faucet, remove the faucet from the sink and clean the sink surface
thoroughly.
3 TOOLS RECOMMENDED
• Plumber's putty • Slotted screwdriver • Pliers
• Adjustable wrench • Flashlight • Cloth
Your installation may require new supply lines and / or shut-off valves or other
additional tools.
4 CHECKING THE CONTENTS OF THE BOX
Upon opening the box, check to ensure that all of the following items are
included:
A Spout Body B Control Body C Side Spray
D Hose Guide E Gaskets (2X) F Washers (2X)
G Locknuts (2X) H Soap Dispenser J Diverter
K Clip
If any of these items are missing, please contact Price Pfi ster Consumer Services
at 1-800-Pfaucet (1-800-732-8238).
5 SPOUT BODY INSTALLATION
Apply plumber’s putty into groove on bottom of Gasket (5A) per manufacturer’s
recommendations. Place Gasket (5A) under base of Spout Body (5B). From above
sink, insert Mounting Shank (5C) through center hole of sink.
6 SECURING SPOUT BODY
From underneath sink, place large Washer (6A), and Locknut (6B) onto Mounting
Shank (6C). Tighten faucet fi rmly to sink.
2
5A
A
FAUCET INSTALLATION
B C D
J K
E
H
F
G
6A
5C 5B
6B
6C
