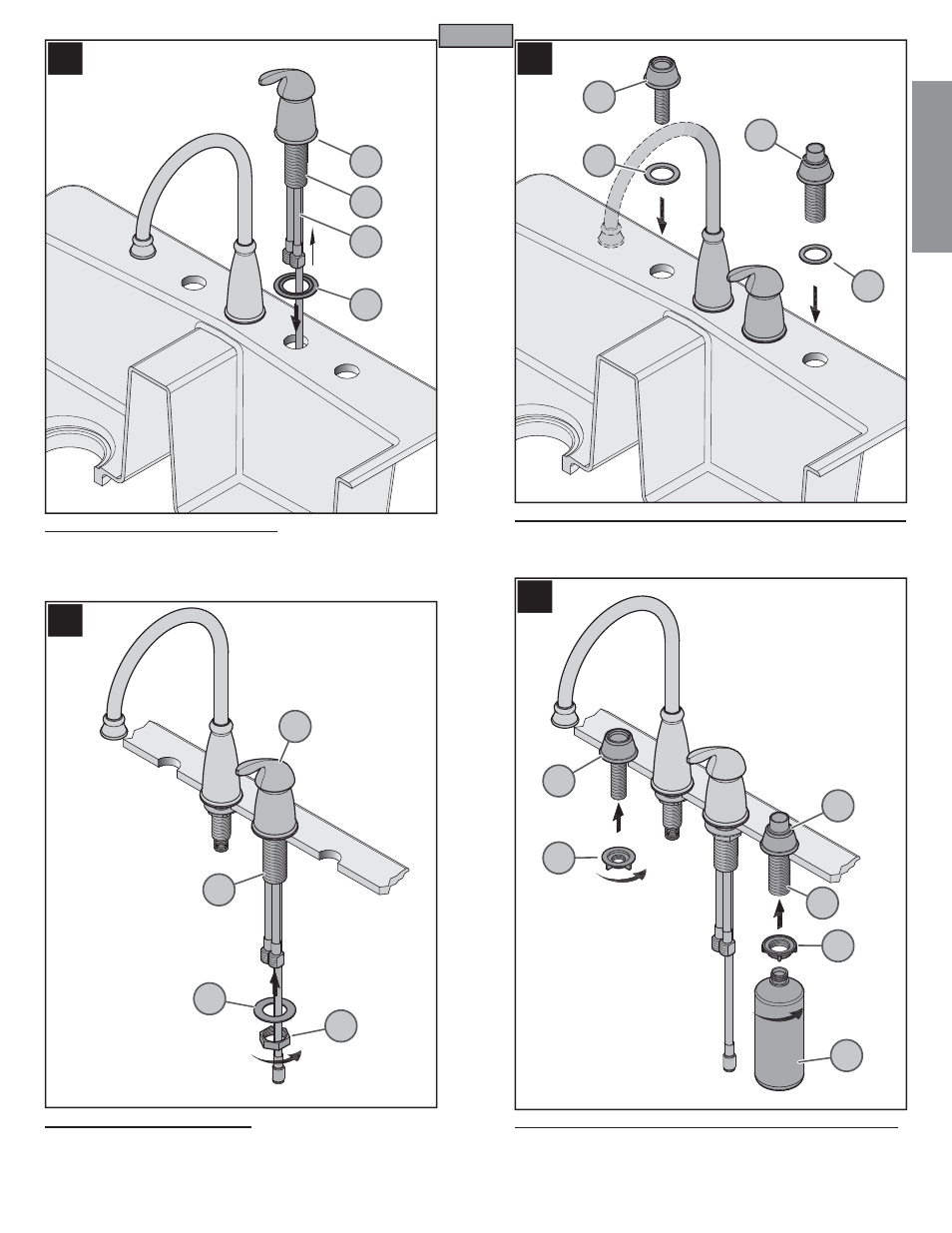

7 CONTROL BODY INSTALLATION

Apply plumber’s putty into groove on bottom of Gasket (7A) per manufacturer’s

recommendations. Place Gasket (7A) under base of Control Body (7B). From

above sink, insert Threaded Shank (7C) and Flexible Tubing (7D) through side

hole of sink.

8 SECURING CONTROL BODY

From underneath sink, place Washer (8A), and Locknut (8B) onto Mounting

Shank (8C). Make sure Handle (8D) is facing forward and it swings equally in

both directions. Tighten Locknut (8B) fi rmly to Shank (8C).

Caution: Do not over tighten!

9 HOSE GUIDE & SOAP DISPENSER GUIDE INSTALLATION

Insert Hose Guide Shank (9A) through Flange Gasket (9B) and insert Soap

Dispenser Guide Shank (9C) through Foam Gasket (9D) and into the sink holes.

(Both Hose Guide and Soap Dispenser Guide can be placed in either hole).

10 SECURING HOSE GUIDE & SOAP DISPENSER GUIDE

From underneath sink, secure Hose Guide (10A) and Soap Dispenser Guide

(10B) by screwing Plastic Locknuts (10C) and (10D). Thread on Bottle (10E)

to Soap Dispenser Shank (10F). Hand tighten.

Caution: do not over tighten!

3

7A

9A

10A

7B

7C

7D

8A

8B

8C

8D

9B

9C

9D

10C

10B

10D

10E

10F
