page 17 Reference Manual
Networked PIP Series
3.4.2 Wiring Instructions
1. PIP-Lite and PIP-USP3 ONLY: Using a standard CAT5 cable, connect the network con-
nector to a 100 Mb port on an Ethenet switch that is used to form the control network. For
more detail see Section 6.2, Network Basics. If the PIP module is not to be connected to a
control network, it can be temporaily connected to a computer’s Ethernet port with a crossover
cable (TX and RX pairs switched) to set up the PIP module for desired operation.
PIP-USP3/CN ONLY: Using a standard CAT5 cable, connect the Primary CobraNet connec-
tor to a 100Mb port on the Ethernet switch that is used to form the CobraNet network. For
more detail, see Section 4.1.3. We highly recommend that the CobraNet be a standalone or
separate-network LAN. If network redundancy is required, use a standard CAT5 cable to con-
nect the Secondary CobraNet connector to a 100Mb port on the auxiliary CobraNet network.
HiQnet and TCP/IQ control is also available over the CobraNet network using Harman Pro
System Architect or IQWic software.
Computer
Laptop
100Mb Switch
PIP-Lite
PIP-USP3
PIP-USP3/CN
PIP-Lite
PIP-Lite
PIP-Lite
PIP-Lite
PS8810

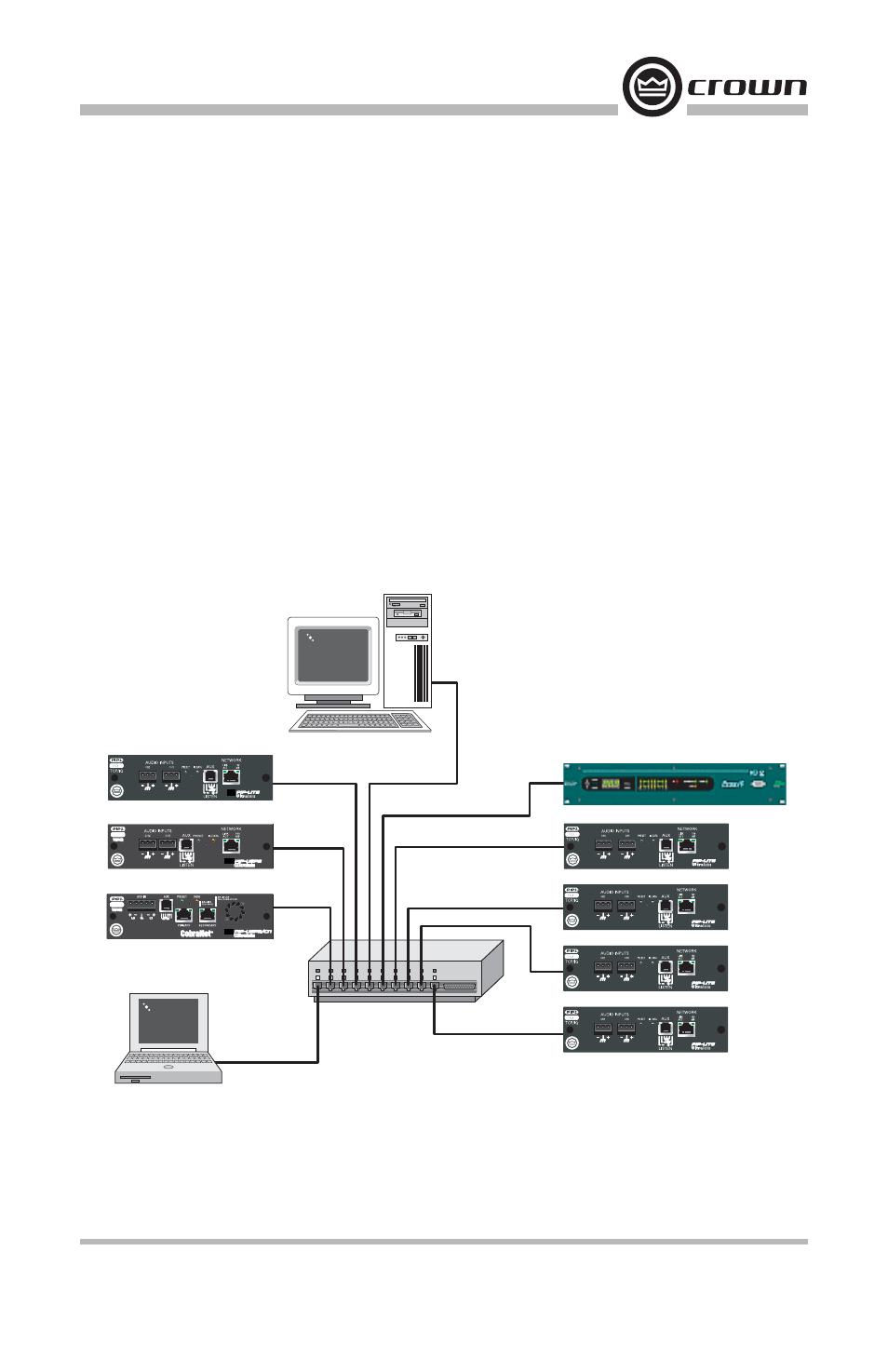

Figure 3.2 Network Wiring
