page 13 Reference Manual
Networked PIP Series
2.3 PIP-USP3/CN

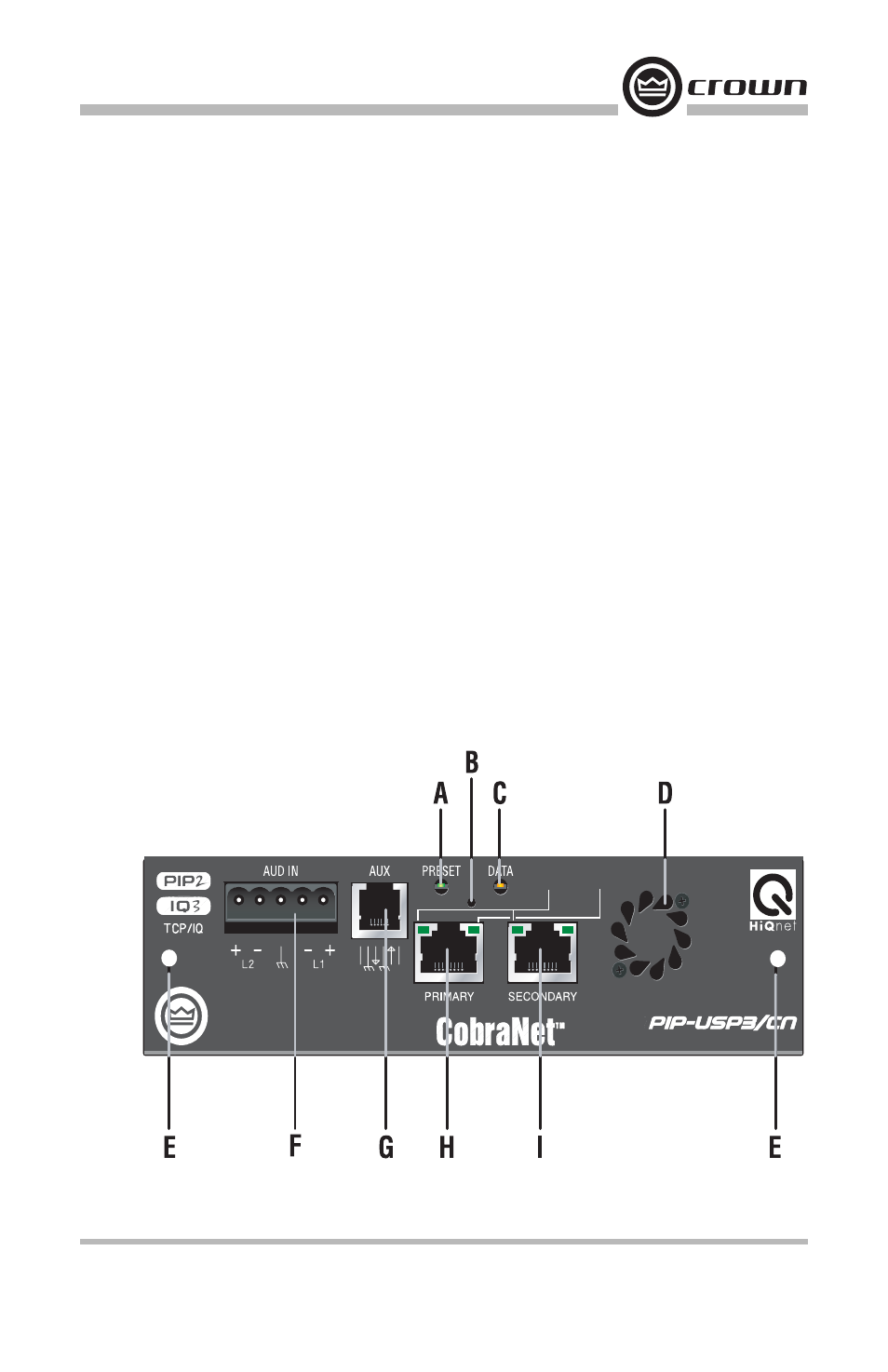

Figure 2.4 IQ-PIP-USP3/CN Front Panel Controls, Indicators and Connectors
(Note: Actual Product Artwork May Vary Slightly)
A. Preset Indicator
Signals the number of the current preset, if active, by flashing a series of flashes equal to
the current preset number. See Section 4.1.2.
B. Reset/Preset Switch
Used to change presets, restore settings to factory default or restore all the presets to the
factory defaults. During operations of the switch, the Data indicator flashes as an aid to
the user. See Section 4.1.11.
C. Data Indicator
Flashes when the PIP-USP3/CN receives a valid command that is addressed to the PIP-
USP3/CN. See Sections 5.1.4 and 5.1.7.
D: Fan Vent
E. Mounting Holes
F. Balanced Audio Input Connector
Single 5-pin removable barrier-strip connector for both channels.
G. AUX Connector
AUX input or AUX output. Listen Bus is available through CobraNet.
H, I. Network Connectors
The dual RJ-45 CobraNet connectors allow a Primary & Secondary connection to the
100Mb Ethernet network. Should the Primary connection (H) lose Link activity with the
network, the USP3/CN will automatically switch to the Secondary connection (I) to
ensure uninterrupted audio and control. The indicators on the RJ-45 connectors display
network information concerning the Ethernet and CobraNet connections. See Sections
5.1.4, 5.1.6 and 5.1.7.
IN USE/
CONDUCTOR
LINK/
ACTIVITY
