Networked PIP Series
Reference Manual page 5
Controls, Indicators and Connectors
PIP-Lite
A. Balanced Audio Input Connectors
3-pin removable barrier-strip connectors, one per channel.
B. Preset Indicator
Signals the number of the current preset, if active, by fl ashing a series of fl ashes equal
to the current preset number.
C. Reset/Preset Switch
Used to change presets, restore settings to factory default or restore all the presets to
the factory defaults. During operations of the switch, the Data indicator fl ashes as an
aid to the user.
D. Data Indicator
Flashes when the PIP-Lite receives a valid command that is addressed to the PIP-Lite.
E. AUX Connector
AUX input, AUX output, and Listen Bus/Foldback.
F. Network Connector
The network connector is a standard RJ-45 connector that allows the PIP-Lite to
connect to an Ethernet network. Connection is made using a standard Category 5
or better cable to a network switch port. For compliance with emission regulations,
the supplied ferrite core must be placed on the CAT5 cable, with the cable making
two passes through the core as shown in the fi gure below. The Link Activity LED
indicates data activity on the network line. The 100 MB LED indicates that the data
is at 100 Megabits.
G. Mounting Holes

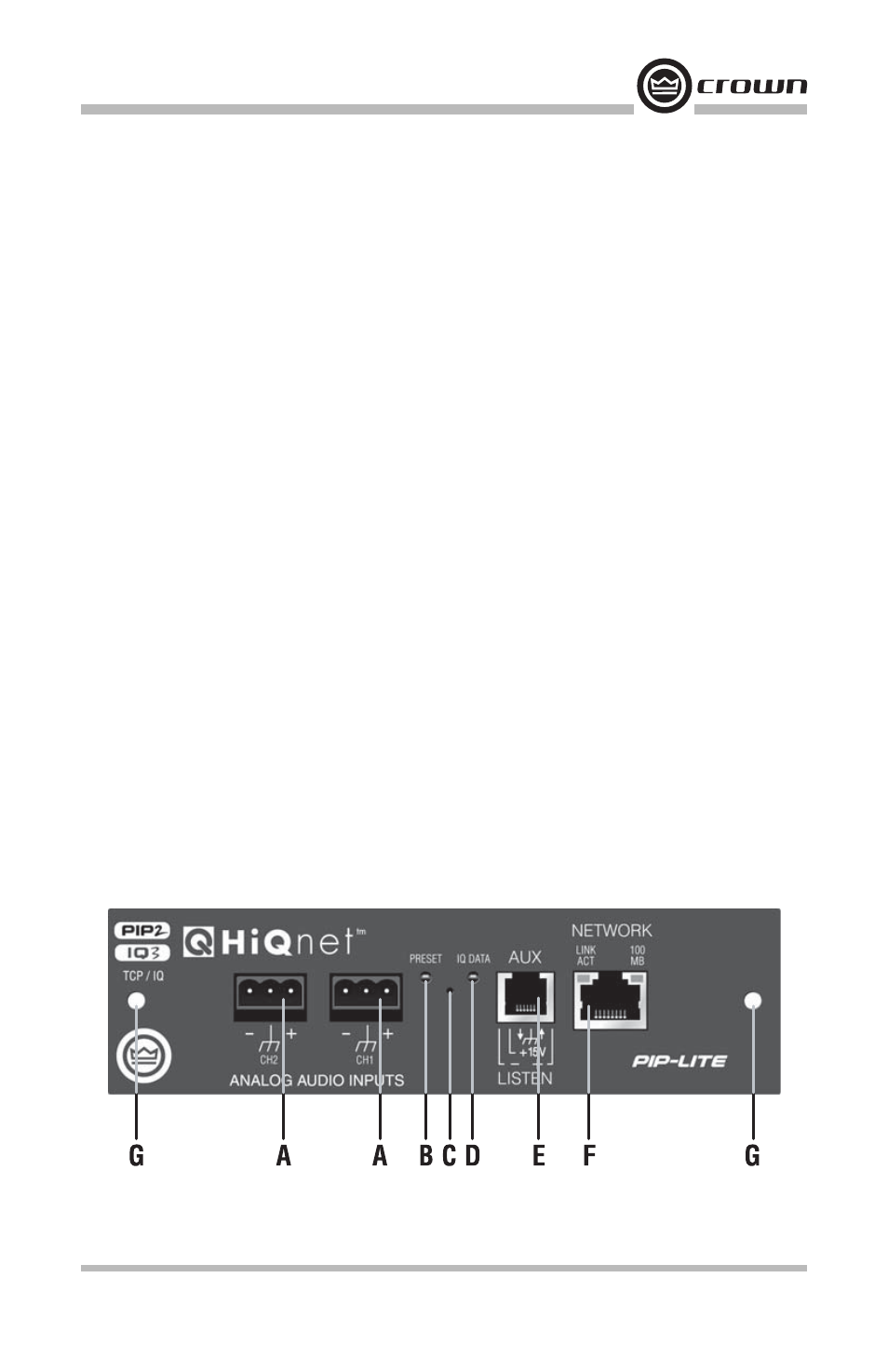

PIP-Lite Controls, Indicators and Connectors
(Note: Actual Product Artwork May Vary Slightly)
