911334_00(7) Page 9 of 16

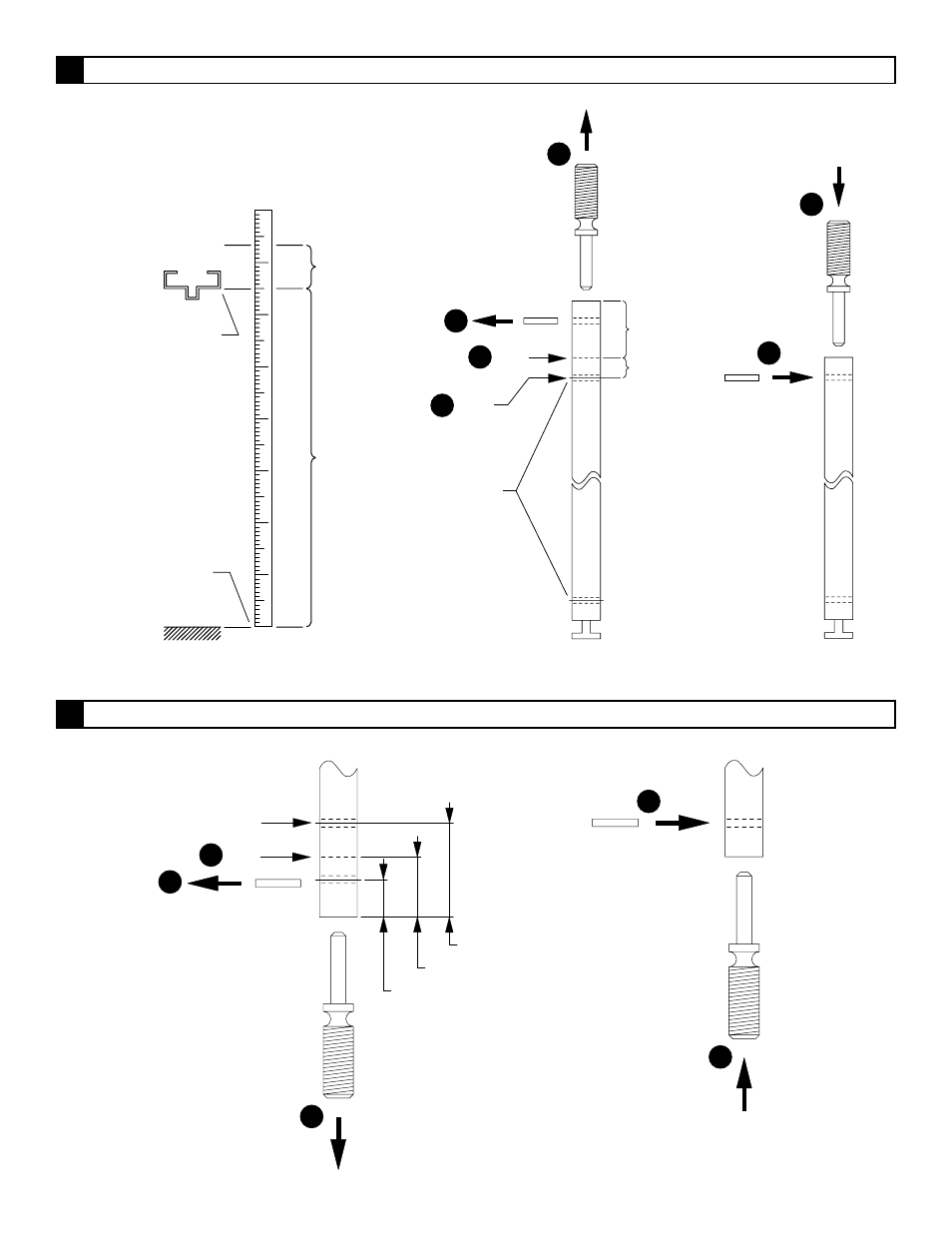

7.1. Find amount to cut off (Figure 7-1).
7.2. Cut top rod (Figure 7-2).
If door height is less than 84”, cut top rod. (Uncut top rod is about 38-3/4” overall.) 7
Figure 7-2
If using threshold, cut bottom rod. (Uncut bottom rod is about 34-7/8” overall.)
8
5
6
1
2
Amount
to cut off
4 Drill
1/8”
dia.
3 Cut
3/8”
Figure 7-1
Align
holes
84”
Amount
to cut off
Door
height
Measure from
bottom of frame
Measure from
finished floor
3/8” ref.
7/8” ref.
1/2”
1
2
3
4
5
Cut
Pre-drilled hole
Roll
pin
Roll
pin
Roll
pin
Roll
pin
