911334_00(7) Page 10 of 16

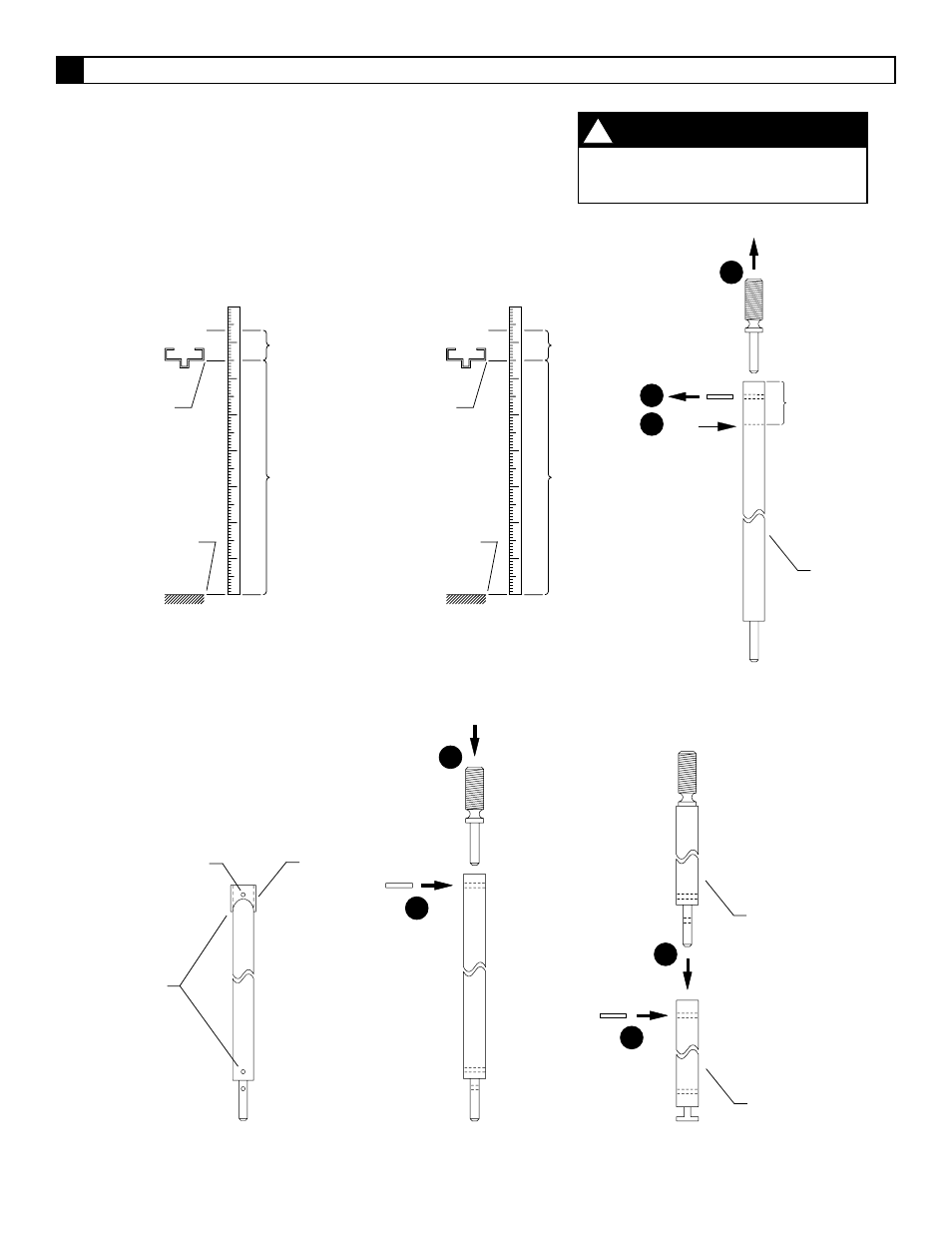

If door height is more than 84”, prepare rod extension. 9
9.1. Find amount to cut off rod extension (Figure 9-1).
9.2. Cut rod extension (Figure 9-2).
9.3. Drill hole in rod extension (Figure 9-3).
9.4. Assemble rod extension rod (Figure 9-4).
9.5. Connect rod extension to top rod (Figure 9-5).
Rod
extension
Top rod
Figure 9-5 Figure 9-4 Figure 9-3
Drill
template
1/8” dia.
drill thru
Align
holes
Door height between
84” and 96”.
Door height between
96” and 120”.
Figure 9-1 Figure 9-2
1
2
Amount
to cut off
3 Cut
Rod
extension
96”
Amount
to cut off
Door
height
Measure
from bottom
of frame
Measure from
finished floor
120”
Amount
to cut off
Door
height
Measure
from bottom
of frame
Measure from
finished floor
1
2
For door heights less than 88”, cut
top rod instead of rod extension.
IMPORTANT
!
1
2
Roll
pin
Roll
pin
Roll
pin
