Page 3
911334_00(7) Page 3 of 16

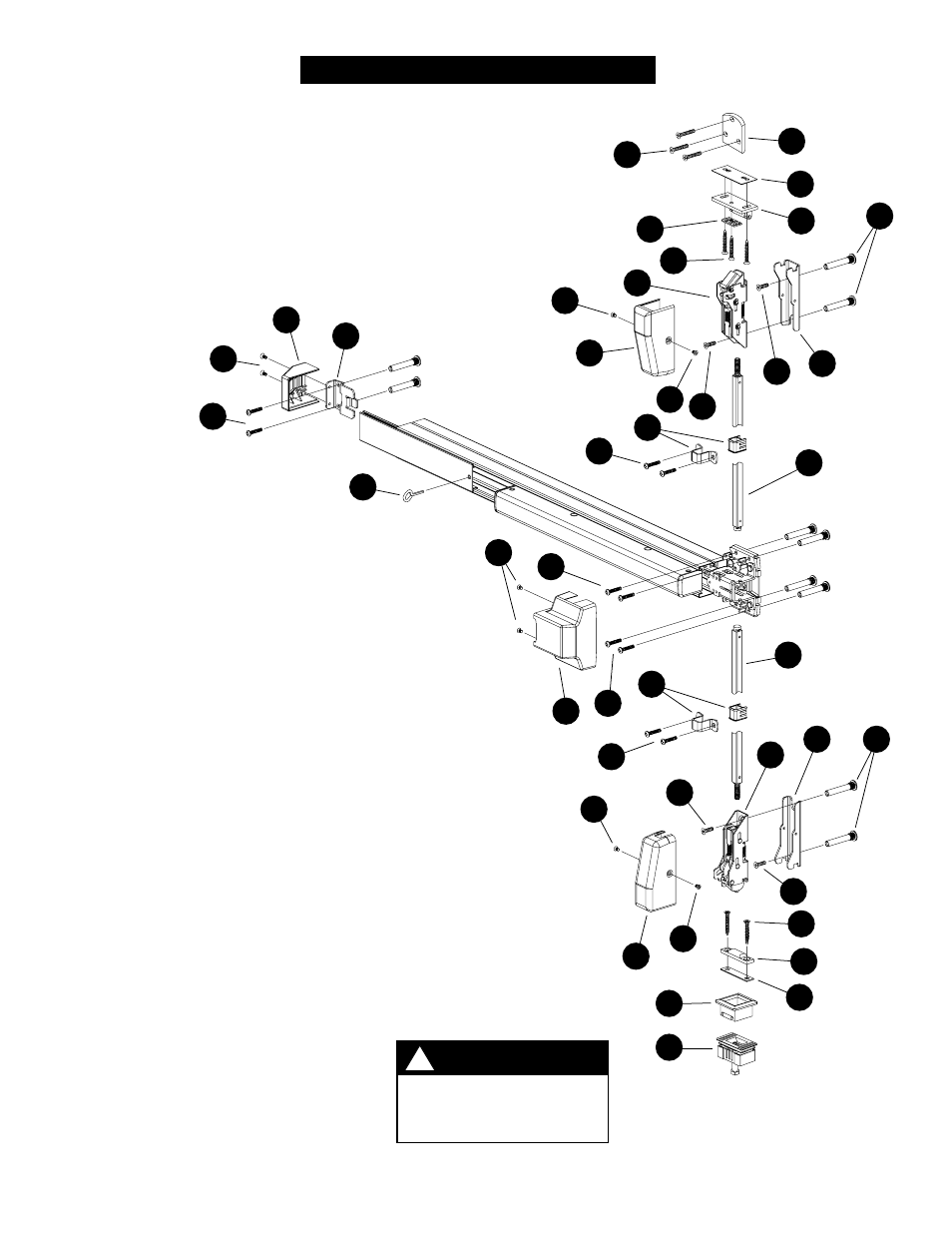

2227/2227-F PARTS LIST
#325 sex bolts must be
used to install latches on
all types of doors.
NOTE
!
Item Quantity Description
In 248L-4 strike package:
4
2
#10-12 x 10-24 x 1-1/4 oval head combination screw
In rod guide mounting package:
5
4
#10-12 x 10-24 x 1 pan head combination screw
In latch mounting package:
6
4
1/4-20 x 3/4 undercut flat head machine screw
6
4
1/4-20 x 1-1/4 undercut flat head machine screw
In each of two (2) latch cover mounting packages:
7
2
#8-32 x 1/4 undercut flat head machine screw
In device mounting screw package:
8
4
#10-24 x 1 pan head machine screw
8
4
#10-24 x 1-1/2 pan head machine screw
8
6
#10-24 x 1-1/4 pan head sheet metal screw
8
2
#10-24 x 3/4 pan head machine screw
8
2
#10-24 x 1-1/8 pan head machine screw
9
1
Center case cover
10
1
Mechanism case end cap
11
1
Mechanism case mounting bracket
12
1
299 (panic device) or 299F (fire exit device) strike
13
1
299/299F strike adjusting shim
14
1
Strike plate (299 strike only; not shown)
15
1
260U strike (optional; panic device; flush transom application)
16
1
Top latch assembly
17
2
Latch mounting bracket
18
2
Latch cover
19
1
Top vertical rod assembly
20
2
Rod guide assembly
21
1
Bottom vertical rod assembly
22
1
Bottom latch assembly
23
1
248L-4 strike (panic device)
24
3
248L-4 strike adjusting shim
25
1
304L strike
26
1
385A strike (optional)
27
1
Dogging key (panic device)
28
4
#325 sex bolts
1
8
10
11
#425 sex
bolts
(optional)
3
13
12
2
16
18
7
17
6
5
20
19
27
1
9
8
21
20
5
18
7
6
17
4
23
24
25
26
6
8
6
7
7
22
28
28
14
#425 sex
bolts
(optional)
15
Item Quantity Description
In end cap package:
1
4
#8-18 x 1/2 undercut flat head machine screw
In 299/299F strike package:
2
3
#10-24 x 3/4 flat head machine screw (metal frame)
2
3
#10-24 x 1-1/2 flat head wood screw (wood frame)
In 260U strike package:
3
3
#10-12 x 10-24 x 1-1/4 oval head combination screw
