911334_00(7) Page 8 of 16

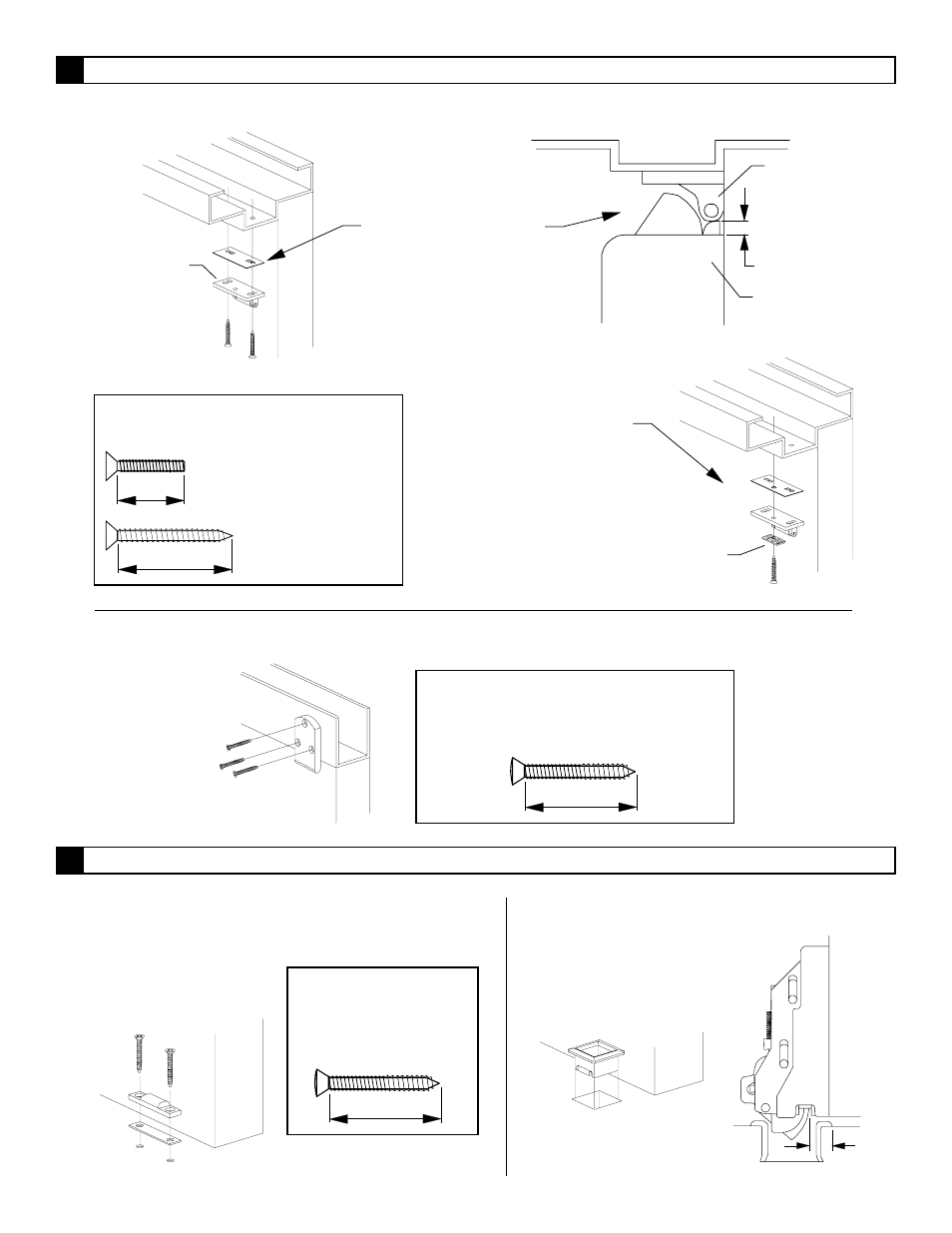

Install bottom strike. 6
304L Strike
Install top strike. 5
299 and 299F Strikes
260U Strike
Strike
Use shim if necessary
for 3/16” spacing
3/16”
Strike
Latch
case
#10-24 flat head machine
for metal frame
#10 flat head wood
for wood frame
Use screws from 299/299F
strike package
3/4”
1-1/2”
After strike is adjusted,
prepare center mounting
hole same as other strike
mounting holes and install
center screw (strike plate
used for 299 strike only)
Strike plate
(299 only)
#10-12 x 10-24 oval
head combination
Use screws from 260U strike package
1-1/4”
248L-4 Strike
#10-12 x 10-24 oval
head combination
Use screws from
248L-4 strike package
1-1/4”
Add shim(s) so strike
engages extended
latch bolt but clears
latch case
Shim
3/8”
ref.
Grout strike
into floor
