911334_00(7) Page 4 of 16

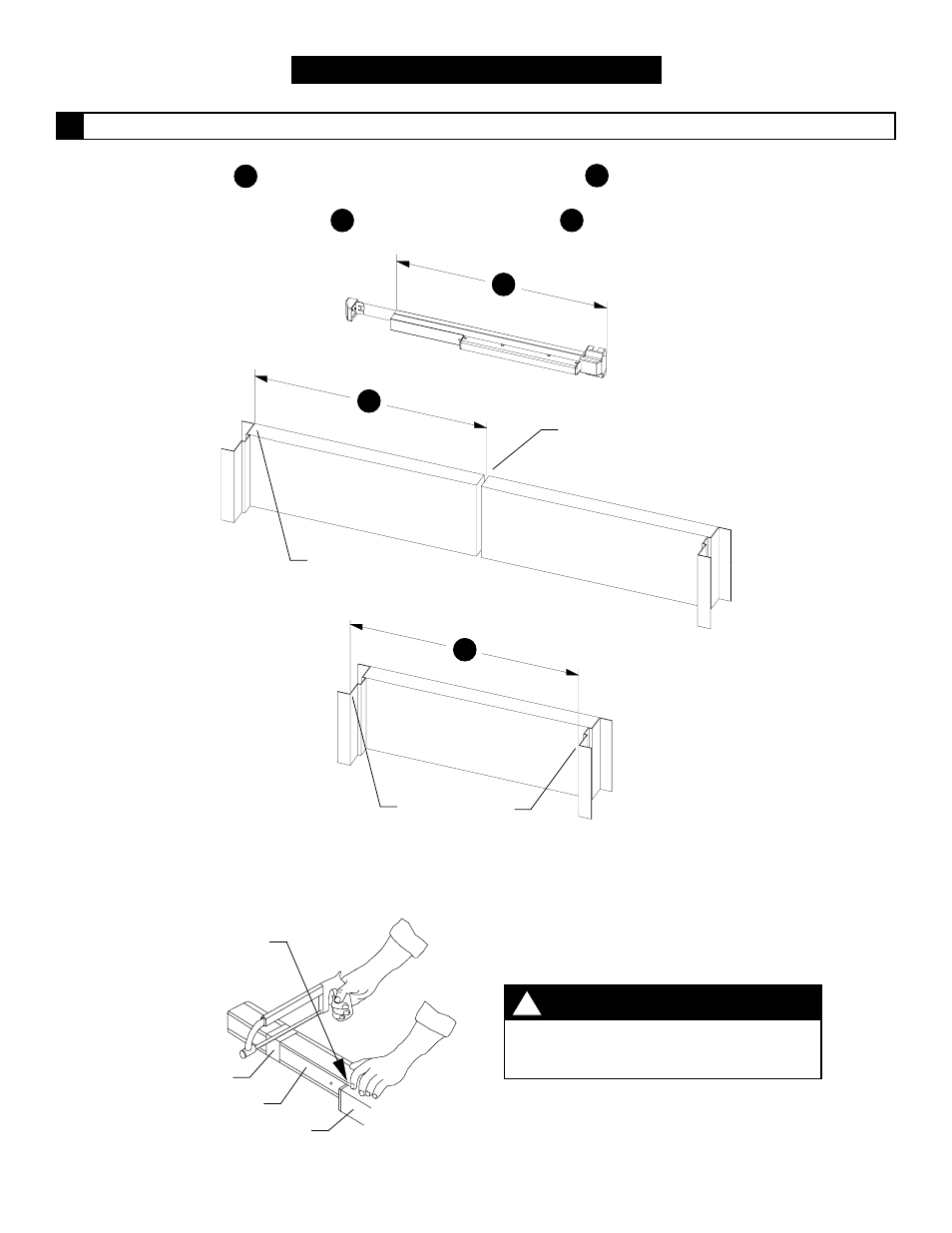

INSTALLATION
1
Cut device if necessary.
1.1. Device length A must be at least 3” shorter than opening B (Figure 1-1).
1.2. If necessary, cut device so A is at least 3” shorter than B (Figure 1-2).
Figure 1-2
Figure 1-1
Tape
Pushbar
Cover plate flush
with end of pushbar
Cover plate
If using ALK exit alarm option, install
ALK cover plate before cutting device.
NOTE
!
Double
Door
Measure from
middle of gap
between doors
Measure from
inside of frame
B
A
Single
Door
Measure from
inside of frame
B
