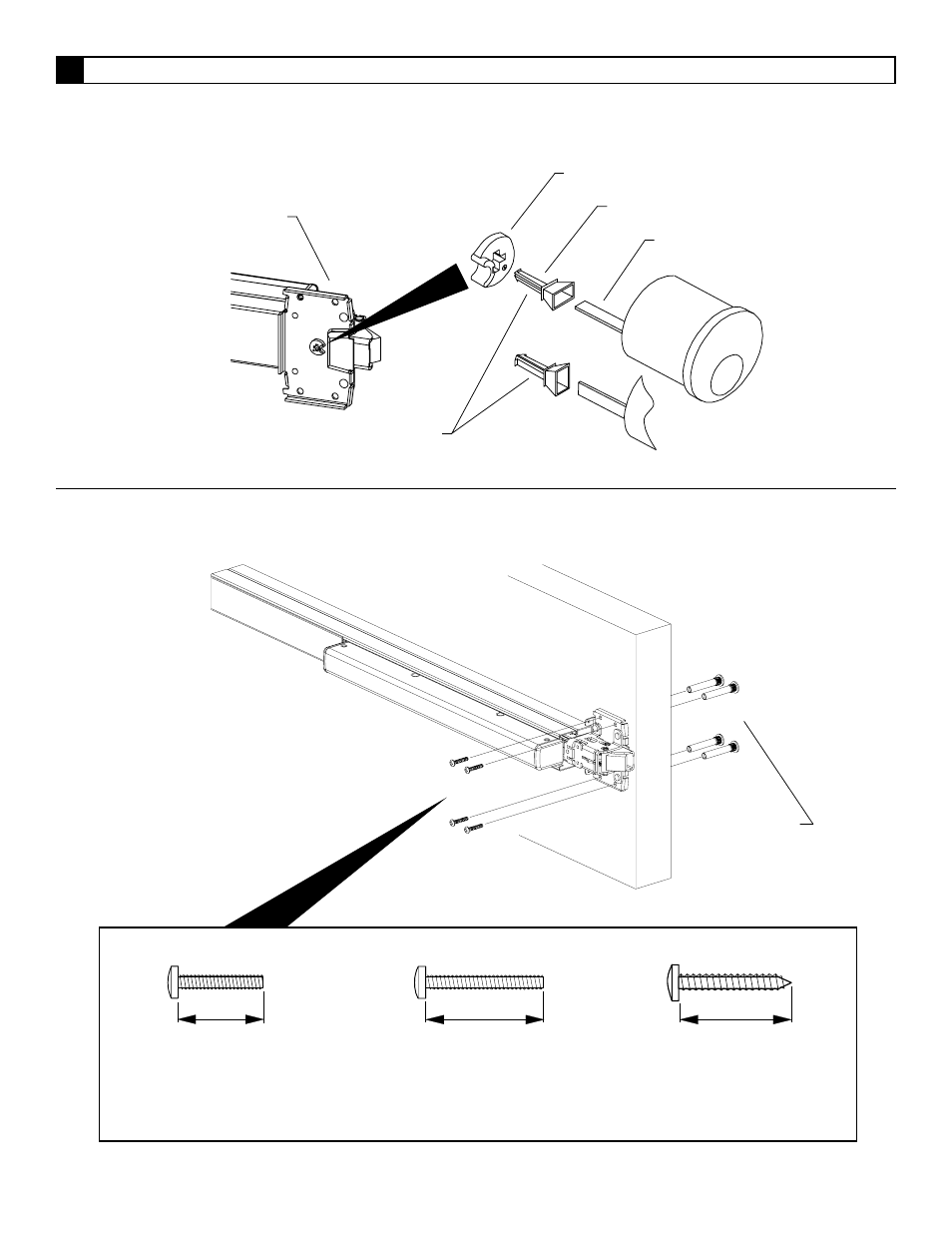

Install device to door at center case. 5
5.1. If using cylinder in trim, install tailpiece guide (packaged with trim) in device.
5.2. Install device to door at center case.
#425 sex
bolts (shown)
or outside trim
optional
Use screws from device mounting screw package
#10-24 pan head sheet metal
for
wood door surface mount
#10-24 pan head machine
for
sex bolts on 2-1/4” door or
outside trim on 2-1/4” door
#10-24 pan head machine
for
metal door surface mount,
sex bolts on 1-3/4” door, or
outside trim on 1-3/4” door
1” 1-1/2” 1-1/4”
Device cylinder cam
Tailpiece guide
Tailpiece
Bottom of
center case
Align tailpiece guide
to match tailpiece
