911333_00(9) Page 3 of 12

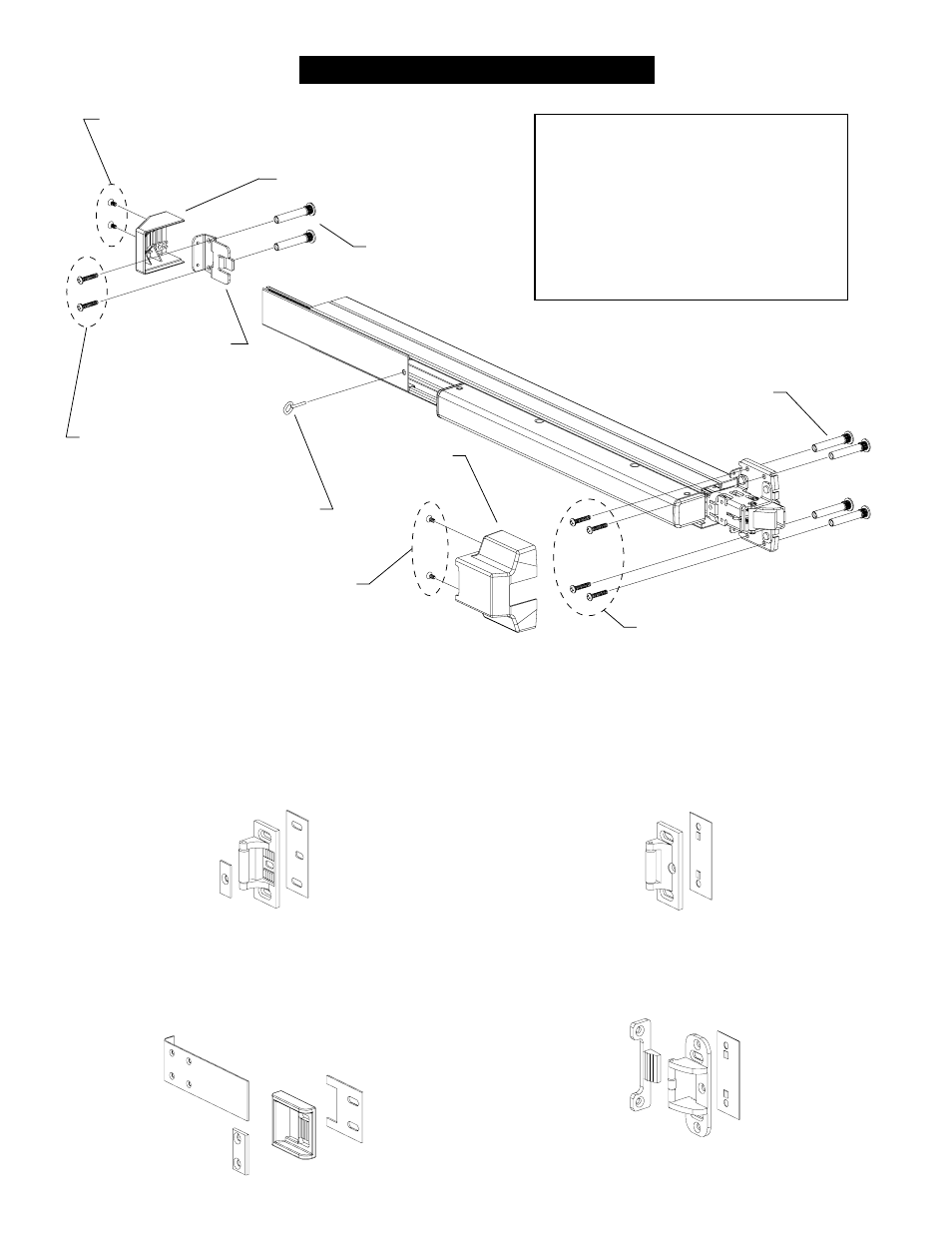

22/22-F PARTS LIST
#10-24 x 3/4”machine screws (2)
#10-24 x 1”machine screws (6)
#10-24 x 1-1/8”machine screws (2)
#10-24 x 1-1/2”machine screws (6)
#10 x 1-1/4”sheet metal screws (8)
Mounting Screw Package
Strike Packages
299 Strike Package
(panic device)
#10-24 x 3/4” machine screws (3)
#10 x 1-1/2” wood screws (3)
Shim
Strike
plate
Strike
Shim
Strike
299F Strike Package
(fire exit device, single door)
#10-24 x 3/4” machine screws (3)
#10 x 1-1/2” wood screws (3)
499F Strike Package
(fire exit device, double door)
#10-24 x 3/4” machine screws (7)
1409/1439 Strike Package (1409 shown)
(panic device, aluminum frame, 1/2” blade stop)
#10-12 x 10-24 x 1-1/4” combinartion screws (2)
Flat head drive rivets (4)
Adjustment
block
Wear strip
Shim
Strike
Strike
hook
Shim
Strike
Dogging key
(panic device)
From mounting
screw package
#425 sex bolts
(optional)
From mounting screw package
#8-18 x 1/2” undercut
flat head machine screws
(from mechanism end cap package)
#425 sex bolts
(optional)
Mechanism case end cap
Center case
cover
#8-18 x 1/2” undercut flat head machine screws
(from mechanism end cap package)
Mechanism
case mounting
bracket
