911333_00(9) Page 12 of 12
1-1/16”
1-1/16”
Cut on this line for 1409/1439 strike
Prepare holes 4 places:
Surface Application (no outside trim):
Metal door: #25 drill and #10-24 tap inside
Wood door: 1/8” drill x 1”deep pilot holes
#425 Sex Bolts or Outside Trim:
Metal door: 1/4” drill inside and 13/32” outside
Wood door: 13/32 drill thru
For 1409/1439 strike cut center case template along
this line and place on door with this edge against stop
For 299/299F/499F strike place center case
template on door with this edge against stop
911333-00
5/8” 5/8”
5/8”
Cut strike template along
this line and place on stop
with this edge against door
Prepare holes 2 places:
Metal frame:
#25 drill and #10-24 tap
Wood frame:
1/8” drill x 1” deep
CL
7/8” dia. for
NL, K, L, and
TP trim only
1-11/16”
1-11/16”

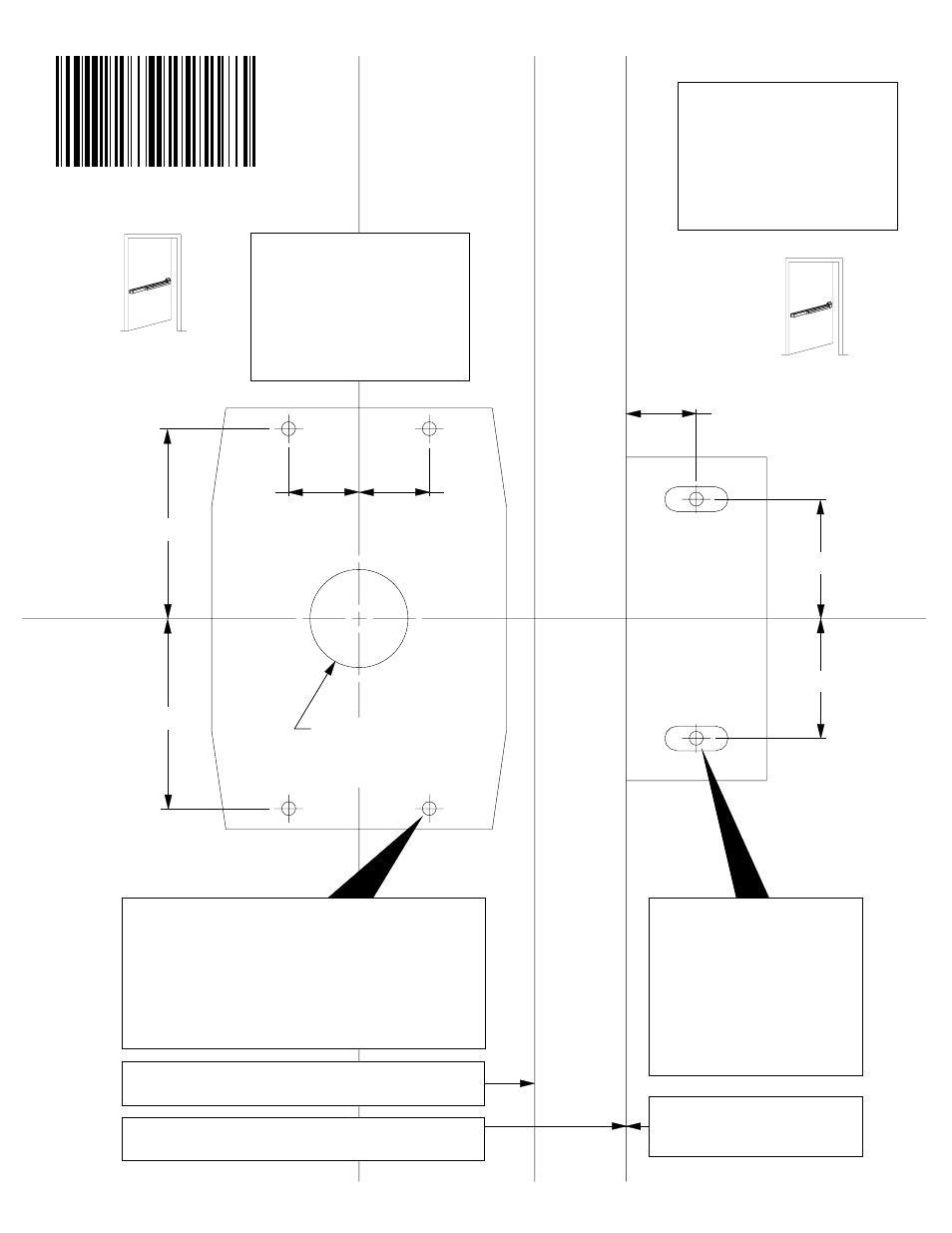

CENTER CASE TEMPLATE
Refer to Step 4 (p. 6)
when using this template
Template to scale
(dimensions in inches)
RHR
CL
C device
L
RHR
STRIKE TEMPLATE
Refer to Step 1 (p. 4)
when using this template
Template to scale
(dimensions in inches)
