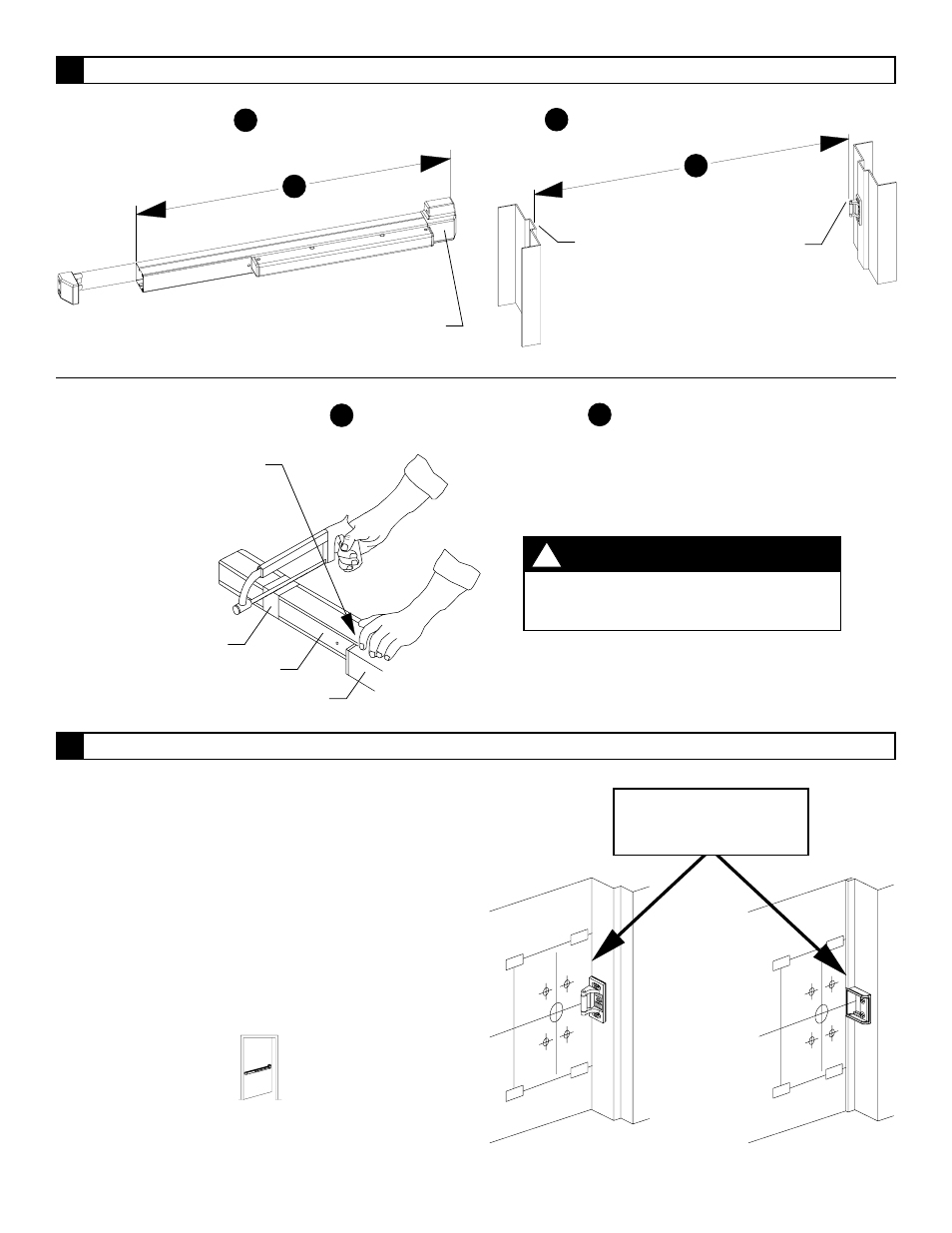

911333_00(9) Page 6 of 12

3

Cut device if necessary.

If using ALK exit alarm option, install

ALK cover plate before cutting device.

NOTE

!

Tape

Cover plate

Pushbar

Cover plate flush

with end of pushbar

A

B

Measure from
inside of stop

Measure

from strike

Measure from end of center case cover

(not from tip of latch bolt)

4

Prepare door for device.

3.1. Device length

A

must be at least 1-1/2” shorter than

B

.

3.2. If necessary, cut device so

A

is at least 1-1/2” shorter than

B

.

RHR shown

LHR opposite

4.1. Cut center case template for 1409/1439

strike or for 299/299F/499F strike.

4.2. Tape center case template to inside of door

aligned with center line C as shown.

4.3. Mark and prepare holes per template.

4.4. Prepare door for outside trim (see trim

instructions).

299/299-F/499-F Strike

1409/1439 Strike

L

C

L

C

Place cut edge of

template against stop

L
