11
2
I
J
K

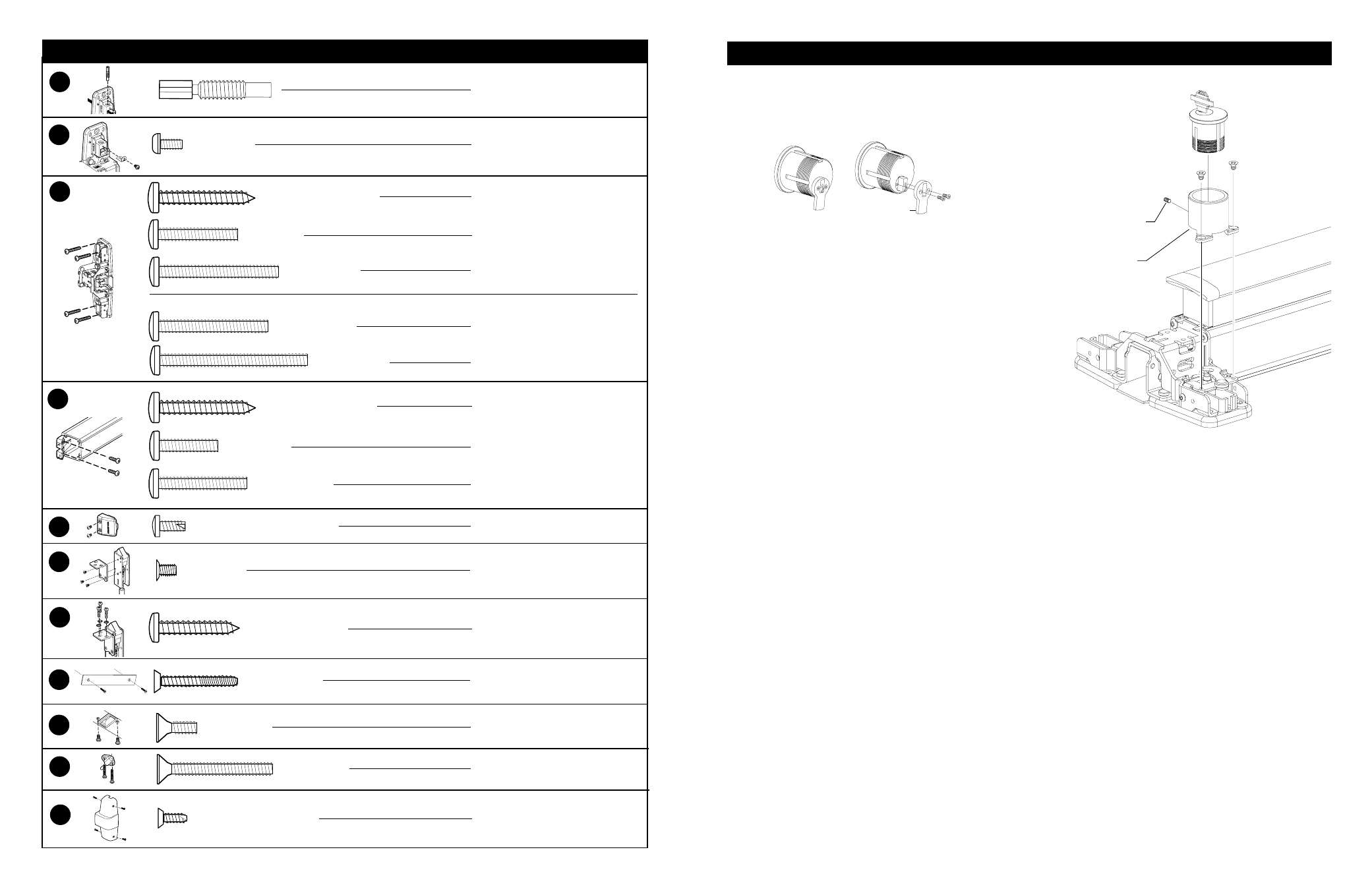

SCREW CHART
#8-18 X 3/8” Thread cutting Center case cover screw
#10-24 X 1/2” 338 strike screw
#10-24 X 1-1/2” Ratchet release screw
B
#8-32 X 5/16” Rod locking screw
A
Rod adjustment screw
C
D
E
G
F
#10-16 X 3/8” Thread cutting End cap screw
- Packaged with trim -
#10-24 X 1-3/8”
#10-24 X 1-7/8”
990 trims (1-3/4” door)
990 trims (2-1/4” door)
Bracket screw #10-32 X 1/4”
#10 X 1” Wood screw Bracket to door screw
Sex bolts (1-3/4” door) #10-24 X 1”
#10-24 X 1-1/2” Sex bolts (2-1/4” door)
#10 X 1-1/4” Wood screw Surface mount (WDC)
#10 X 1-1/4” Wood screw Surface mount (WDC)
#10-24 X 3/4”
#10-24 X 1-1/8” Sex bolts 2-1/4” door
Sex bolts (1-3/4” door)
H
Cover plate screw #8-16 X 8-32 X 1”
CD (CYLINDER DOGGING)
Bracket set
screw
Bracket
1. Make sure cylinder cam is positioned
as shown with key removed. If not
positioned as shown remove cylinder
cam and reverse.
2. Remove center case cover from device.
3. Orient cylinder as shown at right and
insert cylinder into bracket.
4. Tighten bracket set screw with a 1/16”
hex wrench.
5. Secure cylinder bracket to center case.
To dog RHR device, depress pushbar, insert key, and turn
key 180 degrees counterclockwise. To dog LHR device, turn
key clockwise.
To undog RHR device, insert key and turn key 180 degrees
clockwise. To undog LHR device, turn key counterclockwise.
Cam
