Model 38118XX1 only:

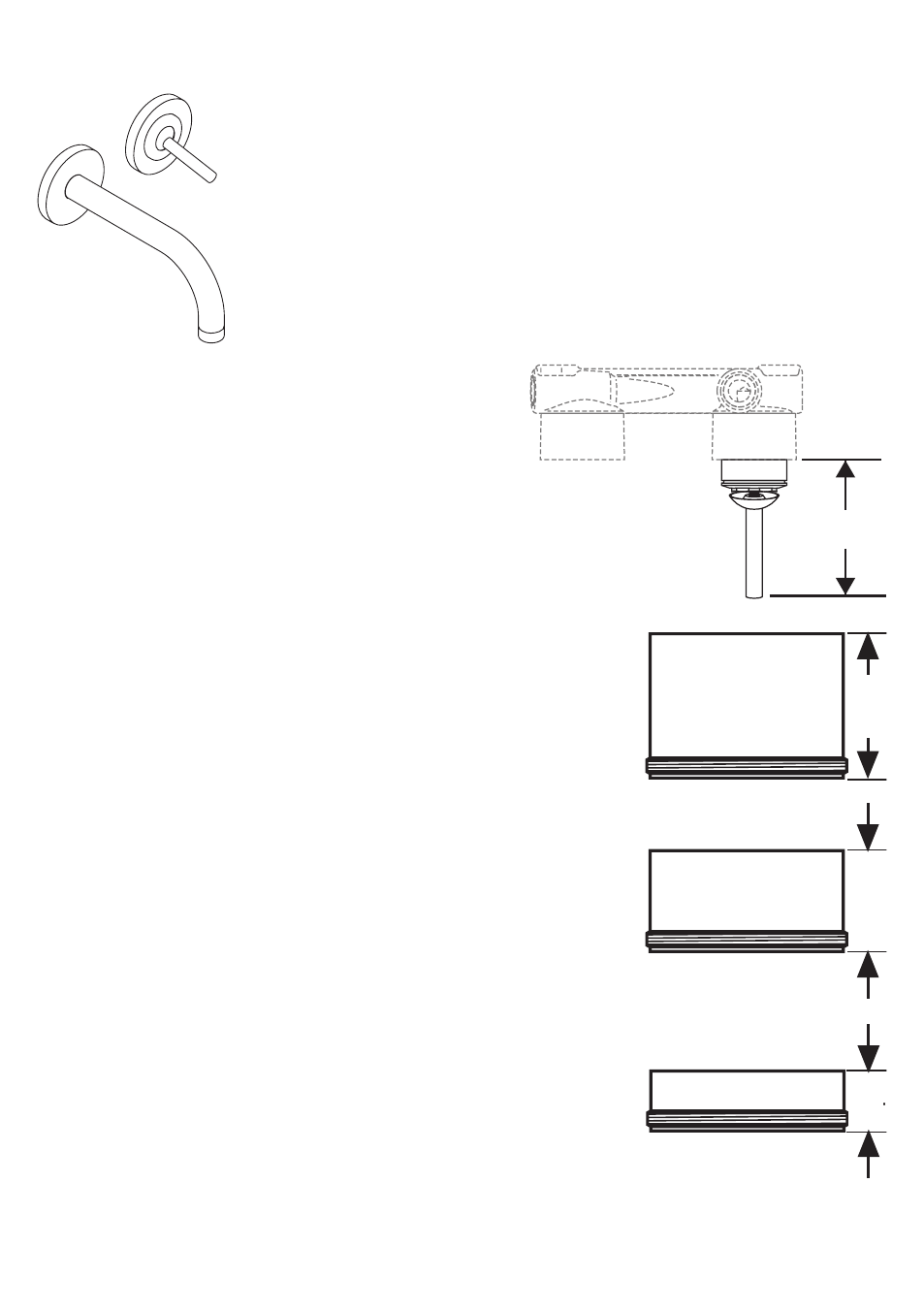

Measure the distance between the wall surface and

the end of the handle (x).

If x is between 3 1/4” and 3 7/8”, select the “A”

sleeve (1 1/4”).

If x is between 3 7/8” - 4 3/8”, select the “B” sleeve

(7/8”).

If x is greater than 4 3/8”, select the “C” sleeve

(1/”).

x

A

B

C

1 1/4”

7/8”

1/
