Factory Direct Hardware Hansgrohe 38117 User Manual
Page 7
7

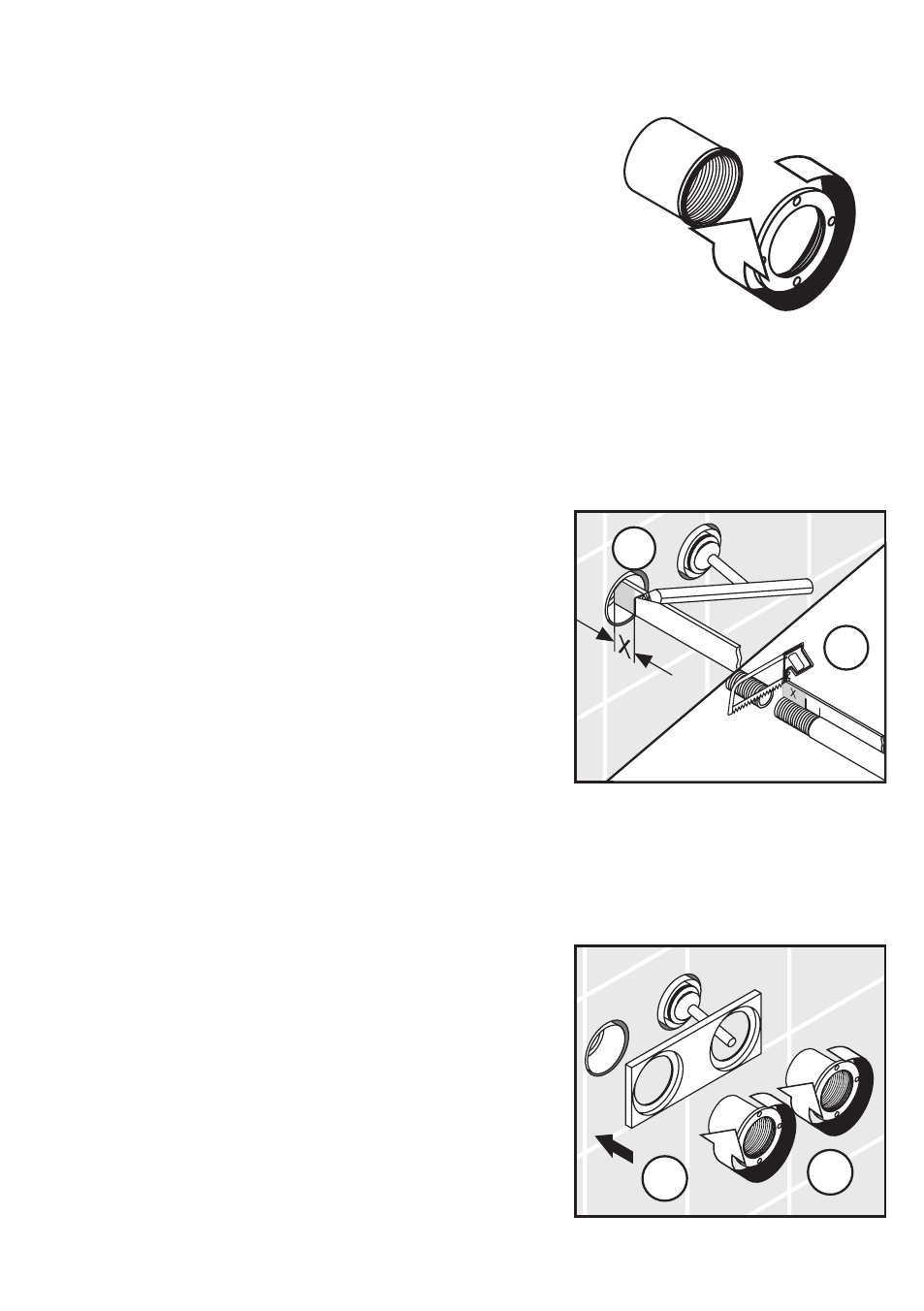

Connect the fixation nuts to the sleeves.
Measure the distance from the rough to the outside
surface of the finished wall (X) (1).
Add 1” to X. Cut the threaded end of the spout so that
it is X + 1” long ().
Push the baseplate against the wall (1).
Thread the sleeves into the rough ().
1.
2.
X + 1”
1.
2.
