the magnetic barrier with the ceramic magnets
without any noticeable deflection. In various
cases it will change its direction of motion. It will
rebound only in very rare cases.
Interpretation:
In Rutherford’s scattering experiment almost all
alpha particles traverse the metal foil. Only a few
of them are deflected from their original direction.
Strong dispersion occurs only in very rare cases.
Note:
The influence of the magnetic barrier on the mo-
tion of the hover discs can be varied by placing
the barrier on the Plexiglas plate and setting the
plate to the desired height. The effect of the bar-
rier is enhanced by placing orange discs on the
ceramic magnets.
2.5.3 The Rutherford Atomic Model
Components:
Air-cushion table with fan
Overhead projector
Magnetic barrier, long
2 Pieces
Magnetic barrier, short 2 Pieces
Holding device 1 Piece
Plexiglas plate 1 Piece
Manipulating rod 1 Piece
Hover disc, orange 1 Piece
Hover disc, red 1 Piece

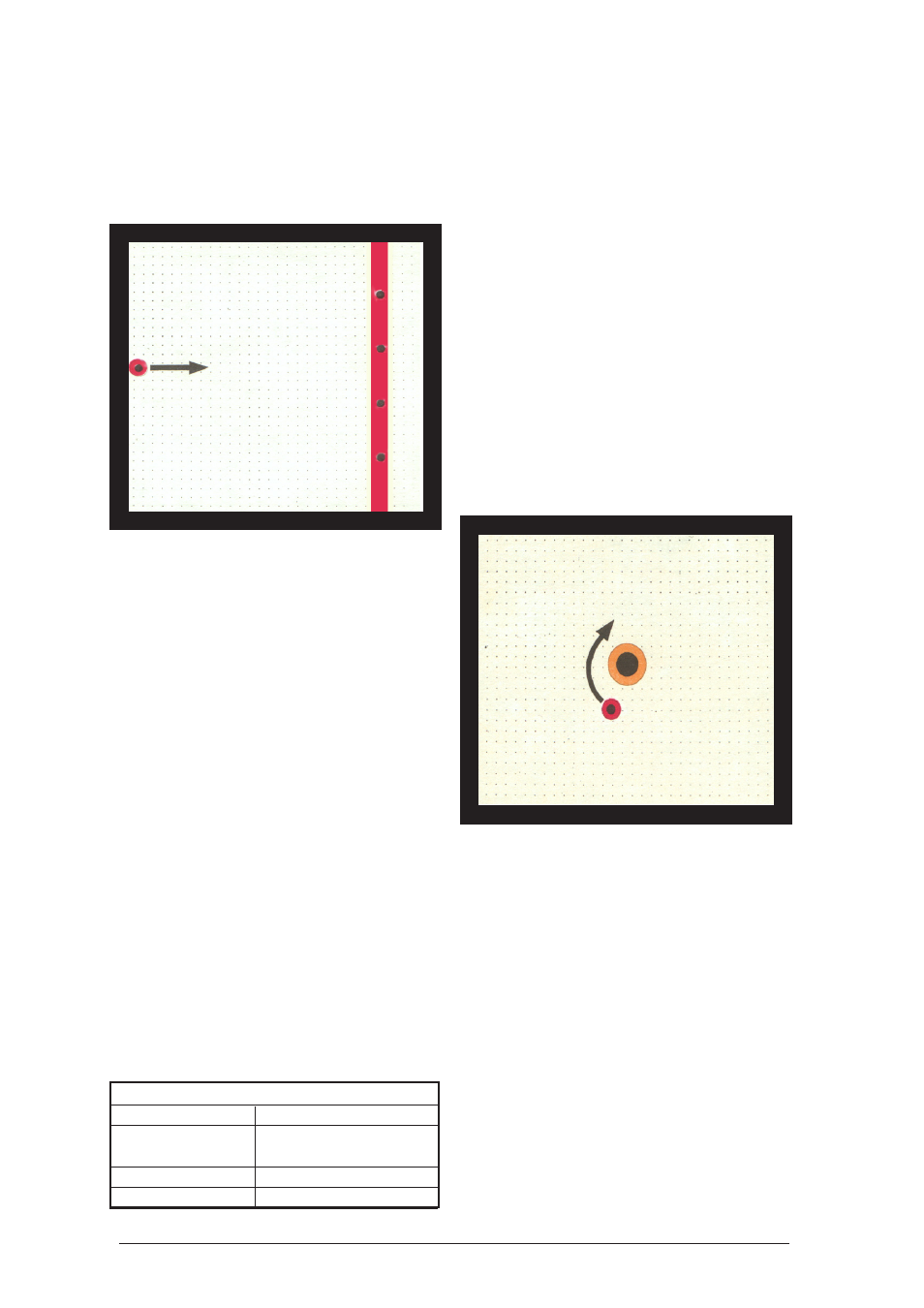

Model simulation:
Real Object Model
Atom Experiment surface of
the air-cushion table
Atomic nucleus Hover disc, orange
Electron Hover disc, red
How to proceed:
Align the air-cushion table horizontally. Attach
the magnetic barriers and the holding device to
the air-cushion table. Insert the Plexiglas plate
and position it closely above the experiment sur-
face. Place the orange disc in the middle of the
Plexiglas plate.
Turn the fan to a setting in which the red disc is
sure to lift off. Use the manipulating rod to move
it under the orange disc on the experiment sur-
face. Observe its motions. Then increase its ve-
locity by hitting it with the manipulating rod and
observe it again.
Result:
The red disc moves around the orange one on
varying paths. The parameters of the paths de-
pend greatly on the speed.
Interpretation:
These experiments provide simply illustrated con-
cept of the structure of an atom. They offer a viv-
id demonstration of the Rutherford atomic mod-
el, which was developed based on the results of
the scattering experiments.
Note:
The experiment can be varied by stacking sev-
eral orange discs and adjusting the height of the
Plexiglas plate accordingly.
