3
5. Description

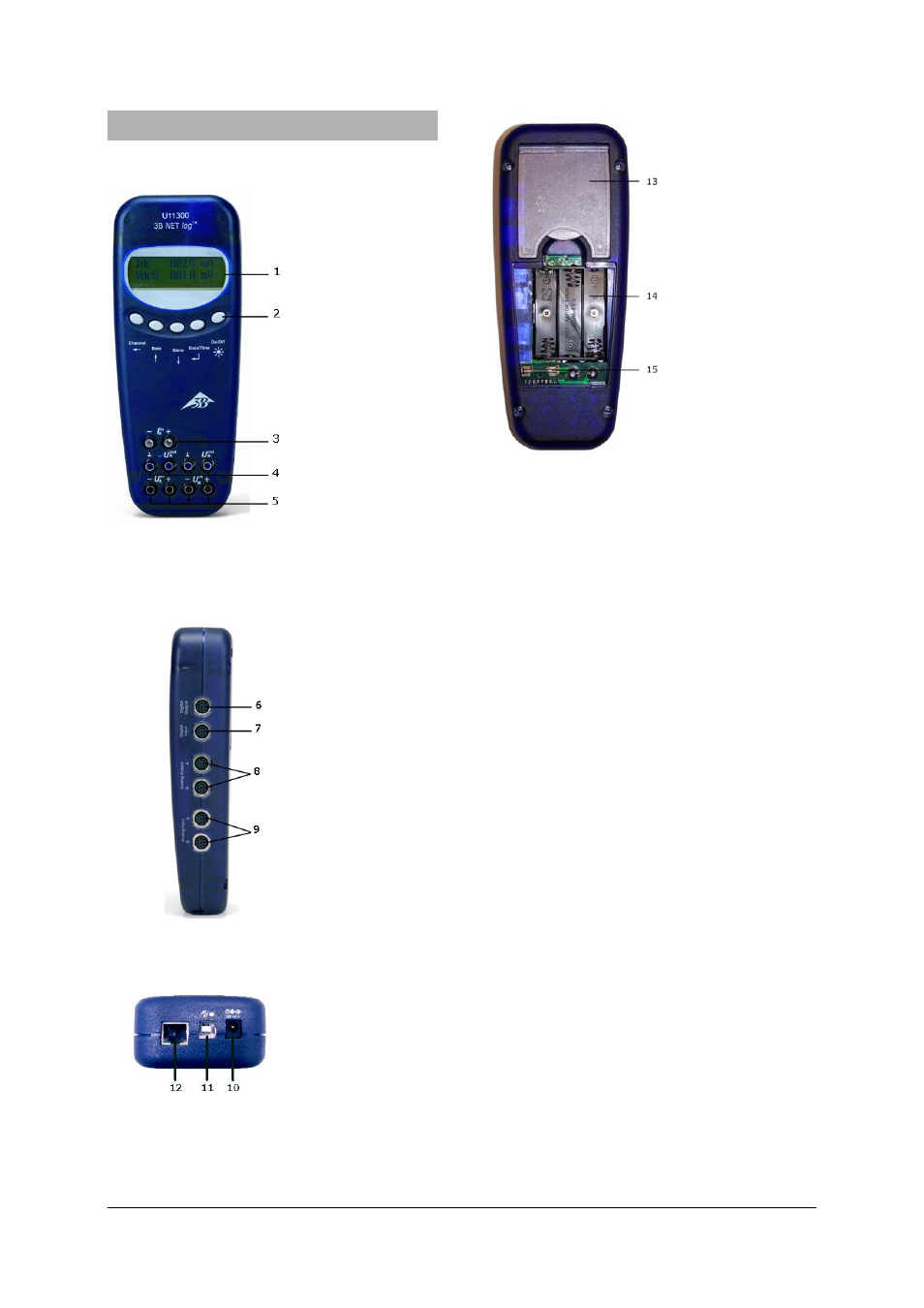

5.1 Components
1 Display
2 Operating controls
3 Current input for
channel A
4 Voltage outputs for
channels A and B
5 Voltage inputs for
channels A and B
6 Digital outputs
7 Digital inputs
8 Analogue outputs
A and B
9 Analogue inputs
A and B
10 Recessed socket for
power supply unit
11 USB connection
12 Ethernet port
13 Mount
14 Battery compartment
15 Fuse
5.2 Operating controls
The operating controls of the 3B NETlog™ unit
consist of five multi-function buttons for operation
without connection to a PC.
On/Off button
• Switching the device on and off (keep the but-
ton pressed for approx. 2 seconds to switch off
the device)
• Switching the display lighting on and off
(briefly press the button)
Date/Time button
↵
• Switching on the battery and temperature
displays
• Switching on the time display
• Switching on the date display
• Selection of operating mode (manual or auto-
matic)
• Confirming the display
→
Store button
↓
• Communication to data logger
• Scrolling down the menu
• Selecting Yes or No
• Confirming the display
↓
Rate button
↑
• Selection of sampling rate
• Scrolling up within the menu
• Selecting Yes or No
• Confirming the display
↑
