Trim Installation
Note:
To achieve desired handle rotational alignment, the cartridge MUST be tightened in a clockwise rotation only.
(Cartridge Bonnet factory torque is 14-16 ft-lbs.)
1. Thread Spout Nipple into base of spout. Attach spout base with mounting screws. Place o-ring on deck, around
deck flange. Insert spout nipple into deck flange & secure into place with set screw.
2. Placeo-ring and escutcheon over valve stem. Secure handles into place by first engaging the valve stem, then position
and hold the handlelever while rotating the bonnet and escutcheon.
3. Place o-ring onto deck, thread hand shower escutcheon onto deck flange. Attach braided hose, from diverter, to the
hand shower decorative hose and attach hand shower.
(For 2047-1 handshower, attach adapter to base of handle before connecting to decorative hose.)
4. Turn on water supply, check for leaks and make any final adjustments required.

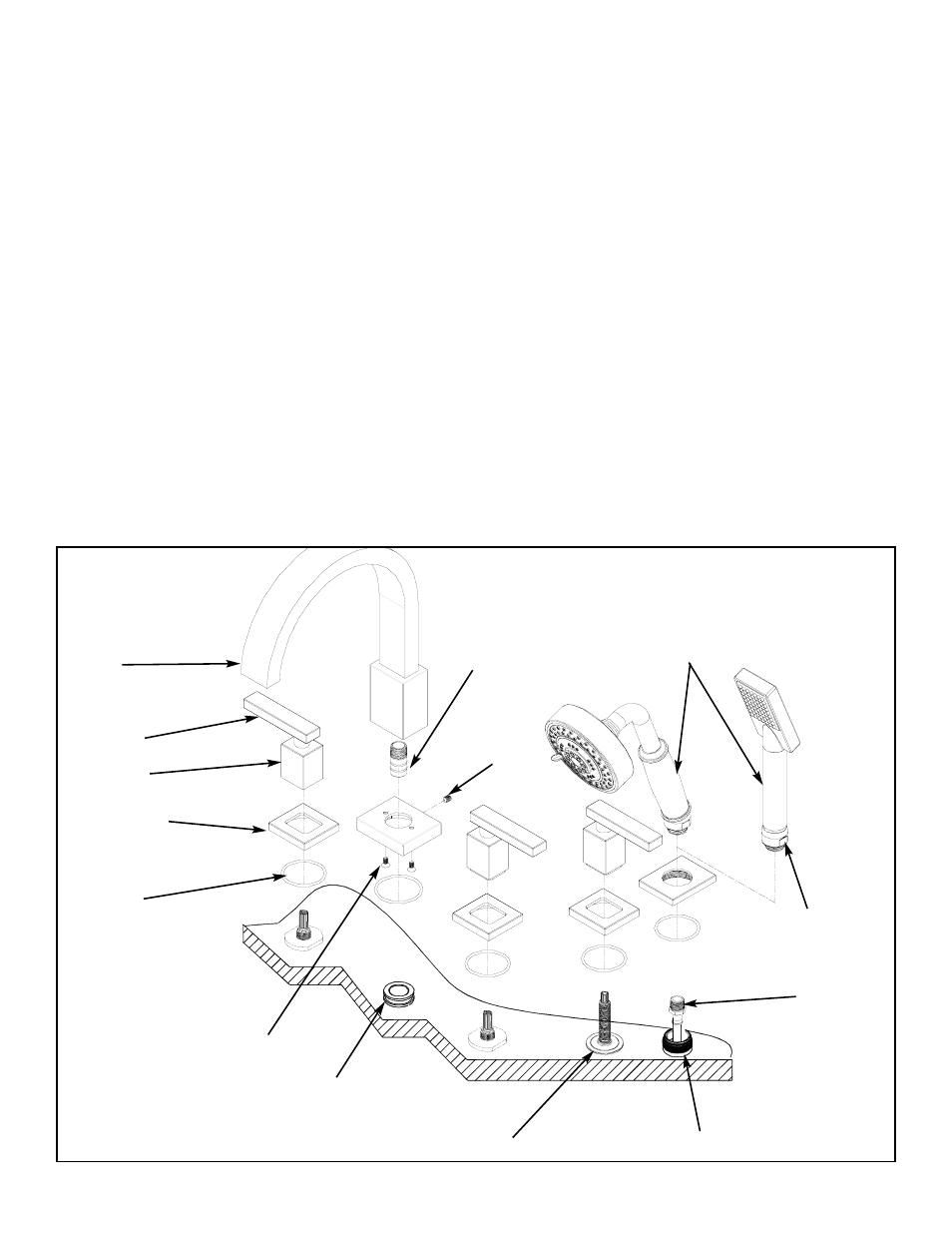

Set screw
Escutcheon**
Spout
Spout nipple
w/ O-rings
Quick connect
Deck flange
Threaded Deck Flange
Handle shower
Bonnet
Figure 3
11/09
O-ring
Adapter
Hose
Mounting
Screws
Diverter
Handle
