Newport Brass 3-220H Cube 2 - Manual

page 1 of 2 spec_ 4-2024BP_rev-a

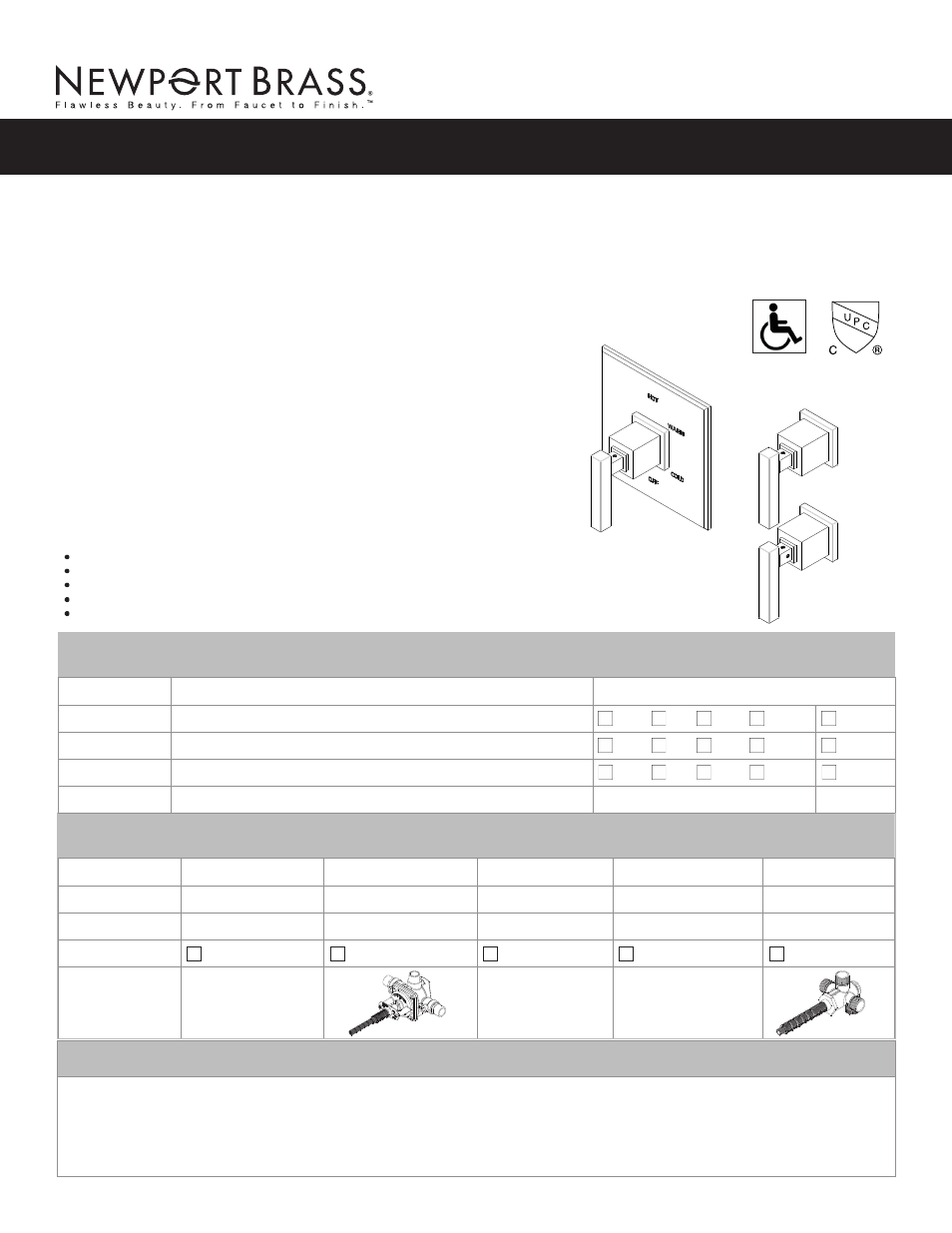

CUBE 2
Features
• Solid brass construction
• Face plate with ADA compliant contemporary lever handle
• ADA compliant contemporary lever handle assembly options for control valve
• Intended for use with Newport Brass rough valve(s) as specified (Required Accessory)
Product Specification:
The single-control Tub or Shower Trim (less tub spout or showerhead, arm & flange) shall be made of solid brass construction. Tub or
Shower Trim shall include faceplate with ADA compliant handle. Shower System Control Valve Trim(s) (Escutcheon/Handle) shall be ADA
compliant when used with specified Shower System Control Valve. Tub or Shower Trim (less tub spout or showerhead, arm & flange)
shall be Newport Brass Model 4-2024BP/____ and single-control Tub or Shower rough valve shall be Newport Brass Model 1-594. Shower
System Control Valve Trim (Escutcheon/Handle) shall be 3-220___/_____ and Shower System Control Valve shall be 1-617.
Add "Color / Finish" suffix to Model number, below.
Tub or Shower Trim
(less tub spout or showerhead, arm & flange)
4-2024BP
Also 3-220C, 3-220H
Required Accessory:
Application Tub Only Valve* Shower (or Tub) Valve Tub & Shower Valve Shower System Valve Control Valve
Description 2-Cartridge Assembly Balance Pressure (BP) BP w/ Diverter Thermostatic Diverter (3/4 port)
Inlet/Outlet Size 1/2" 1/2" 1/2" 3/4" 1/2"
Part Number
NA 1-594 NA NA 1-617
4-2024BP
3-220C
3-220H
Codes / Standards Compliance
Meets or exceeds the following at date of manufacture:
• ASME A112.18.1/CSA B125.1
• IAPMO/cUPC
• IPC
• ADA
• ICC/ANSI A117.1
• ASSE 1016
• All applicable US Federal and
State material regulations
Colors / Finishes
10B: Oil Rubbed Bronze
15: Polished Nickel
15S: Satin Nickel
26: Polished Chrome
Other: Refer to the Newport Brass catalog for additional color/finish options.
Specified Model
Model Description Colors / Finishes
4-2024BP Tub or Shower Trim (less tub spout or showerhead, arm & flange)
10B 15 15S 26 Other
3-220C Shower System Control Valve Trim (Escutcheon/Handle, Cold)
10B 15 15S 26 Other
3-220H Shower System Control Valve Trim (Escutcheon/Handle, Hot)
10B 15 15S 26 Other
Trim(s), above, and Rough Valve(s), below, must be specified.
t: 949.417.5207 | www.newportbrass.com
