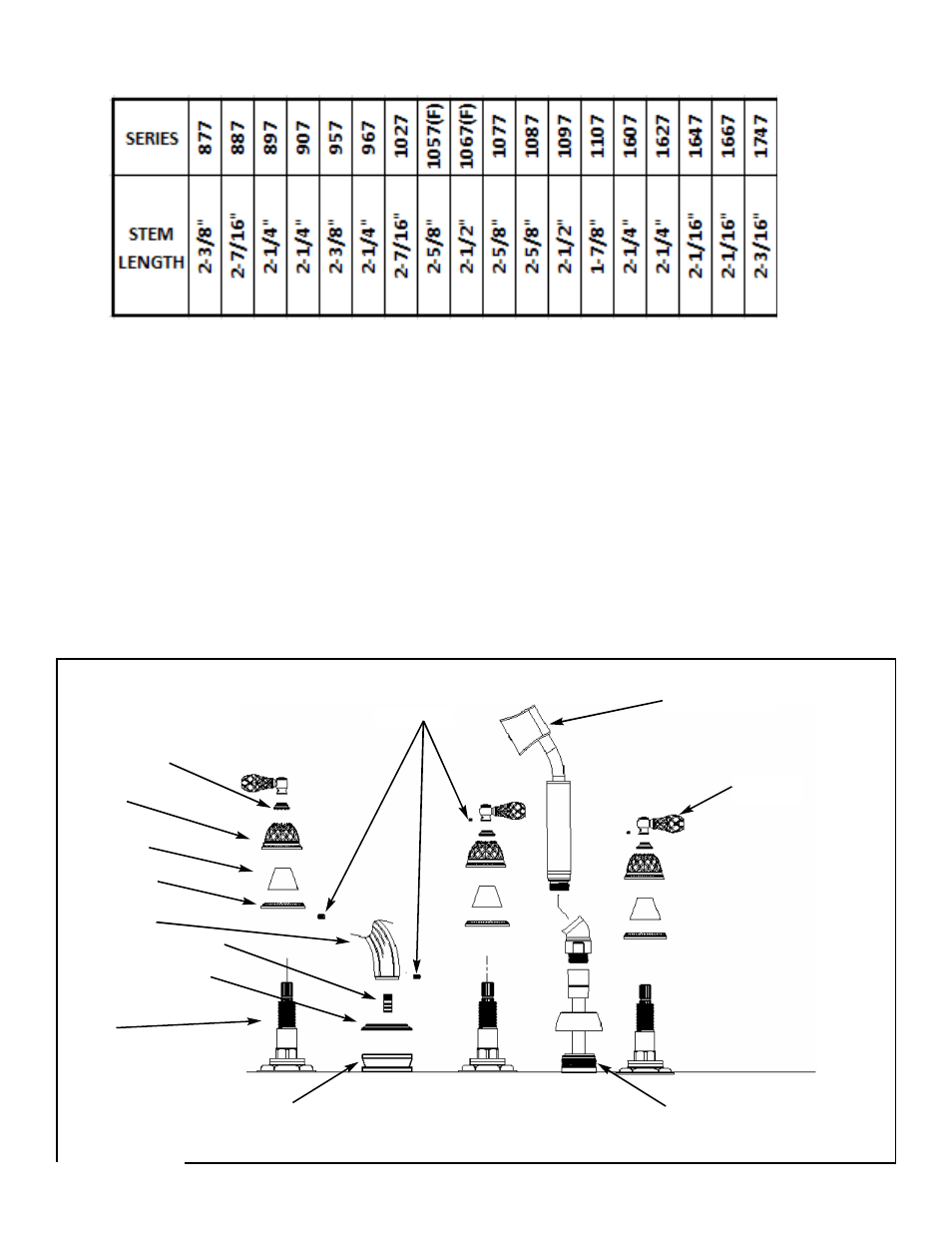

Table 1
Trim Installation
Note:
To achieve desired handle rotational alignment, the cartridge MUST be tightened in a clockwise rotation only.
(Cartridge Bonnet factory torque is 14-16 ft-lbs.)
1. Attach handle and diverter trim to valves. Any adjustments for rotational alignment must be made to the valve body
- not to the cartridge. (Note: Allow minimum spacing between handles and escutcheon/bonnet to prevent damage to
the surface finish.) Secure handles into place with setscrew.
2. Apply plumbers tape to spout nipple and install into base of spout. Slide spout nipple into quick connect deck flange
(re-grease if necessary). Make sure spout is flush with deck and secure into place with setscrew. See Figure 3.
3. Install deck flange ring. Attach braided hose, from diverter, to the hand shower decorative hose and assembly.
4. Turn on water supply, check for leaks and make any final adjustments required.
Set screw
Bonnet**
Shroud**
Escutcheon**
Spout
Spout nipple w/ O-rings
Decorative ring
Valve
Quick connect Deck
flange w/ spacer
Threaded Deck Flange
Handle shower
Handle
** Optional item based on model selected
Fig. 3
Decorative Nut**
9/14/2011
NWP-1-507
EN-1735
REV A
