Recommended Installation by a Professional Plumbing Contractor
Note: The use of petroleum base plumbers putty on our products will nullify the warranty.
We recommend the use of clear silicone sealing materials.

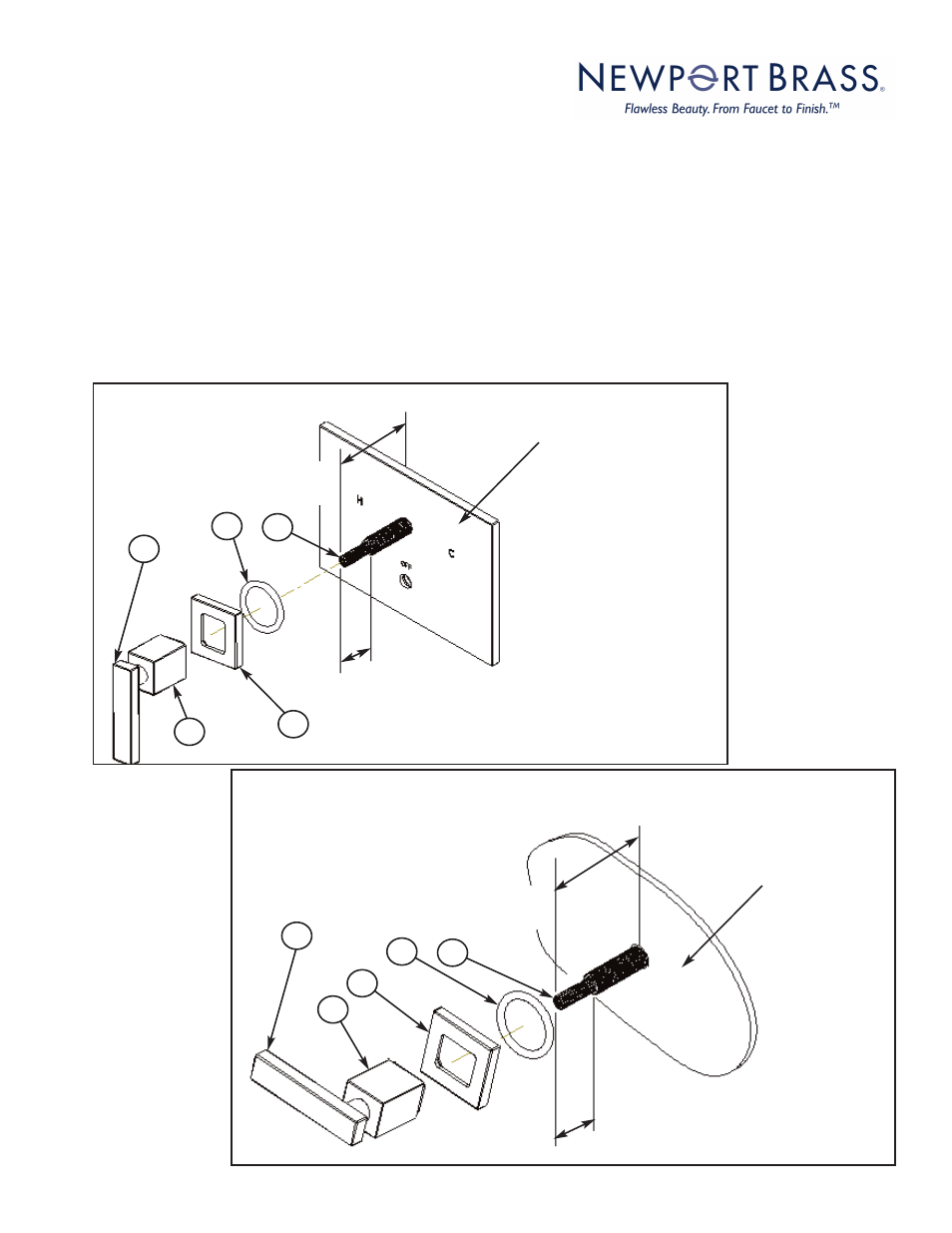

1. Place O-RING (4) and ESCUTCHEON (2) over VALVE STEM (3). Secure handle assembly into place by
first engaging the VALVE STEM (3), then position and holding the handle LEVER (5) while rotating the BON-
NET (1) and ESCUTCHEON (2). See illustrations below for variable application requirements.
1-3/4”
From Finished wall
3/4”
Typical installation for handle in applications with cover plate
1-3/8”
From Finished wall
3/4”
Typical installation for handle in applications without a cover
plate - (mounted directly to finished wall)
Finished Wall
BP Cover Plate
INSTALLATION INSTRUCTIONS
LEVER HANDLE
Model No: 3-368
4
1
2
3
5
4
1
2
3
5
(949)417-5207
NWP-3-368 Santa Ana, CA 92705 10/10/2011
www.brasstech.com
