Newport Brass 127 User Manual
Newport Brass For Home
Extension Kit
#5-004
(sold separately)
INSTALLATION INSTRUCTIONS
SOAP / LOTION DISPENSER
MODEL No's: 124, 125, 126, 127
Installation Instructions:
1. Remove the Head/Pump assembly from Dispenser.
2. Remove Bottle and Mounting Nut from Nipple.
3. With Housing, Escutcheon and Nipple assembled, place Nipple through hole in Mounting Deck (minimum hole
diameter is 1-1/8”).
4. From underside of Deck, secure into place with Mounting Nut.
5. Securely attach Bottle to Nipple.
6. Fill Dispenser Bottle, with desired liquid, to 1” below top of Housing.
7. Insert head/pump assembly into Housing.
Note: Dispenser Housing and Tube Extentions available (#5-004), but not included.

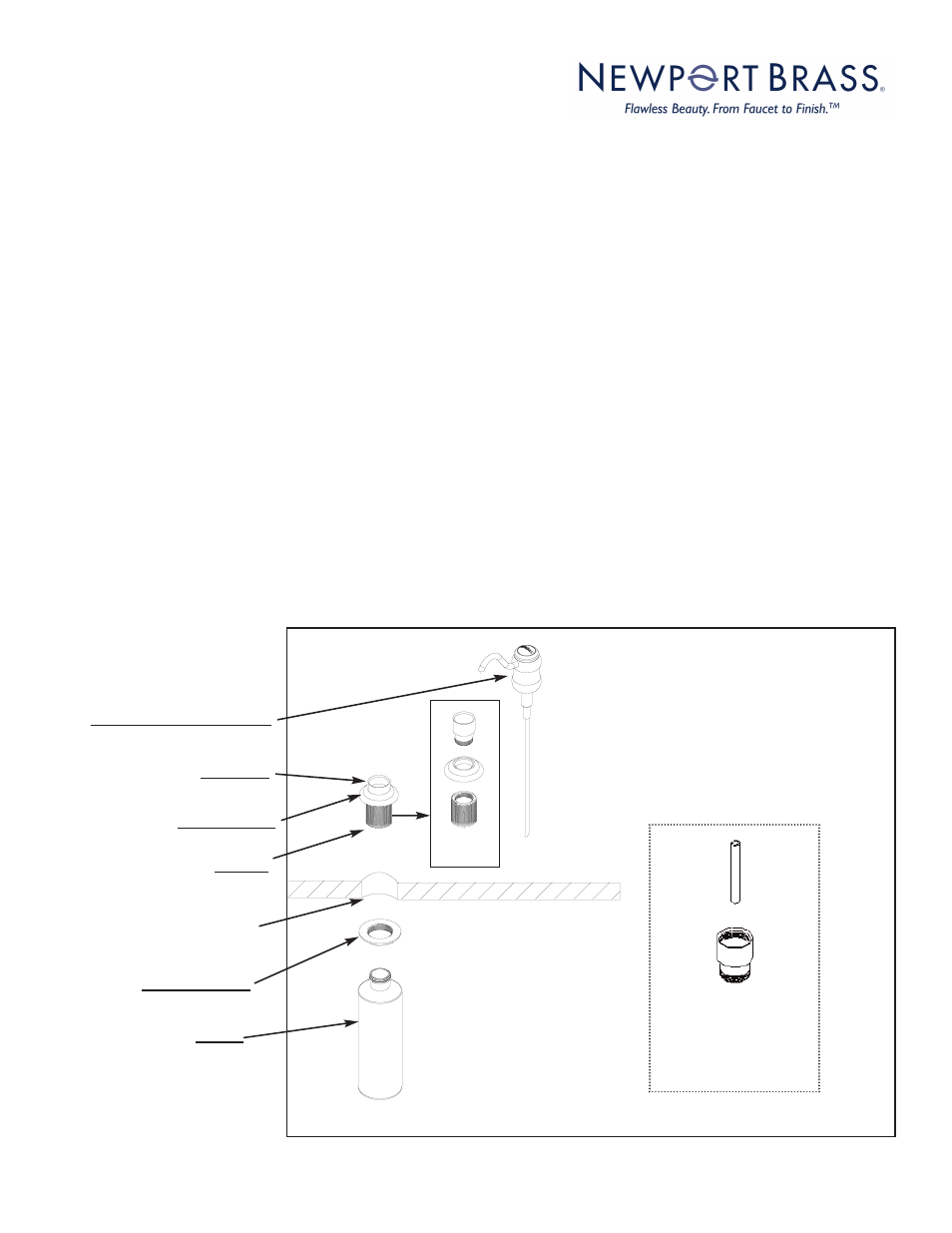

Mounting Deck
Min. hole Ø1-1/8”
Bottle
Head/pump assembly
Housing
Escutcheon
Nipple
Mounting nut
(949) 417-5207
NWP-124 Santa Ana, Ca. 92705 10/10/2011
www.brasstech.com
