Newport Brass 31-02 - Manual

Towel Bar / Towel Ring / Tissue Holder
Installation Instructions
Model No. 31-02, 31-04, 31-09, 31-28, 31-29
Recommended Installation by a Professional Contractor
1. Measure the appropriate distance between post centers. See Figure 1.
Note: Hole locations should be level.
• 24” Single Towel Bar: 24 1/4”
• 18” Double Towel Bar: 18 7/16”
• Tissue Holder (2 Post): 6 1/4”
• Tissue Holder (3 Post): 6 1/4” (2x) See Figure 2.
2. Drill hole(s) in wall at points marked using the appropriate drill size:
· Wood Screw (#6 x 2”) - use: 3/32" Drill
· Toggle Screw (6-32 x 3”) - use: 3/8" Drill
3. Dis-assemble END POST (7) and ESCUTCHEON (5) from FLANGE (1). Fasten FLANGE (1) to
wall using either WOOD/TOGGLE SCREWS (2). See Figure 3.
4a. Towel Bar: Assemble TOWEL BAR (6) between END POST (7). With ESCUTCHEON (5) place
onto FLANGE (1). Secure onto place with SETSCREW (4). See Figure 4.
4b.Towel Ring: Place END POST (7) with ESCUTCHEON (5) onto FLANGE (1). Secure into place
with SETSCREW (4). See Figure 5.
4c.Tissue Holder (2 & 3 Post): Place END POST (7) with ESCUTCHEON (5) onto FLANGE (1).
Secure into place with SETSCREW (4). Place HOLDER (10) between END POST (7). See
Figure 6.

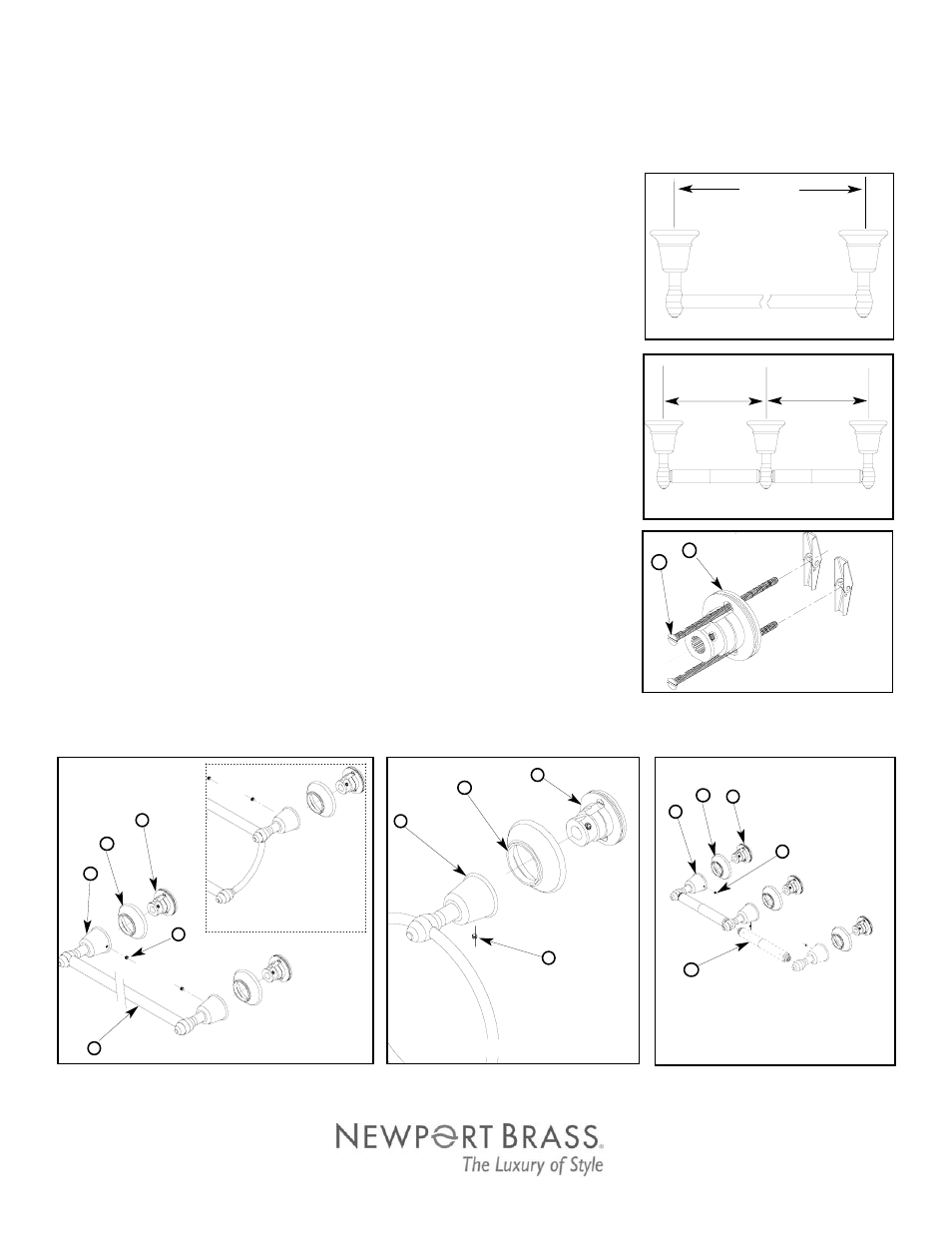

Fig. 1
