Newport Brass 3-1776 Victoria - Manual (Page 3)

9/20/06
Trim Installation
Note:To achieve desired handle rotational alignment, the cartridge MUST be tightened in a clockwise rotation
only.
(Cartridge Bonnet factory torque is 14-16 ft-lbs.)
4. Attach handle trim to valve.When possible, any adjustments for rotational alignment should be made to the
valve body - not to the cartridge. (Note: Allow minimum spacing between handles and escutcheon/bonnet to
prevent damage to the surface finish.) Secure handles into place with screw and press cap into top of handle.
See Fig. 3
5. Slide Base Ring** onto Spout Assembly, exposing the setscrew. Align and press spout assembly onto quick
connect deck flange. Make sure spout is flush with deck. Secure spout onto quick connect with setscrew. See
Fig. 3
6.Turn on water supply, check for leaks and make any final adjustments required.
** Optional item based on model selected
TABLE 1
SERIES
1766 1776
STEM
LENGTH
2 " 2 "

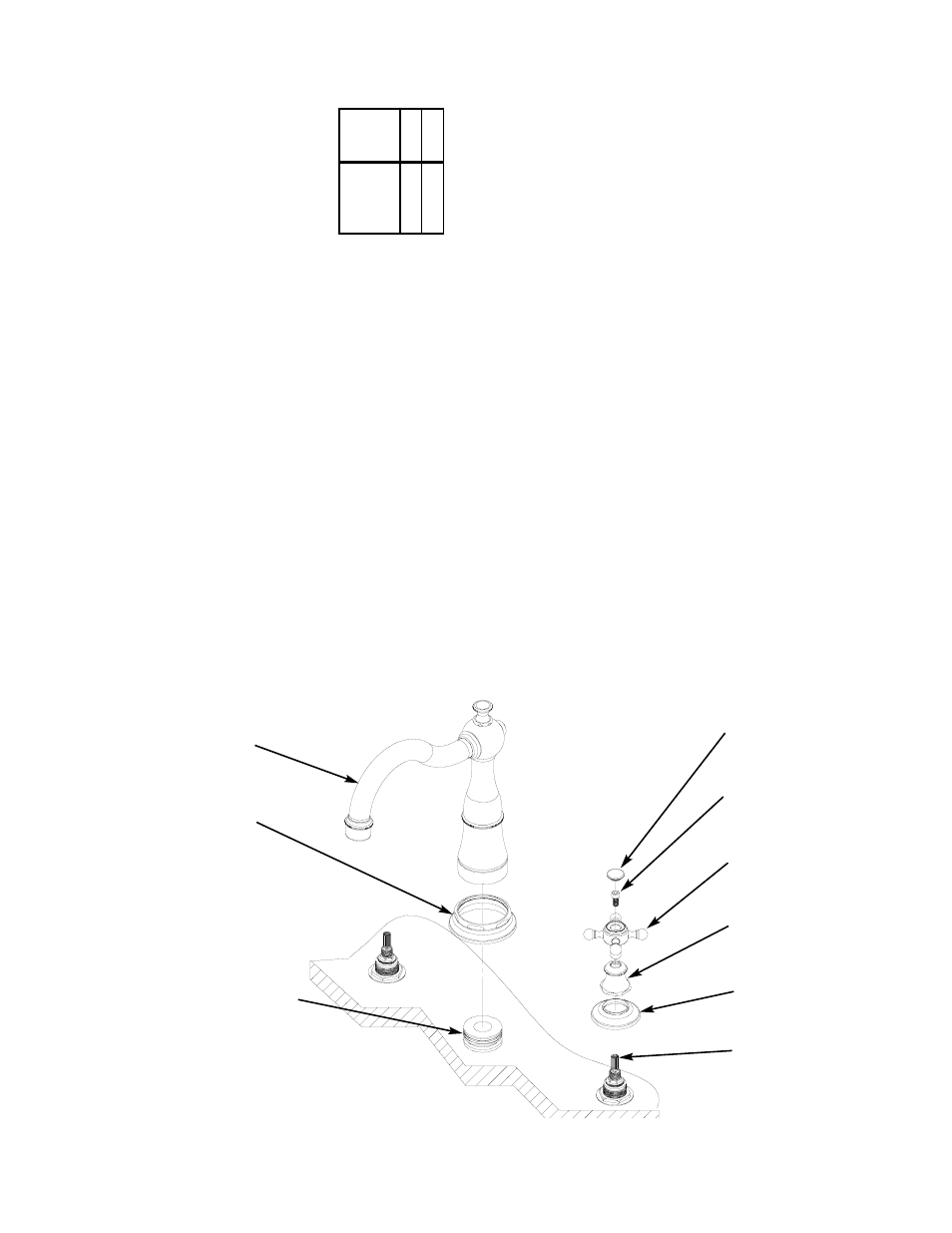

Figure 3
Spout
Assembly
**Base Ring
Deck Flange
Quick Connect
**Cap
**Screw
Handle
**Bonnet
Escutcheon
Valve
