Installation Notes:
The (8)#10 screws provided are for installation into wood, (proper installation requires all 8 be used). The
installer should provide hardware for other installation applications. Use flat head fasteners only.
This product has been tested to meet or exceed loads mandated by the Americans with disabilities act and
ASTM F446, (minimum 250lbs). However, it is the responsibility of the architect, builder and installer to
ensure that the mounting area is secure and that proper mounting hardware is used.
Installation:
1. Locate grab bar as required and mark hole pattern.
2. Remove grab bar and pre-drill hole pattern for #10 screws (8 places)
3. Install o-ring onto grab bar flange
4. Where applicable, install decorative ring onto end of flange.
5. Locate grab bar, o-ring and decorative ring into place by aligning pre-drilled holes and flange hole pattern.
6. Attach to mounting surface using all 8 screws provided.
7. Slide escutcheon around bend and press into place over flange o-ring. Wetting o-ring aids installation.
8/01/02

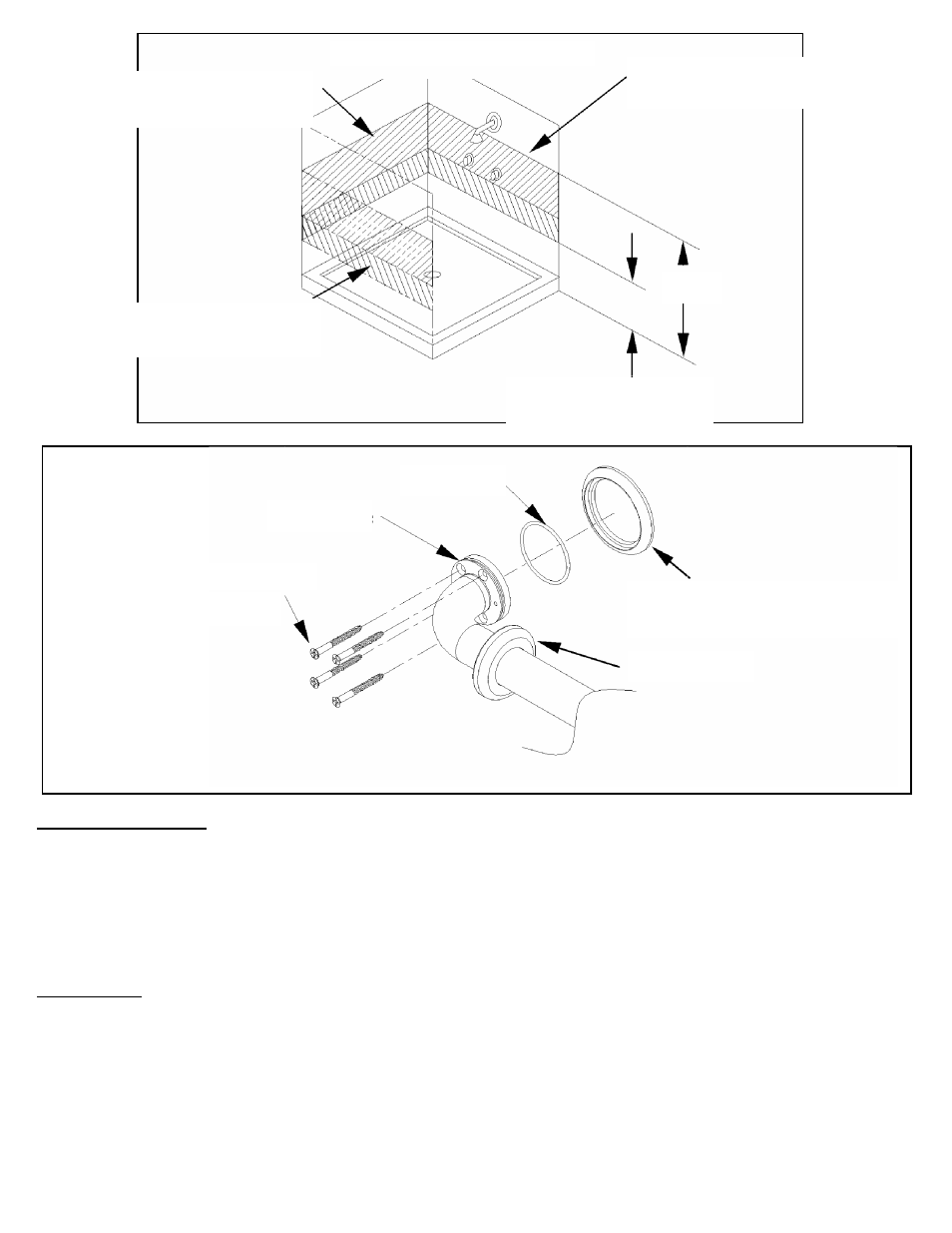

CRITICAL SUPPORT
AREA BACK WALL
CRITICAL SUPPORT
AREA SERVICE WALL
CRITICAL SUPPORT
AREA NON-SERVICE
SHOWER BATHING AREA
24” (3 WALL STALL)
32” (2 WALL STALL)
48”
Flange
O-ring
#10 Wood screws
Escutcheon
Decorative Ring
(not common to all designs)
