Trim Installation
Note:
To achieve desired handle rotational alignment, the cartridge MUST be tightened in a clockwise rotation only.
(Cartridge Bonnet factory torque is 14-16 ft-lbs.)
1. Place escutcheon over valve stem. Secure handle assembly into place by first engaging the valve stem, then
position and hold the handle lever while rotating the bonnet. Any adjustments for rotational alignment must
be made to the valve body, not to the cartidge. See Fig 3.
2. Apply plumbers tape to spout nipple and install into quick connect spout shank. Slide spout base onto
spout (re-grease if necessary). Make sure spout bottoms out onto quick connect spout and then secure in
place with setscrews.See Fig. 3.
3. Install plastic insert into hand shower deck flange.
4. Turn on water supply, check for leaks and make any final adjustments required.
NWP-1-678
EN-2406
REV -

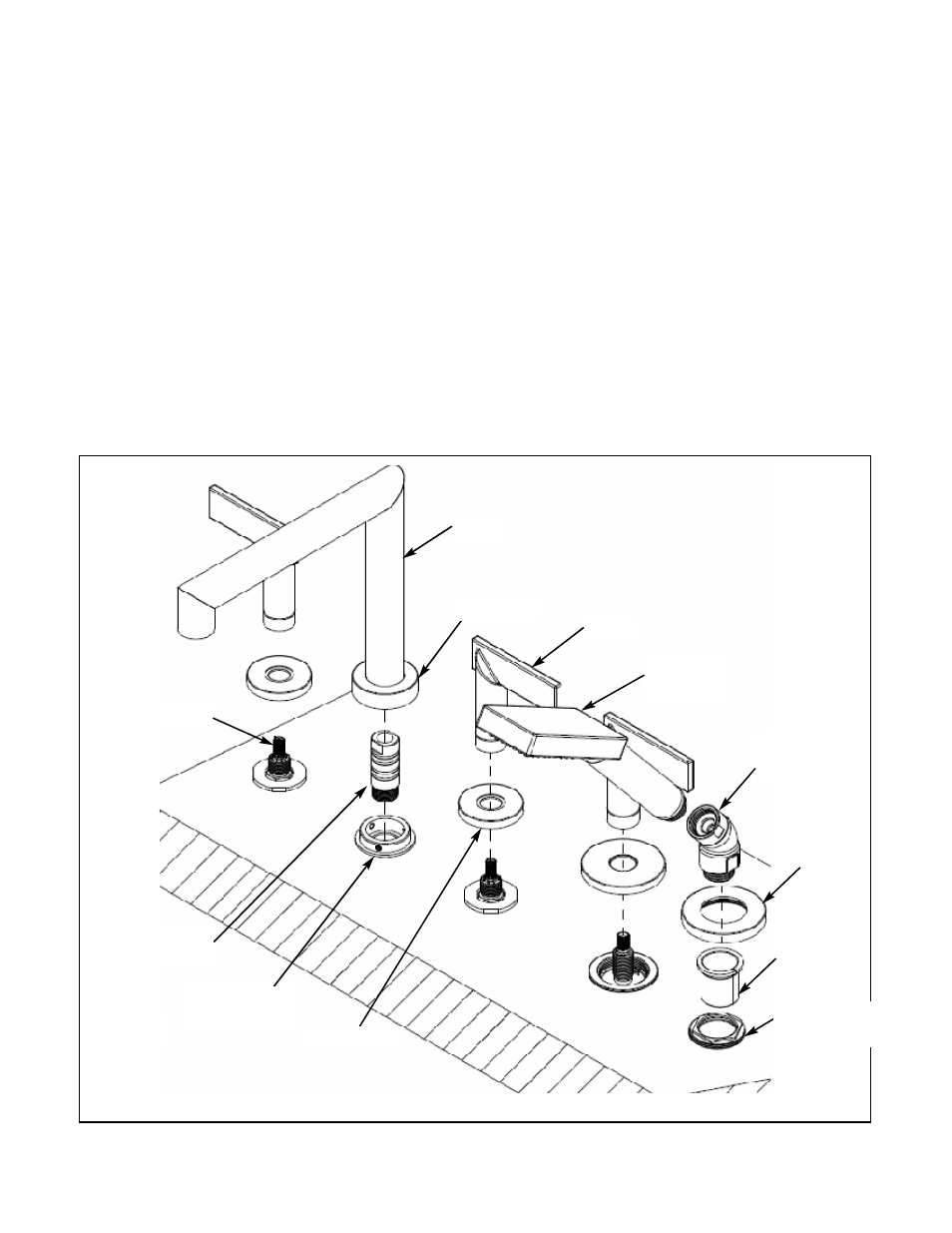

Fig. 3
Spout
Spout base
Spout nipple
w/ o-rings
quick connect
spout shank
Lever
Escutcheon
Valve stem
Handspray
assembly
Hand shower
elbow asm
Plastic
Insert
Flange
ring
Hand shower
deck flange
