Newport Brass 38-02 User Manual
Page 2

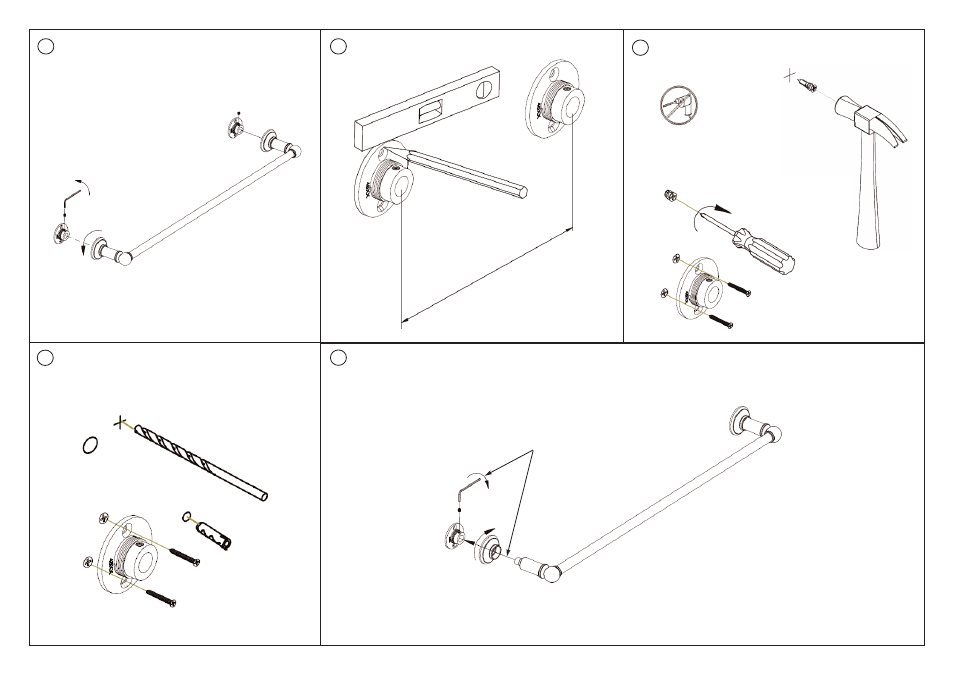

1
2
3
4
5
REMOVE MOUNTING FLANGES
ALIGN MOUNTING FLANGES AND MARK LOCATION
DRY WALL INSTALLATION
24”
DO NOT DRILL
USE MARKS
MADE IN STEP 2
TILE OR SOLID WALL INSTALLATION
USE MARKS MADE IN STEP 2
DRILL 1/4” (6mm)
INSERT TILE ANCHOR
SECURE WITH SET SCREW
REV -
TAP IN UNTIL
THREADS ARE
REACHED
INSTALL PRODUCT ONTO FLANGES
STEP 1b
STEP 1a
STEP 5b
STEP 5c
STEP 5a
