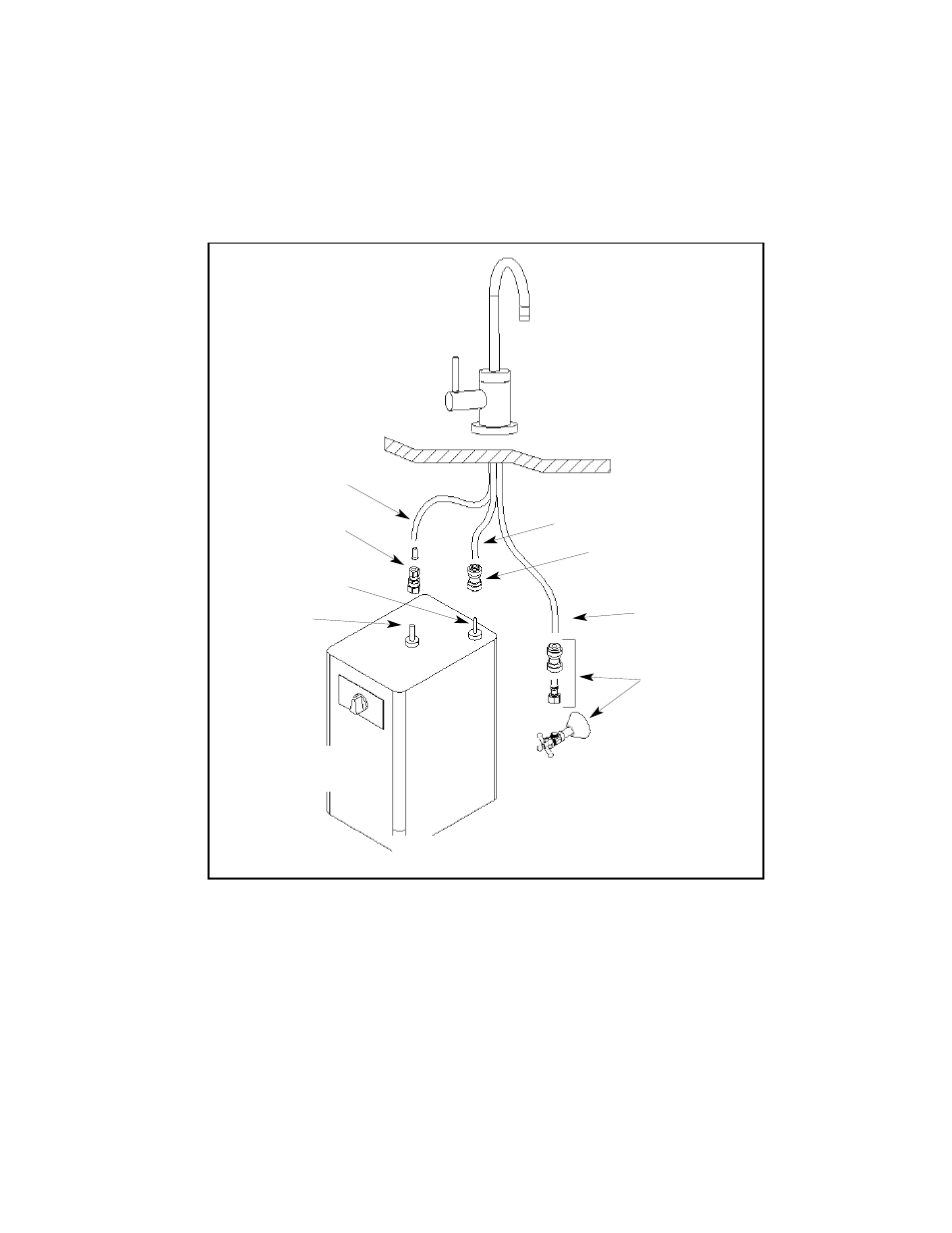

Figure 2 – Newport Brass 2500-5613 User Manual
Page 3
ATTACHING WATER CONNECTIONS TO SUPPLY AND TANK (See Fig 2)
· Connect blue tube to copper tubing of water supply, utilizing a compression nut or connec-
tor coupling (not included).
· Connect clear tube to heater tank outlet, utilizing brass coupling & insert.
· Connect red tube to heater tank inlet, utilizing connector coupling (not included).
Figure 2
3. TEST INSTALLED FAUCET
· Turn on water supply. Rotate the hot handle and hold until the tank fills up, (tank is full when
water comes out of the spout). Rotate hot handle to turn water off.
· Check all connections for leaks. Make any final adjustments as required by first turning off the
water supply to relieve the pressure.
· Plug in the water tank and wait between 10-15 minutes for water to reach its target tem-
perature.
