Trim Installation

Note:To achieve desired handle rotational alignment, the cartridge MUST be tightened in a clockwise rotation
only.
(Cartridge Bonnet factory torque is 14-16 ft-lbs.)

1. Attach handle trim and diverter trim to valves. Any adjustments for rotational alignment must be made to

the valve body - not to the cartridge. (Note: Allow minimum spacing between handles and escutcheon/bon-
net to prevent damage to the surface finish.) Secure handles into place with setscrew. See Figure 3

2. Apply Teflon tape to spout nipple and install into base of spout. Slide spout nipple into quick connect deck

flange (re-grease if necessary). Make sure spout is flush with deck and secure into place with setscrew. See
Figure 3.

3. Install decorative ring to threaded deck flange. Attach braided hose, from diverter, to hand shower decora-

tive hose and assembly.

4.Turn on water supply, check for leaks and make any final adjustments required.

Set screw

Escutcheon

Spout

Spout nipple w/ O-rings

Quick connect
Deck flange

Threaded Deck Flange

Hand shower

Handle

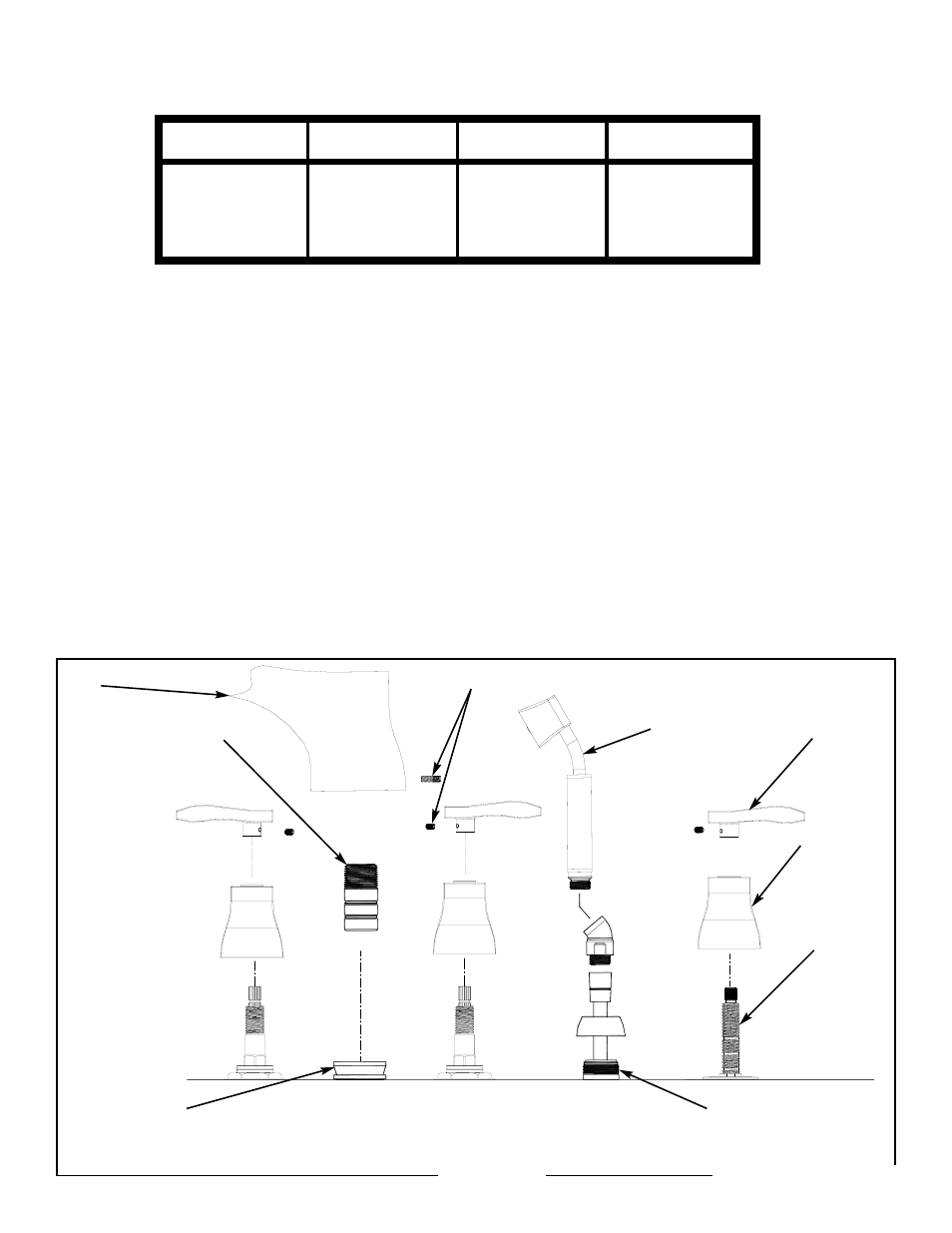

Figure 3

Valve

12/01/06

Series

1047

1707

1727

Stem

Height

2 7/8"

3 1/16"

3 1/16"

Table 1
