Newport Brass 280C - Manual (Page 2)

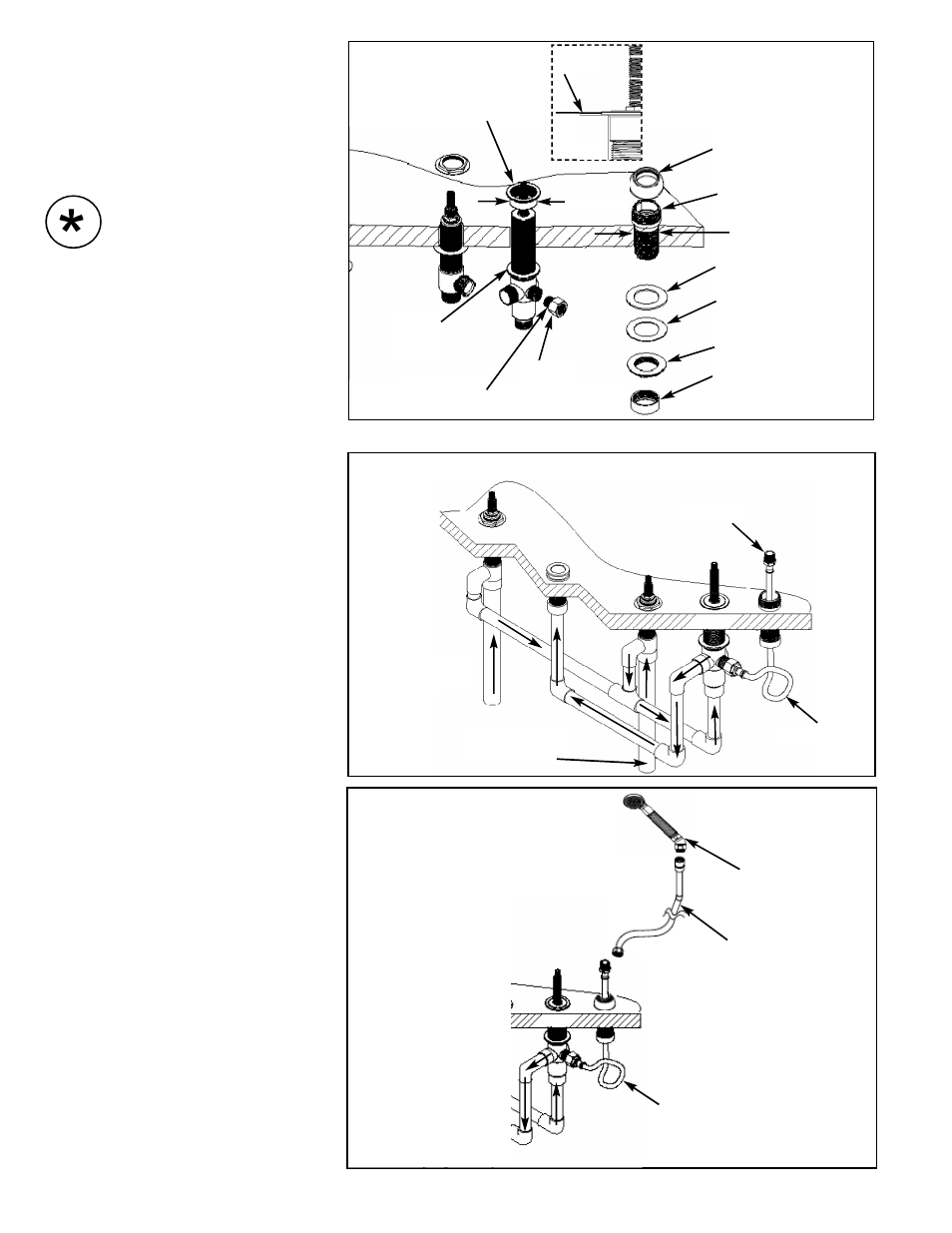

Fig. 1
Ø1-7/16”
Hand shower
Deck Flange
Rubber
Washer
Steel
Washer
Flange nut
Hose guide
Hand
shower
Adapter
Upper
Flange
nut
Lower
Flange
nut
Apply thread
sealant
Finished
deck
Figure 1a
1/2”NPT
Inlet for hot
water supply
Inlet for cold
water supply
NWP-280c
REV -
Note: Some states require a
ASSE 1016 approved
Tempering Valve installation
with this product. See dis-
claimer (page 3) for proper
installation
Escutcheon
2. Attach No. 290 hose to
diverter using handshower
adapter. Install deck flange.
See Fig.1 and Fig.2
3. Attach No. 284 hose to
No.290 hose. Turn water on to
verify for leaks and clean line of
debris.Attach Hand Shower to
No. 284 Hose.See Fig. 3.
Hand shower
No 290 Hose
No. 284 Hose
1. Install Hand Shower Deck
Flange and Escutcheon
See Fig 1.
1-1/4” Dia
No 290 Hose
Fig. 2
Fig. 3
