Newport Brass 3203 Brasstech User Manual
Lavatory drain installation instructions
LAVATORY DRAIN
INSTALLATION INSTRUCTIONS
MODEL No's: 320, 3201, 3202, 3203
Installation instructions:
1. Assemble Stopper, O-ring, Post & Flange. Secure with Screw.
2. Thread flange Nut on Tailpipe.Place washers on Tailpipe and insert through drain hole from underside of sink basin.
3. Thread Tailpipe to Flange/Stopper assemble. Note: Recommendedto add a clear silicone adhesive between Flange and Sink basin
to seal.
4. Tailpipe to be recieved by existing P-Trap.
(949) 417-5207
BRS-320 Santa Ana, Ca. 92705 7/31/2003
www.brasstech.com

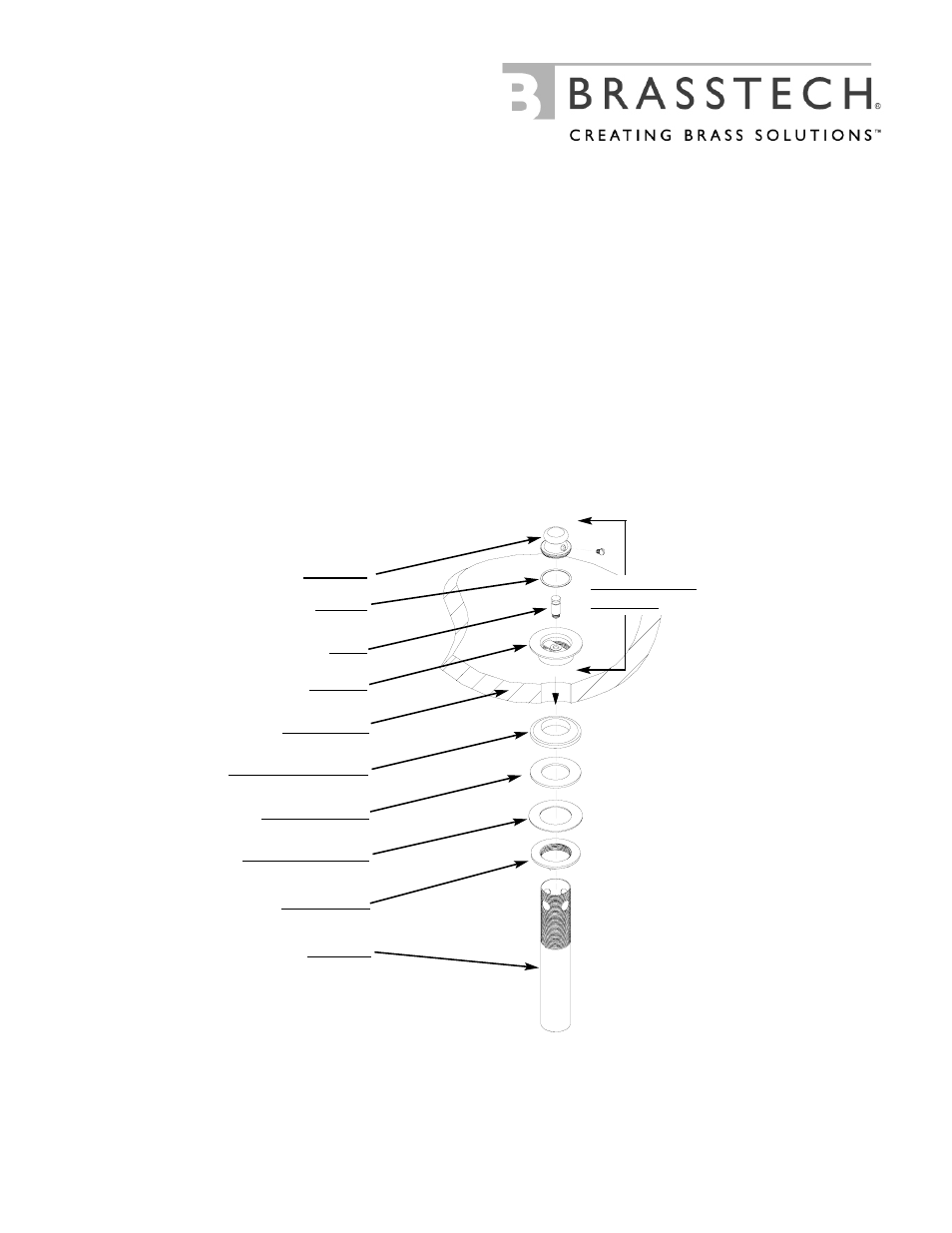

Sink basin
Concave washer
O-ring
Post
Flange
Steel washer
Rubber washer
Flange nut
Tailpipe
Stopper
Flange/Stopper
Assembly
