Figure 1 – Newport Brass 2008 User Manual
Page 2

NWP-2007
Recommended Installation by a Professional Plumbing Contractor
Note: The use of petroleum base plumbers putty on our products will nullify the
warranty. We recommend the use of clear silicone sealing materials.
Recommended deck thru hole Ø 1.25" to Ø1.38
1.
INSTALLING FAUCET ON SINK
(See Fig 1)
· Slide the BASE (2) over STUD (1).
· Place O-RING (3) between BASE (2) and deck surface.
· Align STUD (1) to the left of sink. Place GASKET (4), CRESCENT (5), and NUT (6) onto
STUD (1).
· Firmly tighten NUT (6) with wrench.
Cold
Hot

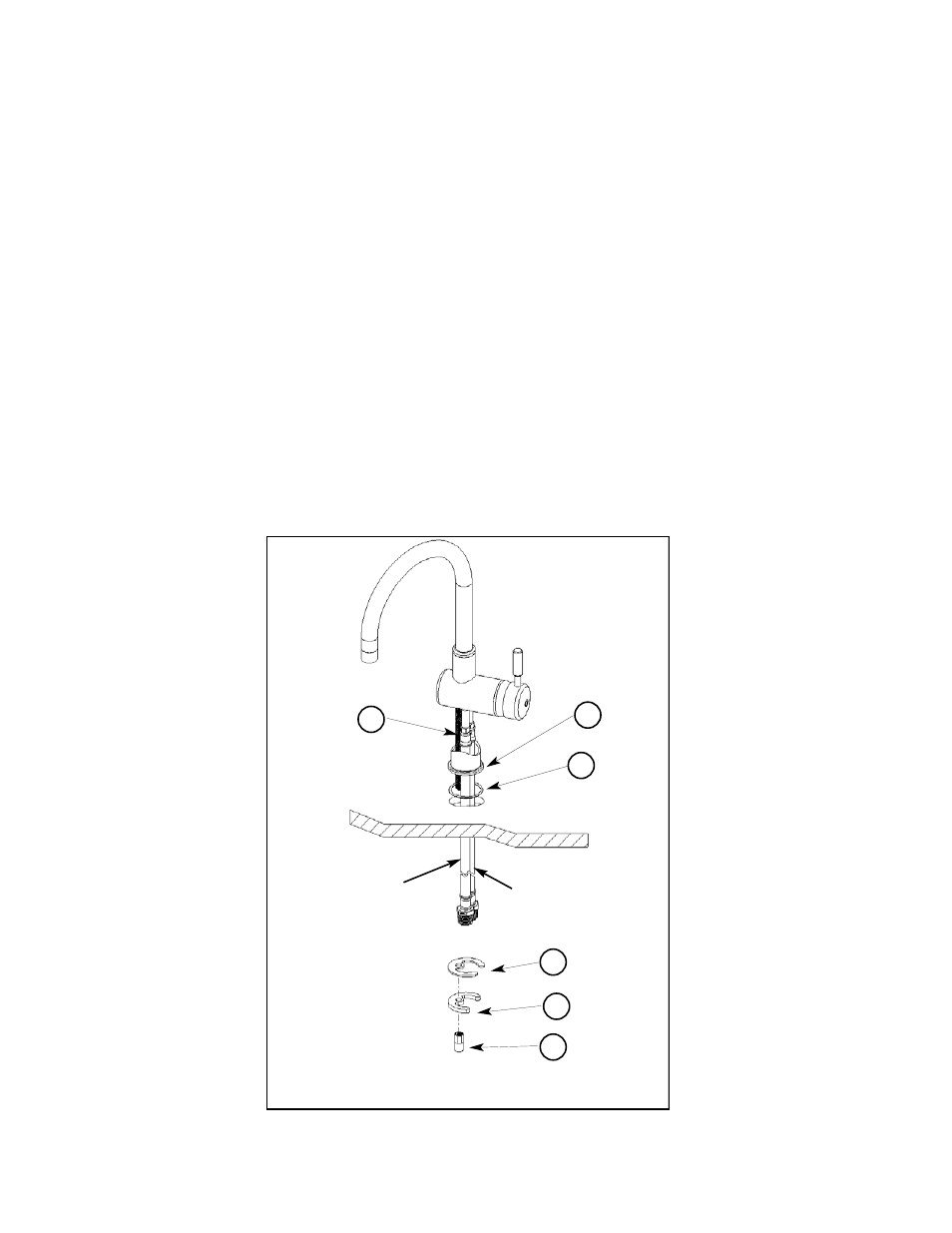

Figure 1
1
2
3
6
5
4
