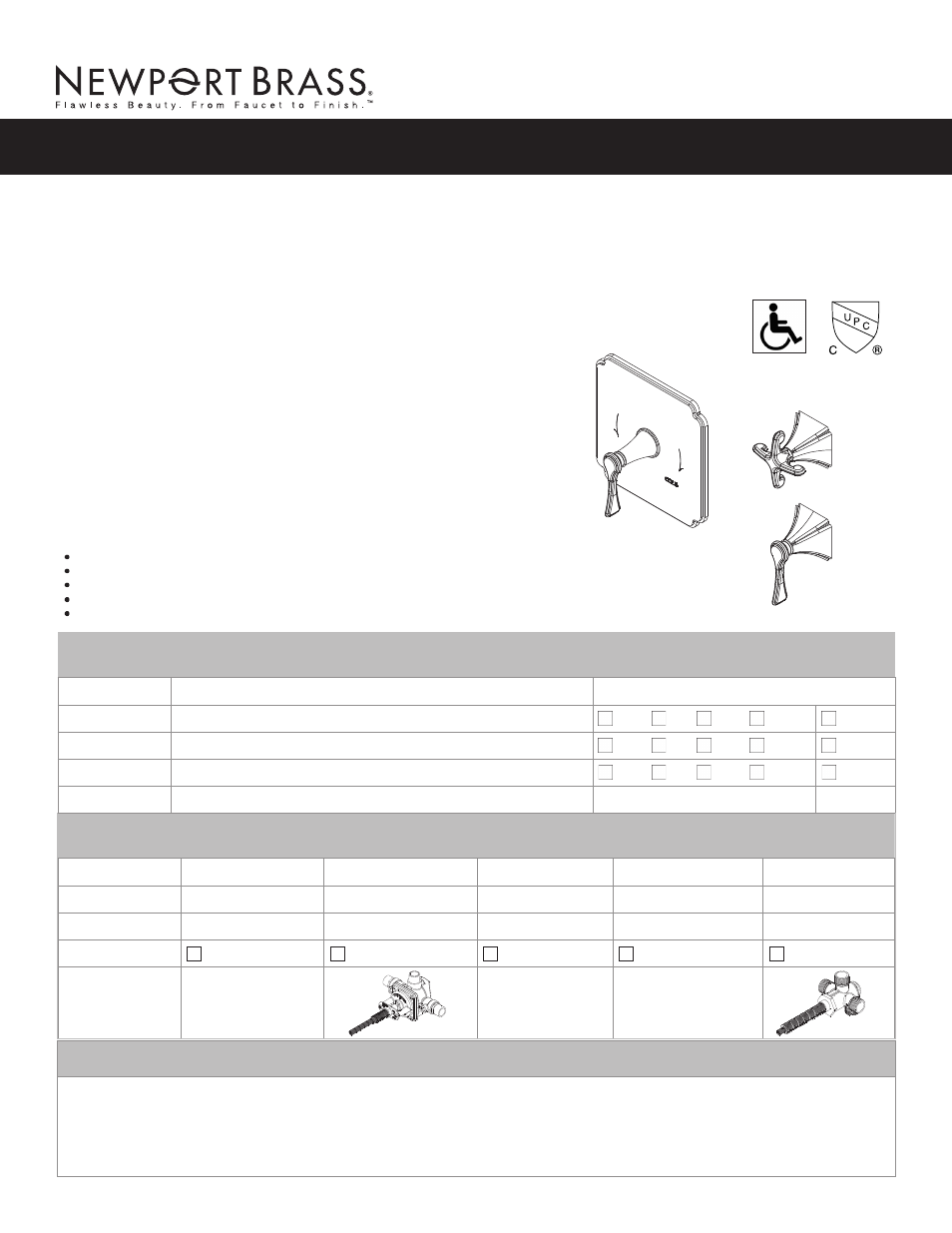

background image

page 1 of 2

spec_ 4-2534BP_rev-a

KIARA

Features

• Solid brass construction

• Face plate with ADA compliant traditional lever handle

• ADA compliant traditional lever and cross handle assembly options for control valve

• Intended for use with Newport Brass rough valve(s) as specified (Required Accessory)

Product Specification:

The single-control Tub or Shower Trim (less tub spout or showerhead, arm & flange) shall be made of solid brass construction. Tub or
Shower Trim shall include faceplate with ADA compliant handle. Shower System Control Valve Trim(s) (Escutcheon/Handle) shall be ADA
compliant when used with specified Shower System Control Valve. Tub or Shower Trim (less tub spout or showerhead, arm & flange)
shall be Newport Brass Model 4-2534BP/____ and single-control Tub or Shower rough valve shall be Newport Brass Model 1-594. Shower
System Control Valve Trim(s) (Handle/Escutcheon) shall be 3-42___/_____ (and 3-42___/______) and Shower System Control Valve
shall be 1-618.

Add "Color / Finish" suffix to Model number, below.

Tub or Shower Trim

(less tub spout or showerhead, arm & flange)

4-2534BP

Also 3-423, 3-424

Required Accessory:

Application

Tub Only Valve*

Shower (or Tub) Valve

Tub & Shower Valve

Shower System Valve

Control Valve

Description

2-Cartridge Assembly

Balance Pressure (BP)

BP w/ Diverter

Thermostatic

Diverter (3/4 port)

Inlet/Outlet Size

1/2"

1/2"

1/2"

3/4"

1/2"

Part Number

NA

1-594

NA

NA

1-618


4-2534BP

3-423

3-424

Codes / Standards Compliance

Meets or exceeds the following at date of manufacture:

• ASME A112.18.1/CSA B125.1

• IAPMO/cUPC

• IPC

• ADA

• ICC/ANSI A117.1

• ASSE 1016

• All applicable US Federal and

State material regulations

Colors / Finishes

10B: Oil Rubbed Bronze

15: Polished Nickel

15S: Satin Nickel

26: Polished Chrome

Other: Refer to the Newport Brass catalog for additional color/finish options.

Specified Model

Model

Description

Colors / Finishes

4-2534BP

Tub or Shower Trim (less tub spout or showerhead, arm & flange)

10B 15 15S 26

Other

3-423

Shower System Control Valve Trim (Escutcheon/Handle)

10B 15 15S 26

Other

3-424

Shower System Control Valve Trim (Escutcheon/Handle)

10B 15 15S 26

Other

Trim(s), above, and Rough Valve(s), below, must be specified.

t: 949.417.5207 | www.newportbrass.com
