Newport Brass 2470-5313 User Manual
Page 2
NWP-2470-5313
Recommended Installation by a Professional Plumbing Contractor
Note: The use of petroleum base plumbers putty on our products will nullify the warranty. We recommend
the use of clear silicone sealing materials.
If mounting faucet to stainless steel rim, an under-mount support, (e.g. wood, appropriate size x 1/2”
thick), should be utilized.

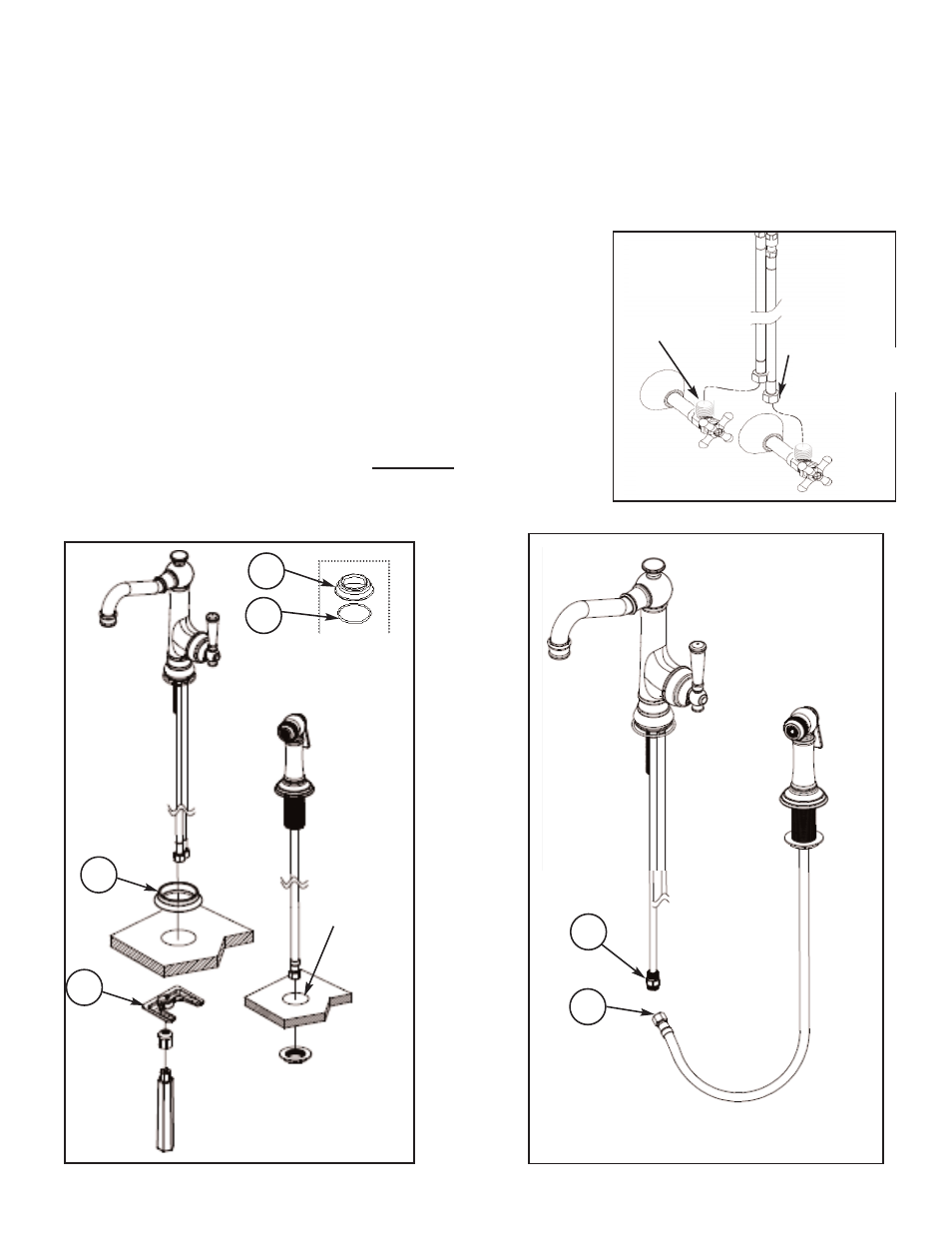

1. Drill hole in mounting surface. Recommended deck hole Ø1.500”
not to exceed Ø1.562”.
2. Place O-ring (2) on underside of base RING (1). See Figure 1a.
3. Insert Hoses through base RING (1) and hole in mounting surface.
Secure into place with MOUNTING KIT (3). See Figure 1.
4. Attach hot/cold spout supply directly to valves in the wall. See Fig. 2
5. With faucet in the OFF position, open water supplies valves.
Inspect connections under sink for leaks. DO NOT turn faucet on yet.
6. Connect female connector of SIDESPRAY HOSE (4) to main body
SIDESPRAY OUTLET male adaptor (5) See Fig. 3.
Figure 2
Wall valves
(not included)
REV A
Figure 3
5
4
9/16-24 UNEF (FOR
3/8” COMPRESSION
OUTLET )
3/8” COMPRESSION
OUTLET )
1
2
Figure 1
Figure 1a
Mounting
surface
hole
3
1
