Newport Brass 2500-5503 - Manual (Page 2)

Recommended Installation by a Professional Plumbing Contractor
Note:
I. Framing support is required for mounting flange to ensure sufficient strength of installation.
II. While drilling, extreme care should be taken to avoid damage to hidden electrical or plumbing lines.
III. Pot filler may get hot when arm is positioned above the stove’s burner. Swing the pot filler arm away from
the stove after use.
IV. The use of petroleum based plumbers putty on this product will nullify the warranty. We recommend the
use of silicone based sealing materials as needed.
Installa tion:
1. Shut off water supply. Tap into existing cold water supply and run to desired location on the wall. 1/2 NPT
connection (not supplied) is required and should protrude 1/2” out from finished wall. Apply thread
sealant to protruding end of 1/2 NPT. See Figure 1.
2. Center and secure the mounting FLANGE (1) over 1/2 NPT water supply with SCREWS (2) provided. See
Figure 2.
3. Insert thread SPOUT ASSEMBLY (4) onto MOUNTING FLANGE (3) and thread onto 1/2 NPT water sup-
ply. See Figure 4.
.
4. Tighten the SET SCREW (5) to secure SPOUT ASSEMBLY (4) to mounting FLANGE (1). See Figure 5.
5. Remove AERATOR (7) from SPOUT ASSEMBLY (4). See Figure 6. Turn on water supply and check for
leaks. Repair as needed. Open valve and run water through SPOUT ASSEMBLY (4) to remove debris. Check
for leaks and make any final adjustments required. Re-attach AERATOR (7) to SPOUT (4).
NWP-2500-5503
1/2”
MAX
Ø1-3/16”
(30mm)
Face of tile
1/2 NPT
(not included)

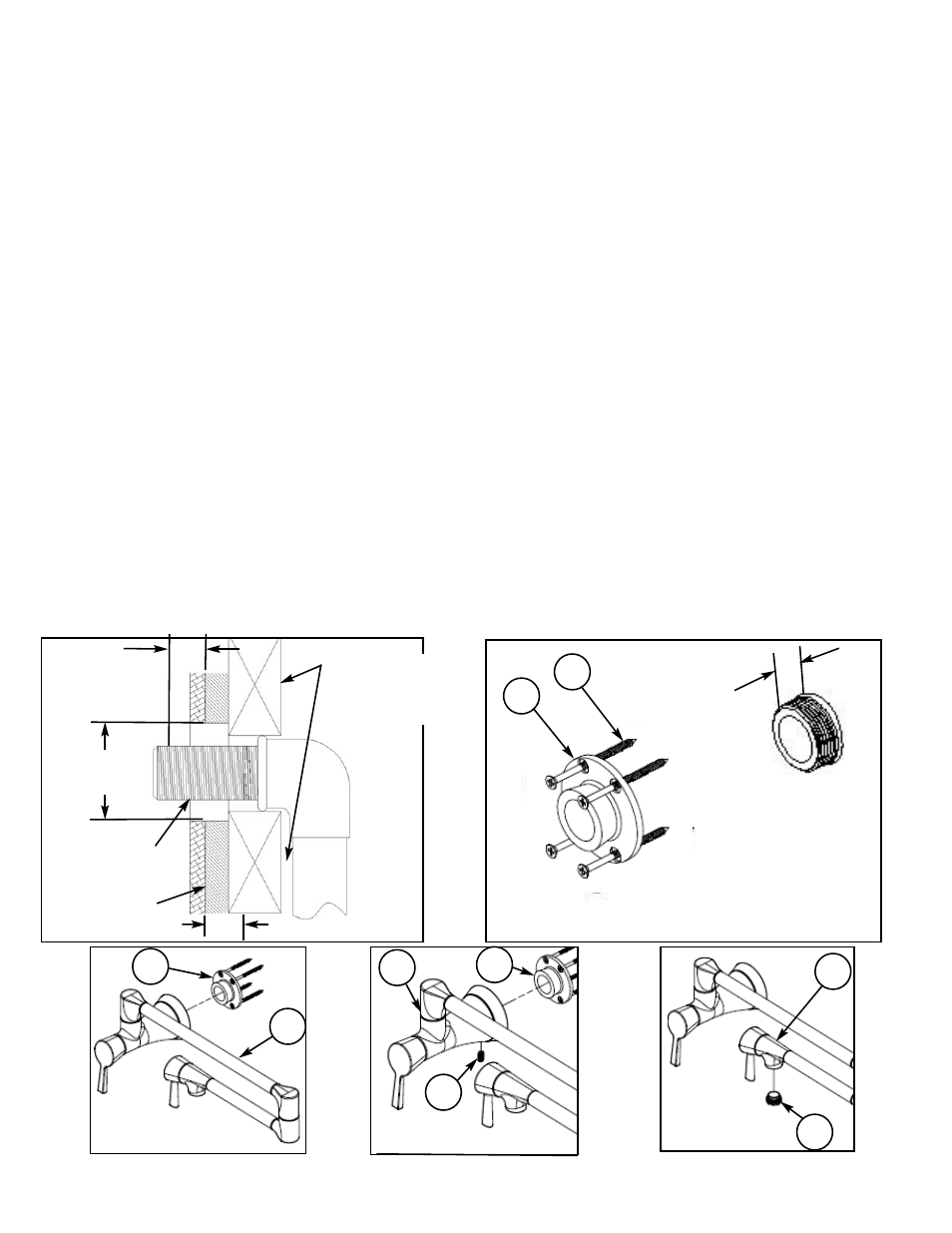

Figure 1
Stud supports
for mounting
Flange
1-1/2” MAX
Figure 2
1
2
1/2”
MAX
2001 CARNEGIE AVE, SANTA ANA CA 92705
(949) 417-5207
WWW.NEWPORTBRASS.COM
REV-NC
07/05/2012
4
3
Figure 4 Figure 5
5
4 1
7 Figure 6
4
