Fan Speed Control Knob
The fan speed control knob (B) is the center knob in the
climate control panel. Four (4) adjustable fan speeds are
provided;fan speed increases as the number on the knob
increases. The ignition switch must be in the ON
position for fan operation.
OFF
– Fan off
1 – Low speed
2 – Medium speed
3 – High speed
4 – Maximum speed
Mode Selection Knob
The mode selection knob (C) is the closest to the
passenger’s seat in the climate control panel. It controls
the direction of air flow through the ventilation system.
Face position
Air flow is directed toward the upper body
and face. Additionally, each outlet can be
controlled to direct the air discharged from
the outlet. (outlet port:
, )

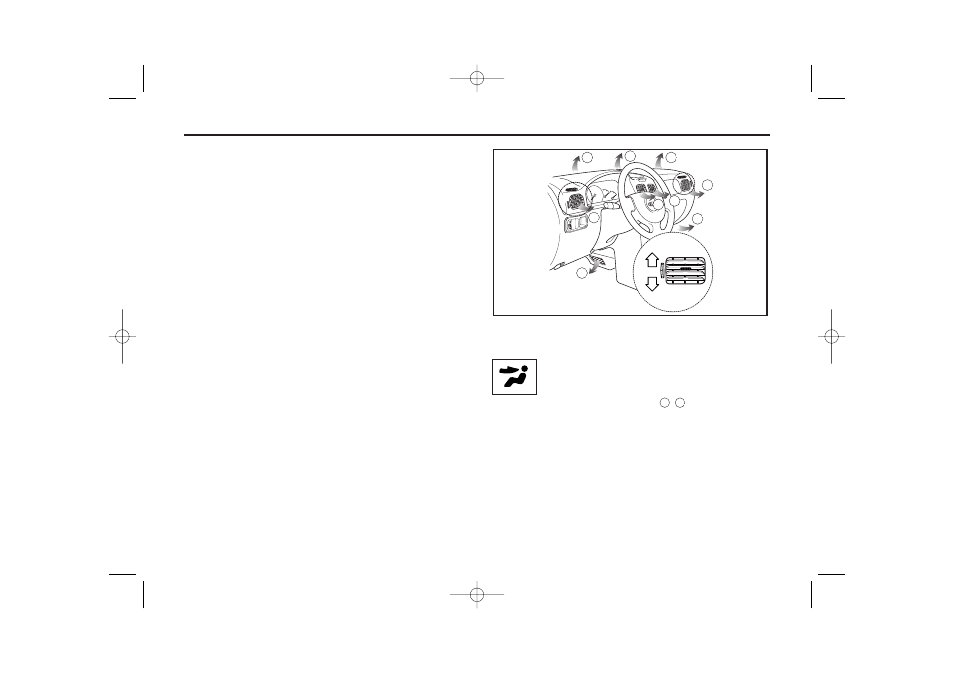

1BC102004H
