HANG DOORS

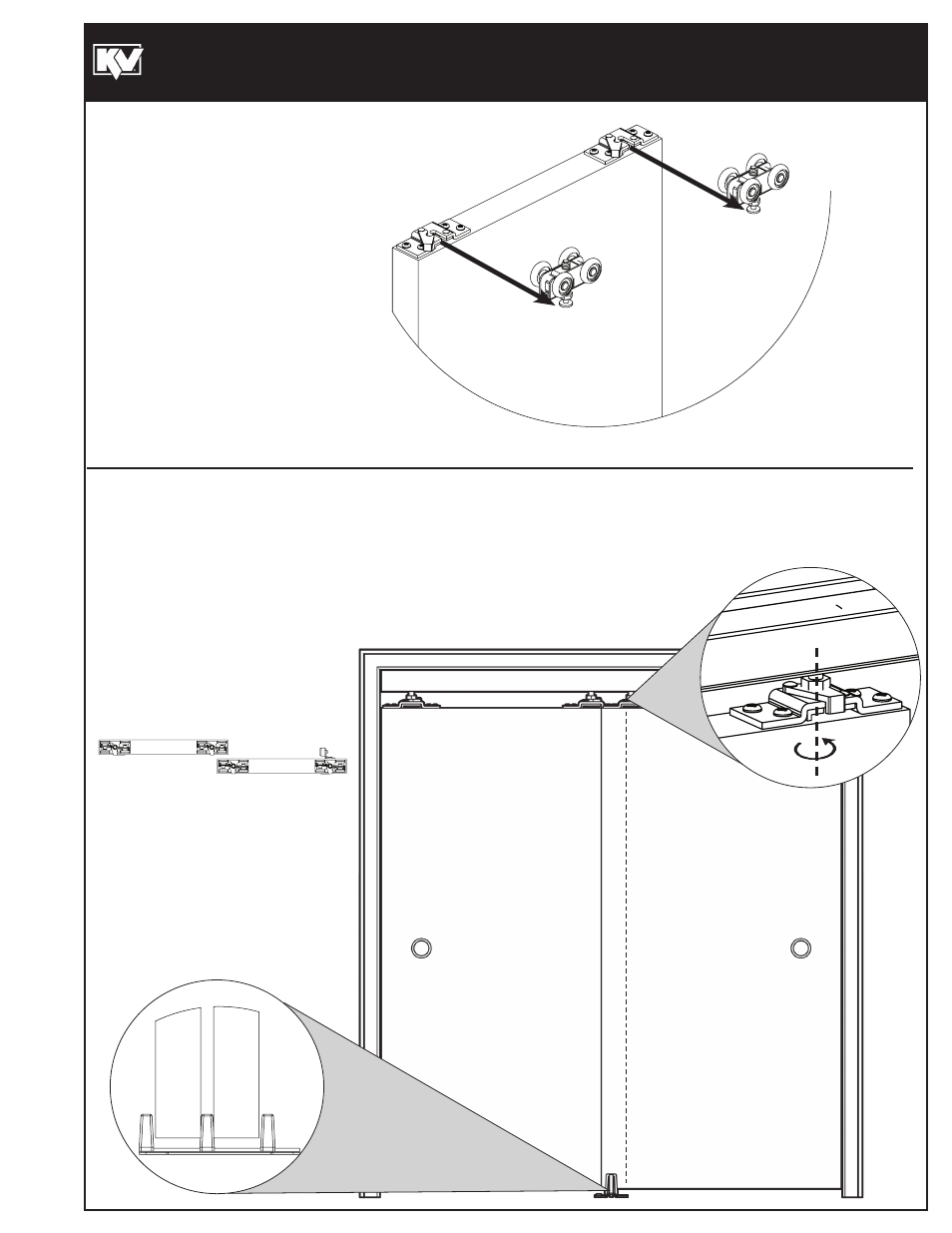

• Open quick release latches on brackets.
• Slide door onto carrier screws and close latch.
• Repeat for front door on front rail.
SLIDING DOOR HARDWARe - BY PASS
Assembly
Instructions
#310302_B (1013)
5
ADjuSt AND FINISH
• Adjust door to square with sides of door opening by rotating carrier adjustment screw.
• Install door guide where doors overlap. Use (#8 x 1-1/2") screws
(H)
to secure to the floor.
• Mount door stop to inside surface of front door. Place door stop so that
the front door does not cover rear door pull when opened. Drill
3/32" pilot holes and secure with (#8 x 3/4") screws.
(G)
