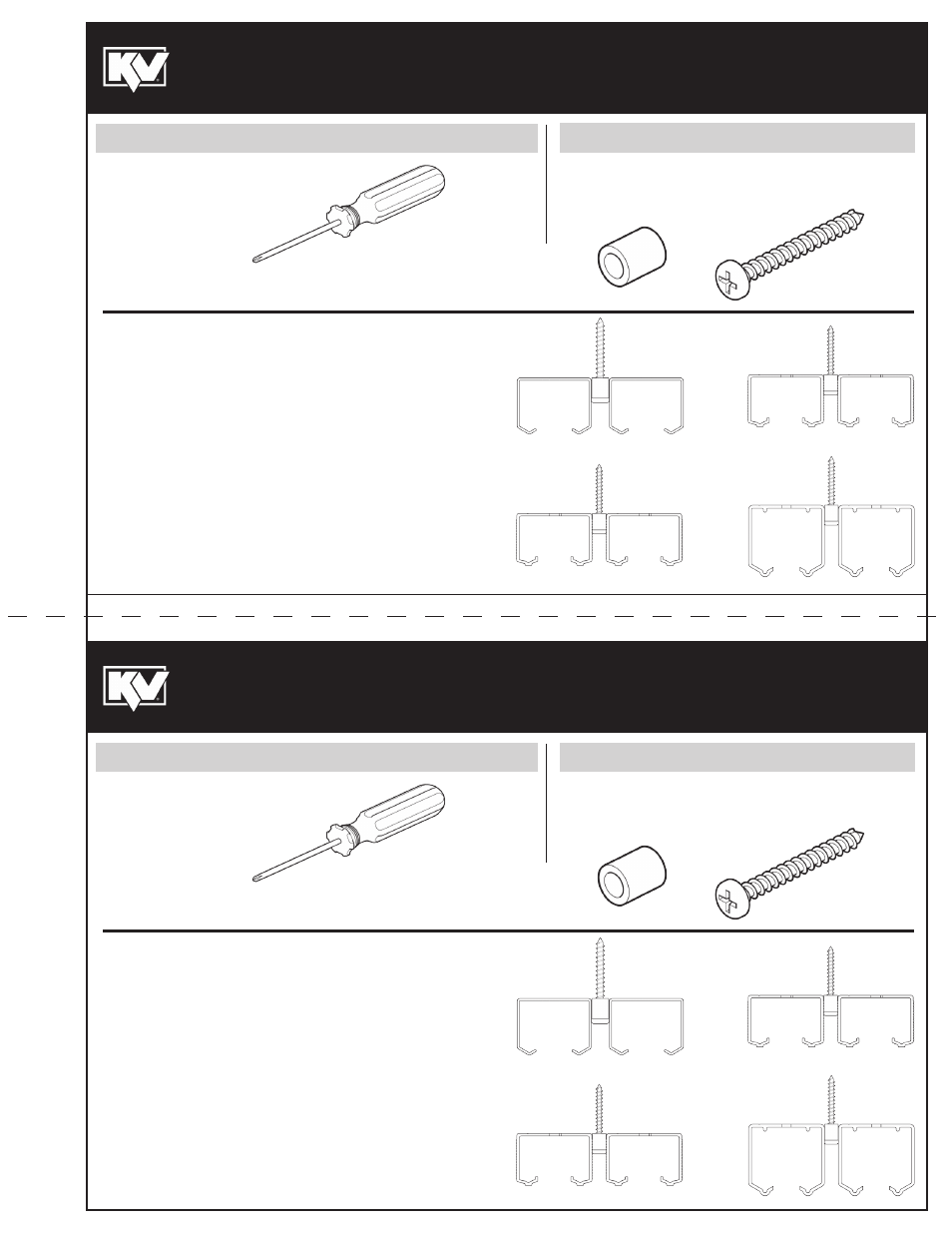

SLIDING DOOR HARDWARE - 2074 Spacer
SLIDING DOOR HARDWARE - 2074 Spacer
Assembly
Instructions
Assembly
Instructions
Phillips Screw Driver
Tournevis Phillips
Destornillador Phillips
Phillips Screw Driver
Tournevis Phillips
Destornillador Phillips
Tools Required • Outils requis • Herramientas requeridos
Tools Required • Outils requis • Herramientas requeridos
CONTENTS
QTY
A. 5/16" Plastic Bushing
2
B. #8 x 1-1/2" Pan Head Screw
2
CONTENTS
QTY
A. 5/16" Plastic Bushing
2
B. #8 x 1-1/2" Pan Head Screw
2
#310366_A (0413)
#310366_A (0413)
The spacer kit is used to align two box tracks in By-Pass applications
to use hardware for specific door thickness.
A. BYP-75S - Used for 1-3/8" door thickness.
B. BYP-125A - Used for 1-3/4" door thickness.
C. BYP-150A
- Used for 1-3/4" door thickness.
D. BYP-250A - Used for 1-3/4" door thickness.
1. Screw a plastic bushing at center line of header, about 5" from
each end. Line up one track to the plastic bushing and secure
the track. Line up second track on opposite side of bushing
and secure the track.
The spacer kit is used to align two box tracks in By-Pass applications
to use hardware for specific door thickness.
A. BYP-75S - Used for 1-3/8" door thickness.
B. BYP-125A - Used for 1-3/4" door thickness.
C. BYP-150A
- Used for 1-3/4" door thickness.
D. BYP-250A - Used for 1-3/4" door thickness.
1. Screw a plastic bushing at center line of header, about 5" from
each end. Line up one track to the plastic bushing and secure
the track. Line up second track on opposite side of bushing
and secure the track.
A.
A.
C.
C.
B.
B.
D.
D.
A.
A.
B.
B.
